Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2007
>>
Camry V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
N3 - N29
N3 - N29

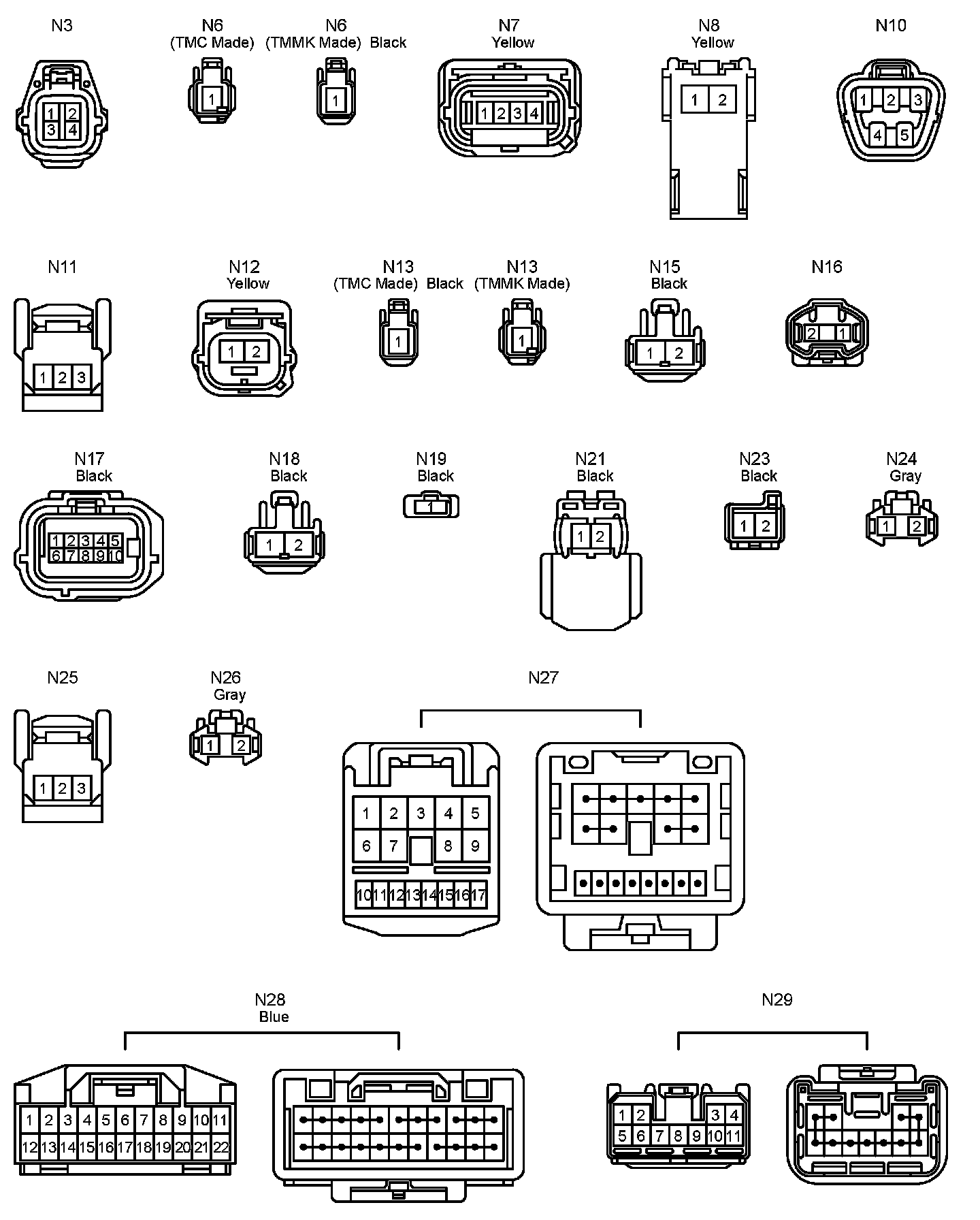

N3 - N29:
