Audio System With 8 Speaker Without Navigation

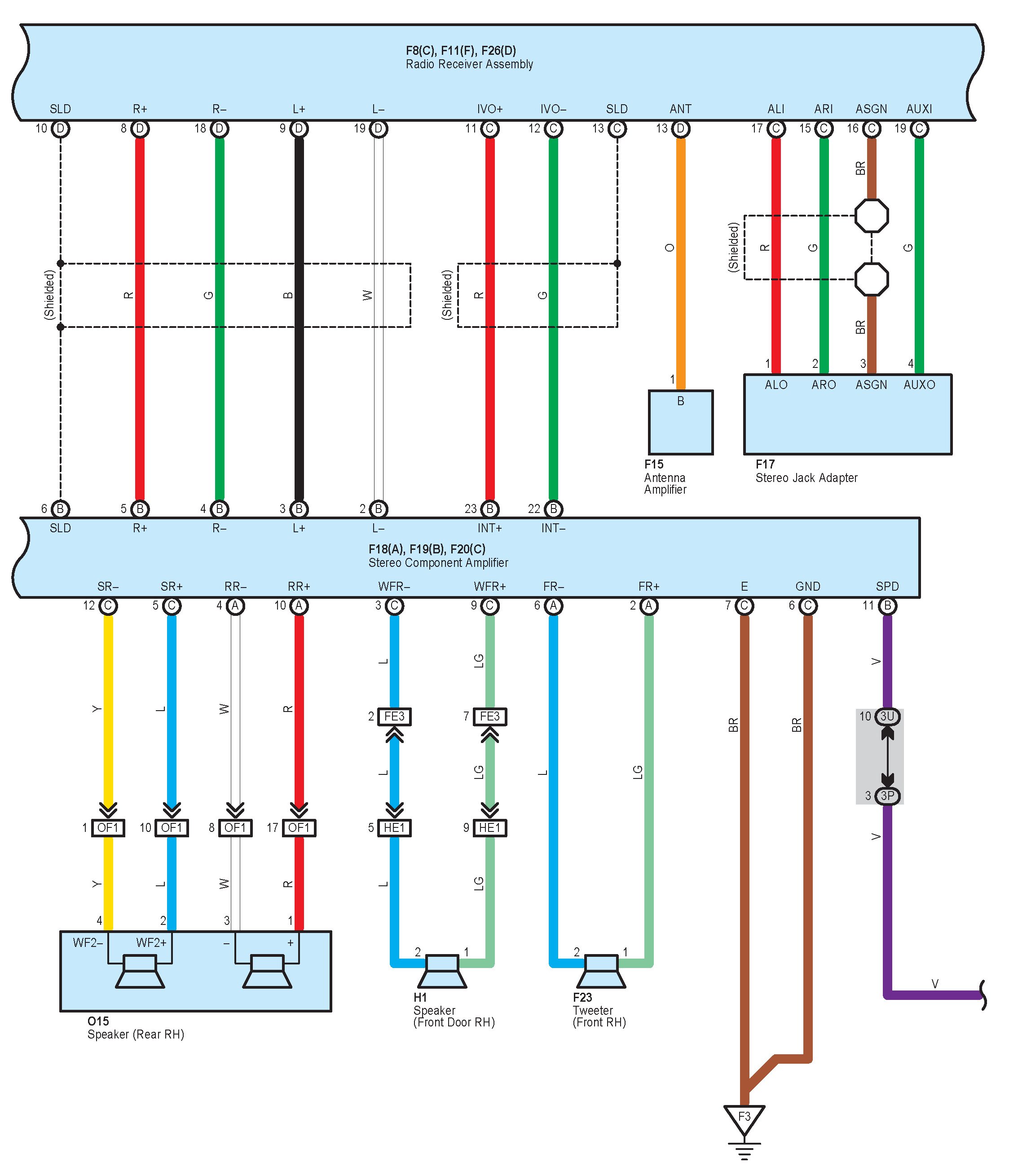

Audio System With 8 Speaker Without Navigation Part 1:

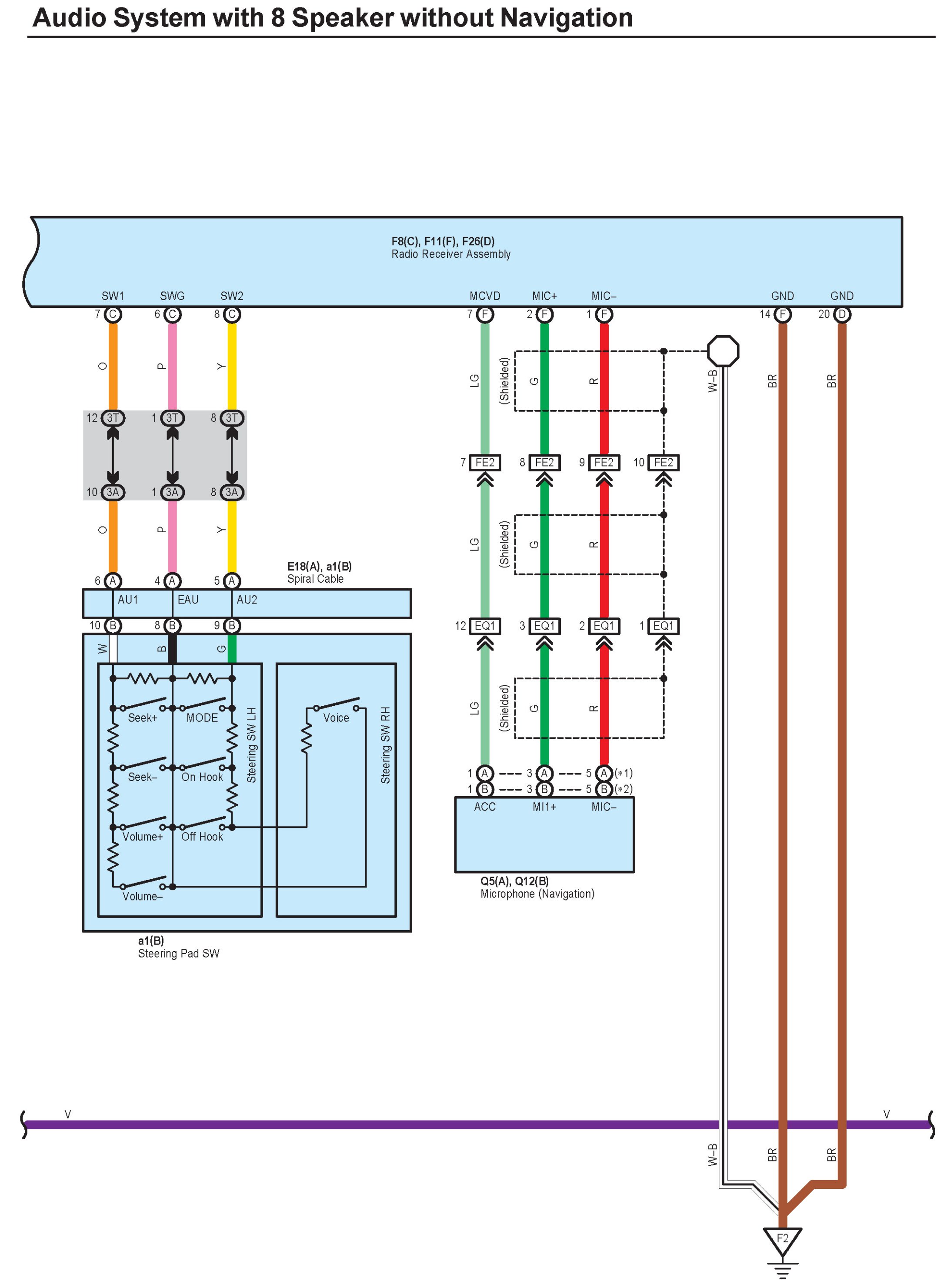

Audio System With 8 Speaker Without Navigation Part 2:




Audio System With 8 Speaker Without Navigation Part 3:




Audio System With 8 Speaker Without Navigation Part 4:




Diagram Legend:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
