Navigation System and Audio System With 8 Speaker

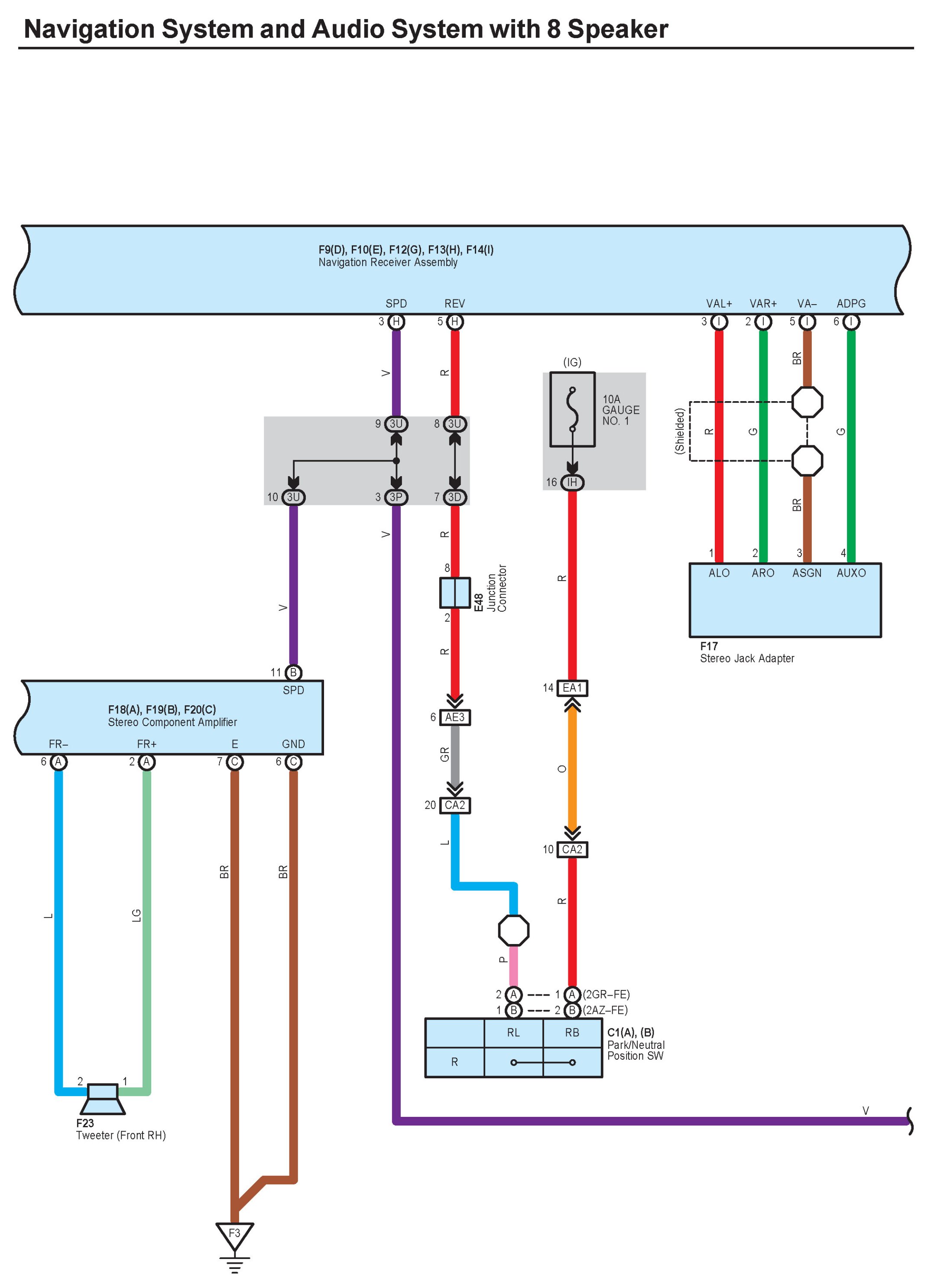

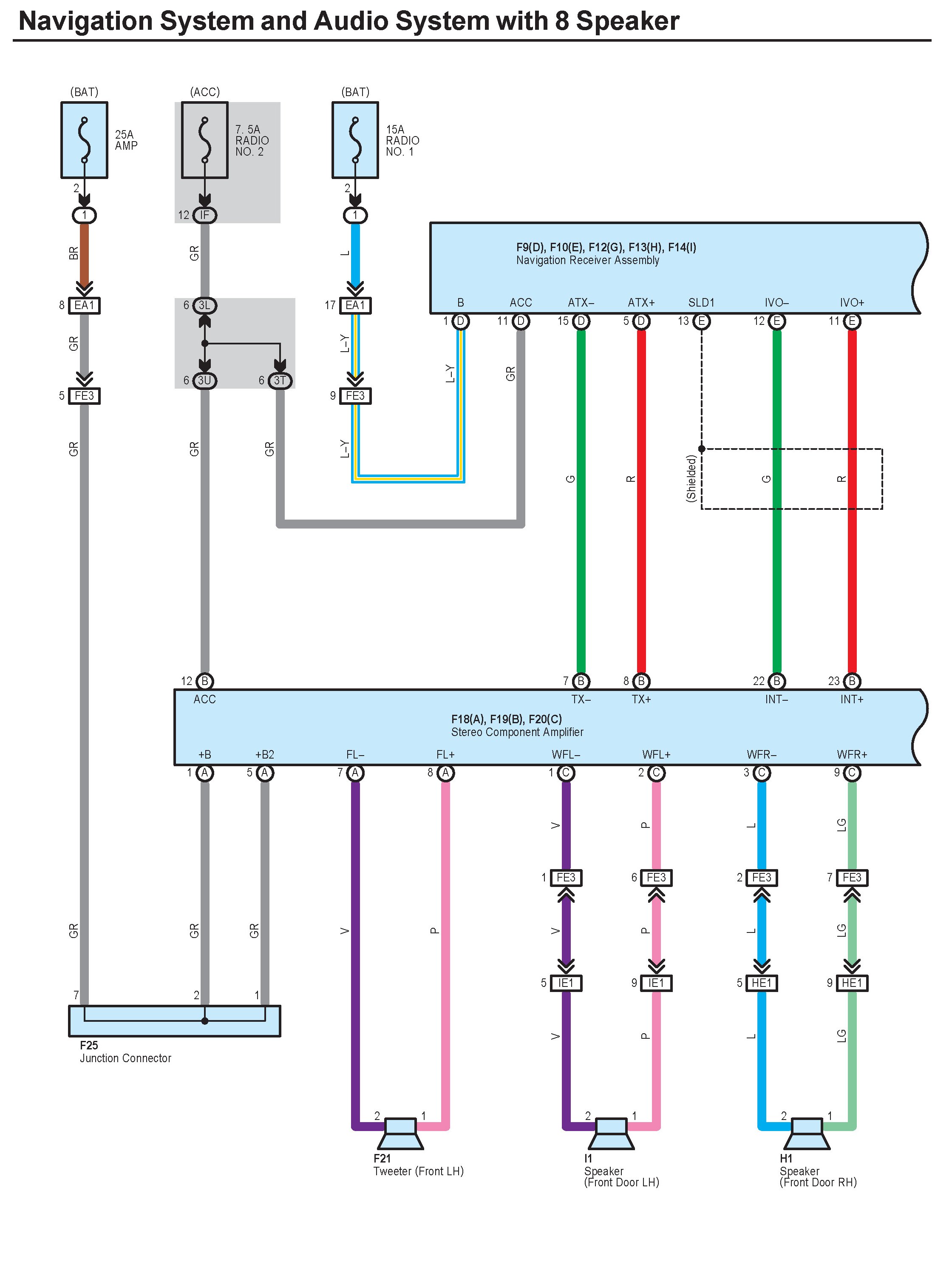

Navigation System And Audio System With 8 Speaker Part 1:

Navigation System And Audio System With 8 Speaker Part 2:

Navigation System And Audio System With 8 Speaker Part 3:

Navigation System And Audio System With 8 Speaker Part 4:

Navigation System And Audio System With 8 Speaker Part 5:

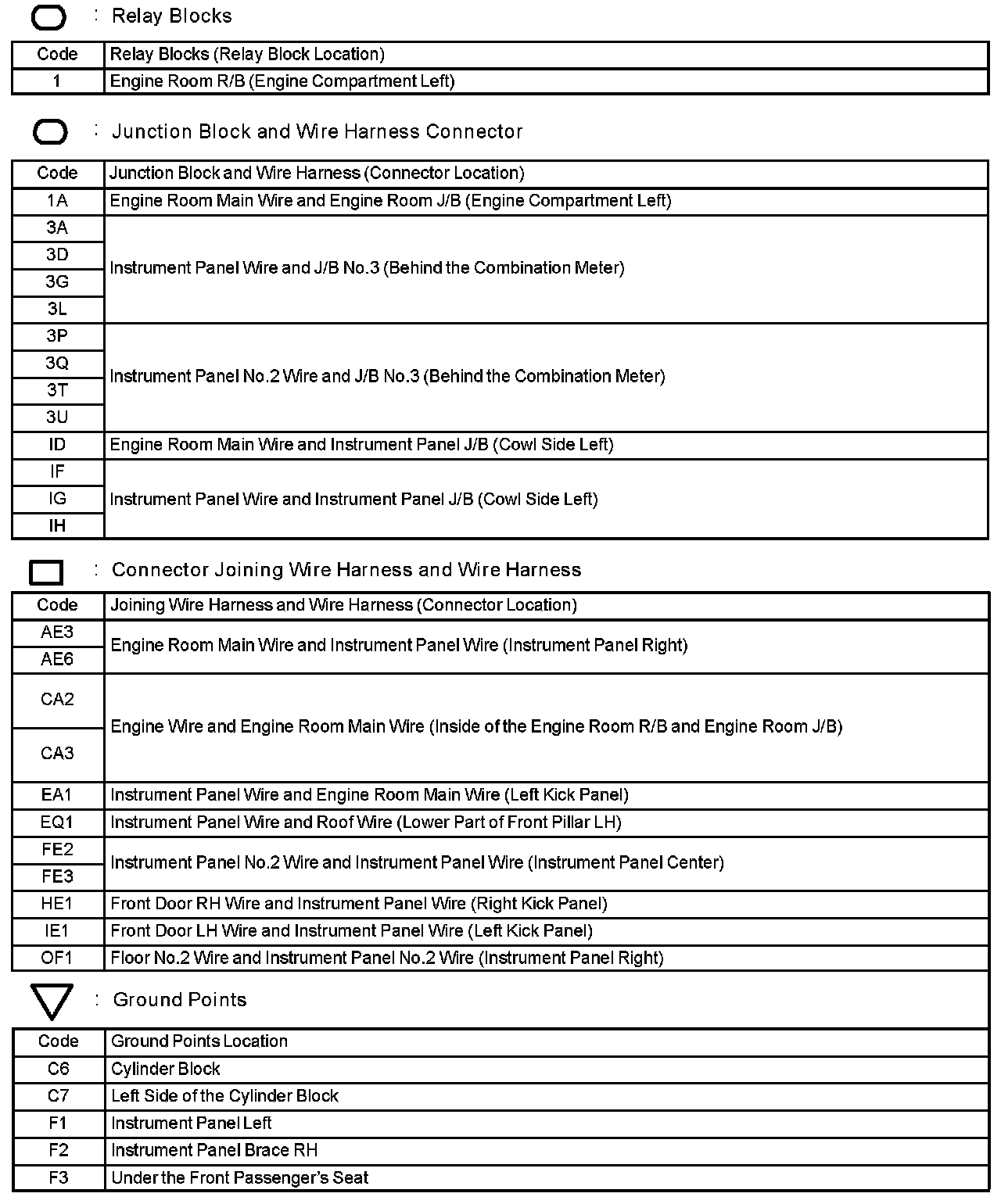

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
