Trunk / Liftgate

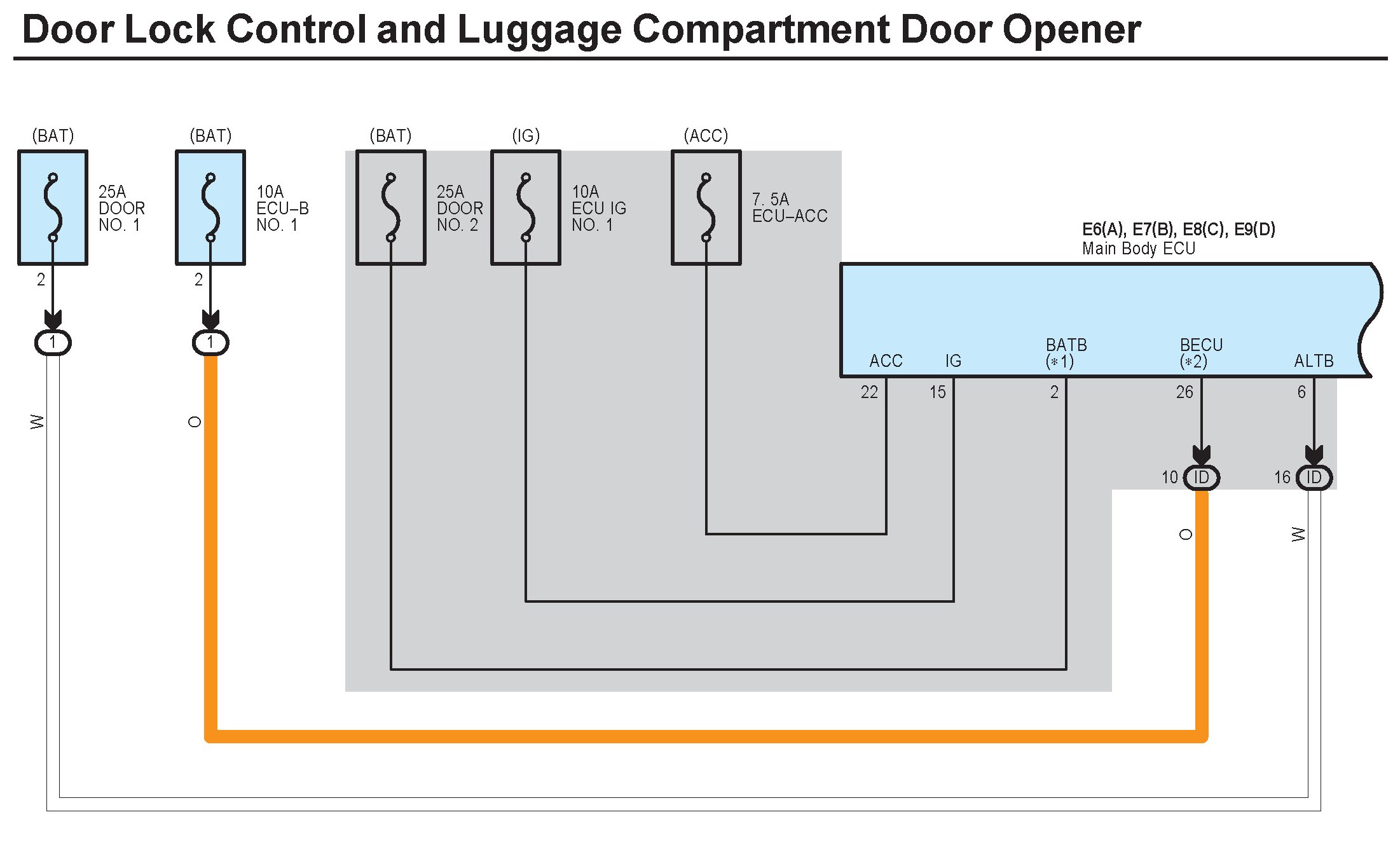

Door Lock Control And Luggage Compartment Door Opener Part 1:

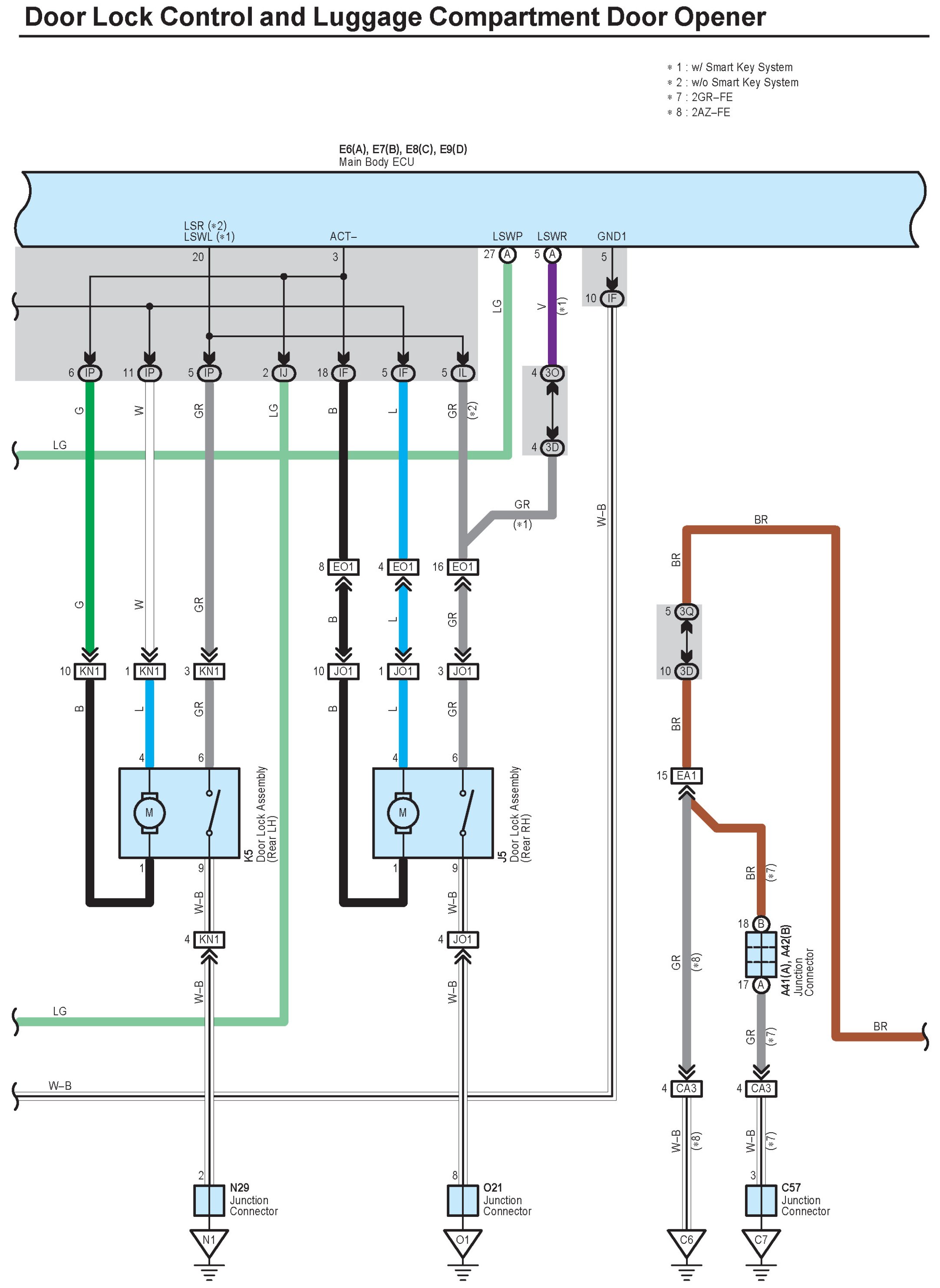

Door Lock Control And Luggage Compartment Door Opener Part 2:

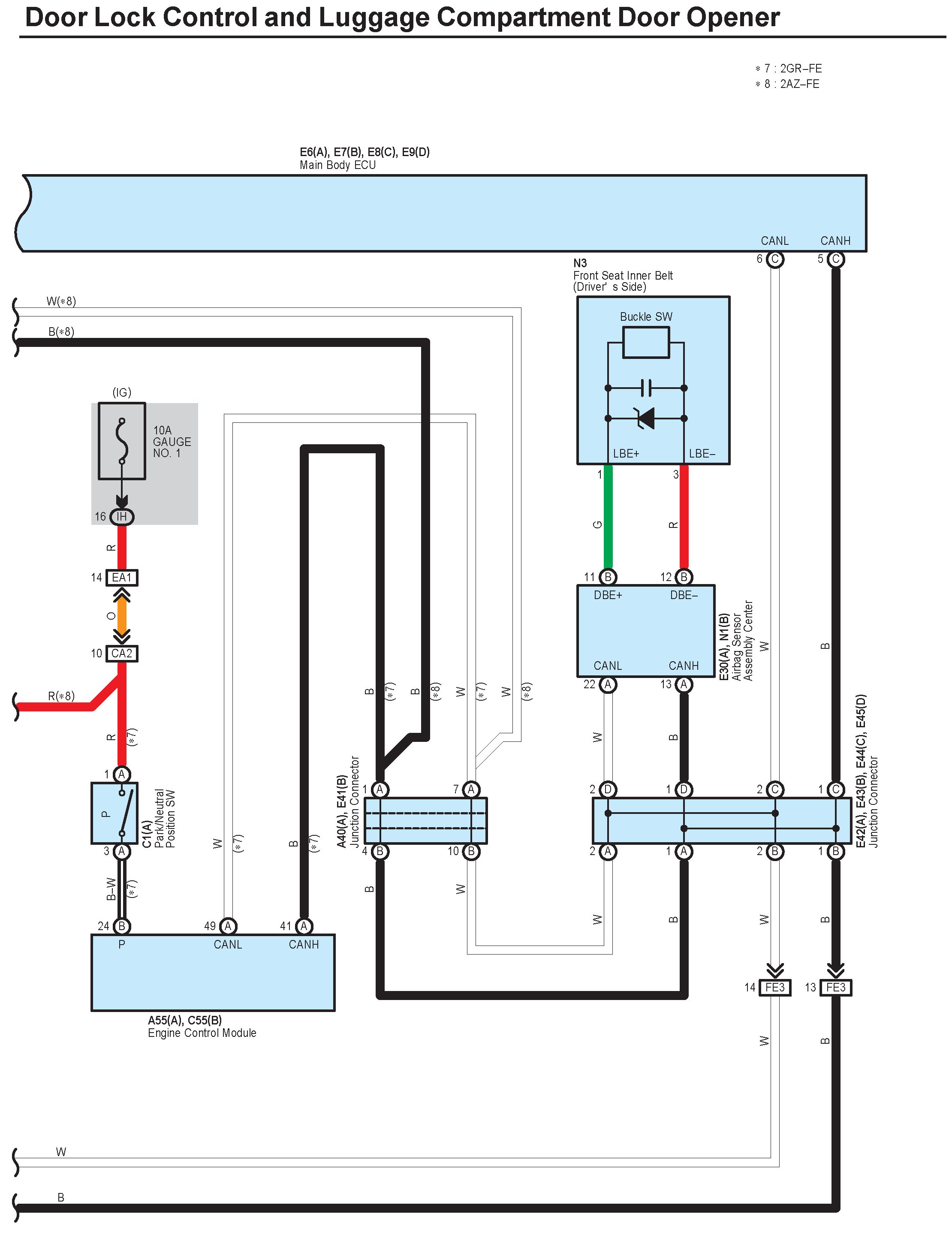

Door Lock Control And Luggage Compartment Door Opener Part 3:

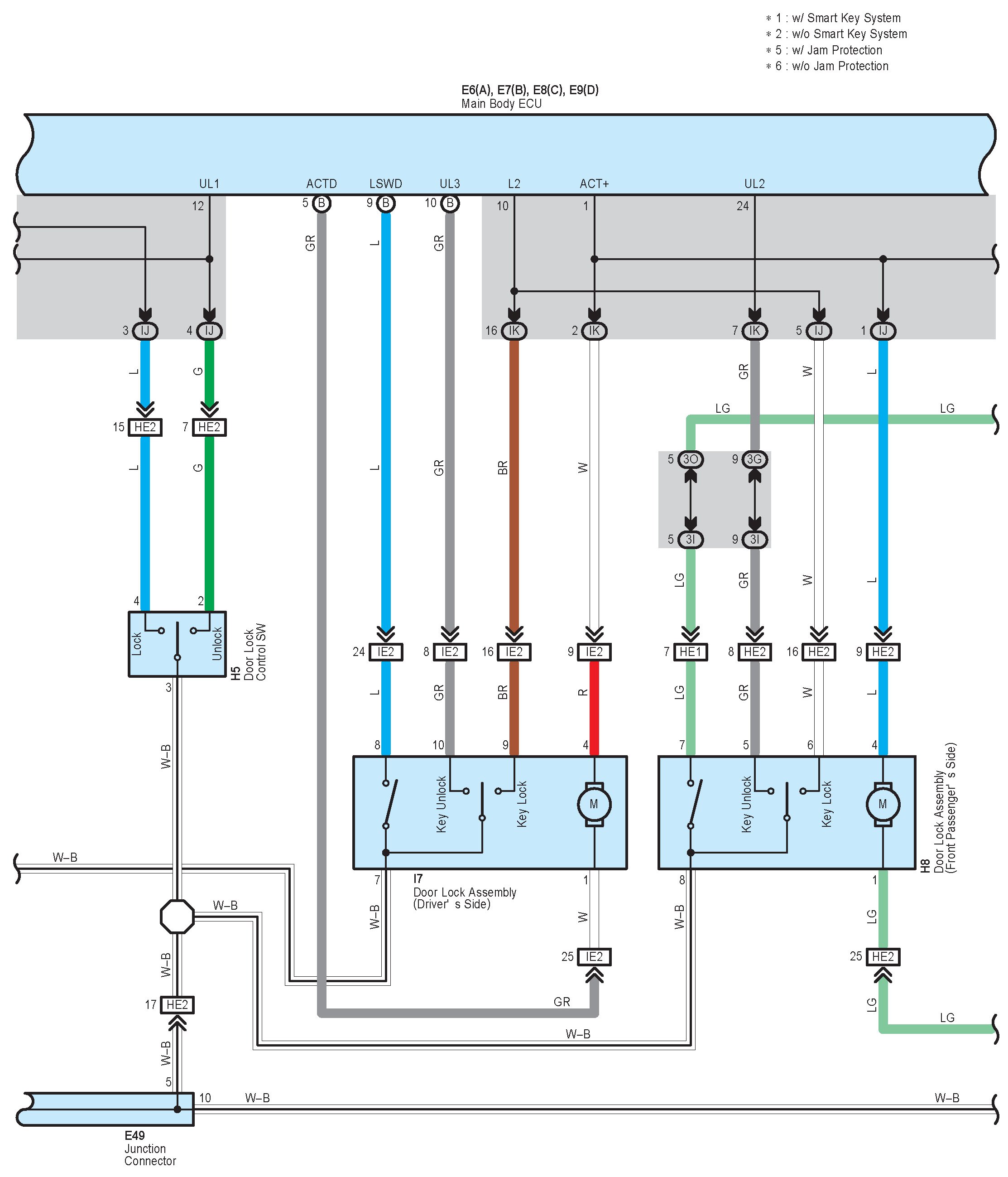

Door Lock Control And Luggage Compartment Door Opener Part 4:

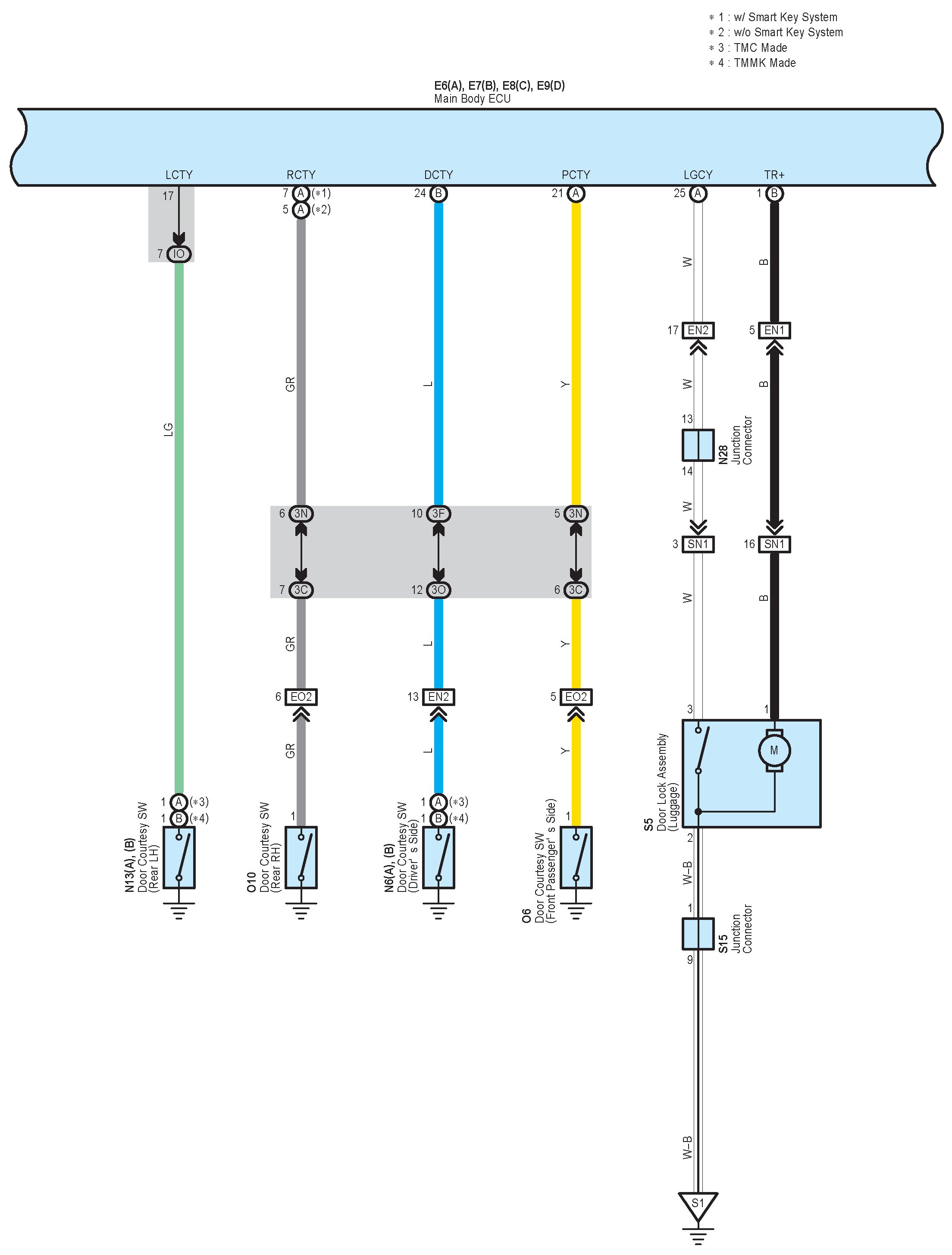

Door Lock Control And Luggage Compartment Door Opener Part 5:

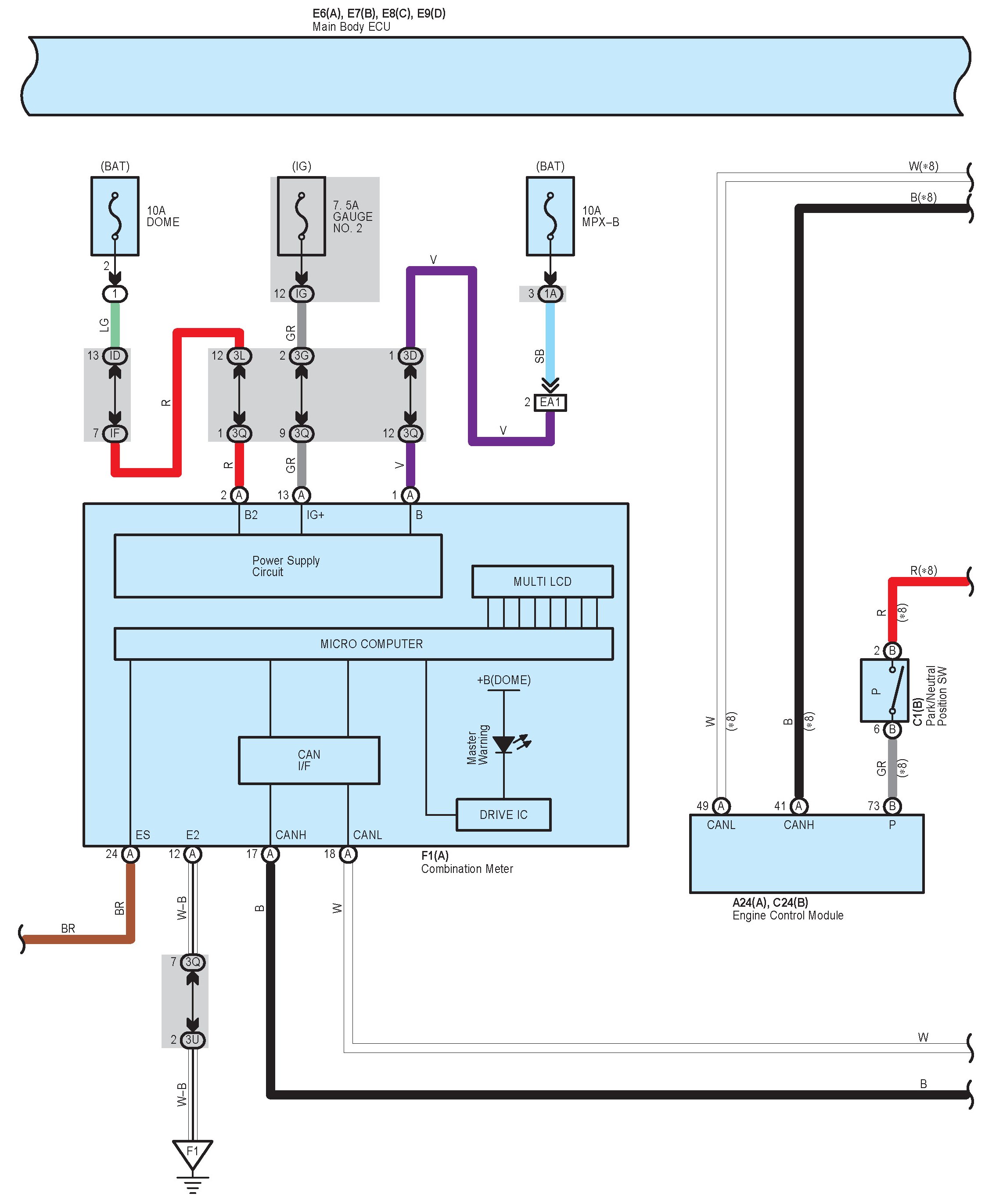

Door Lock Control And Luggage Compartment Door Opener Part 6:

Door Lock Control And Luggage Compartment Door Opener Part 7:

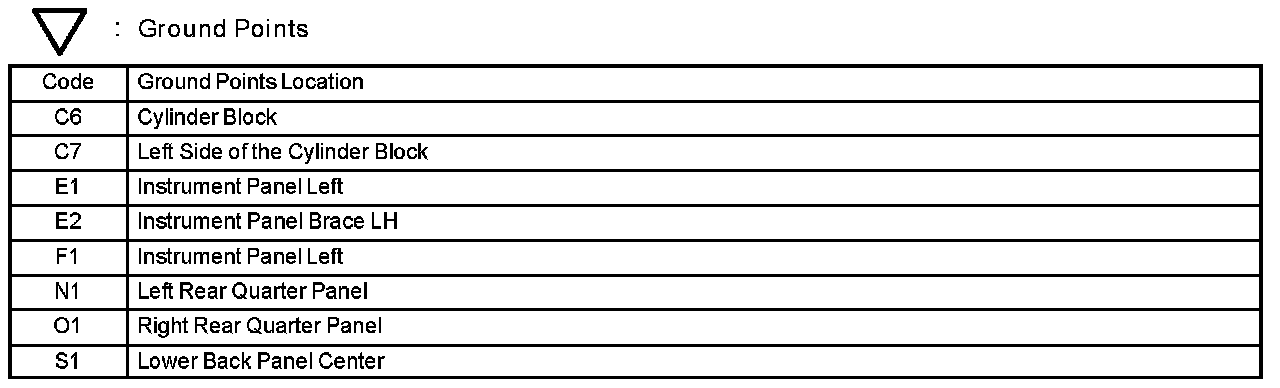

Diagram Legend Part 1:

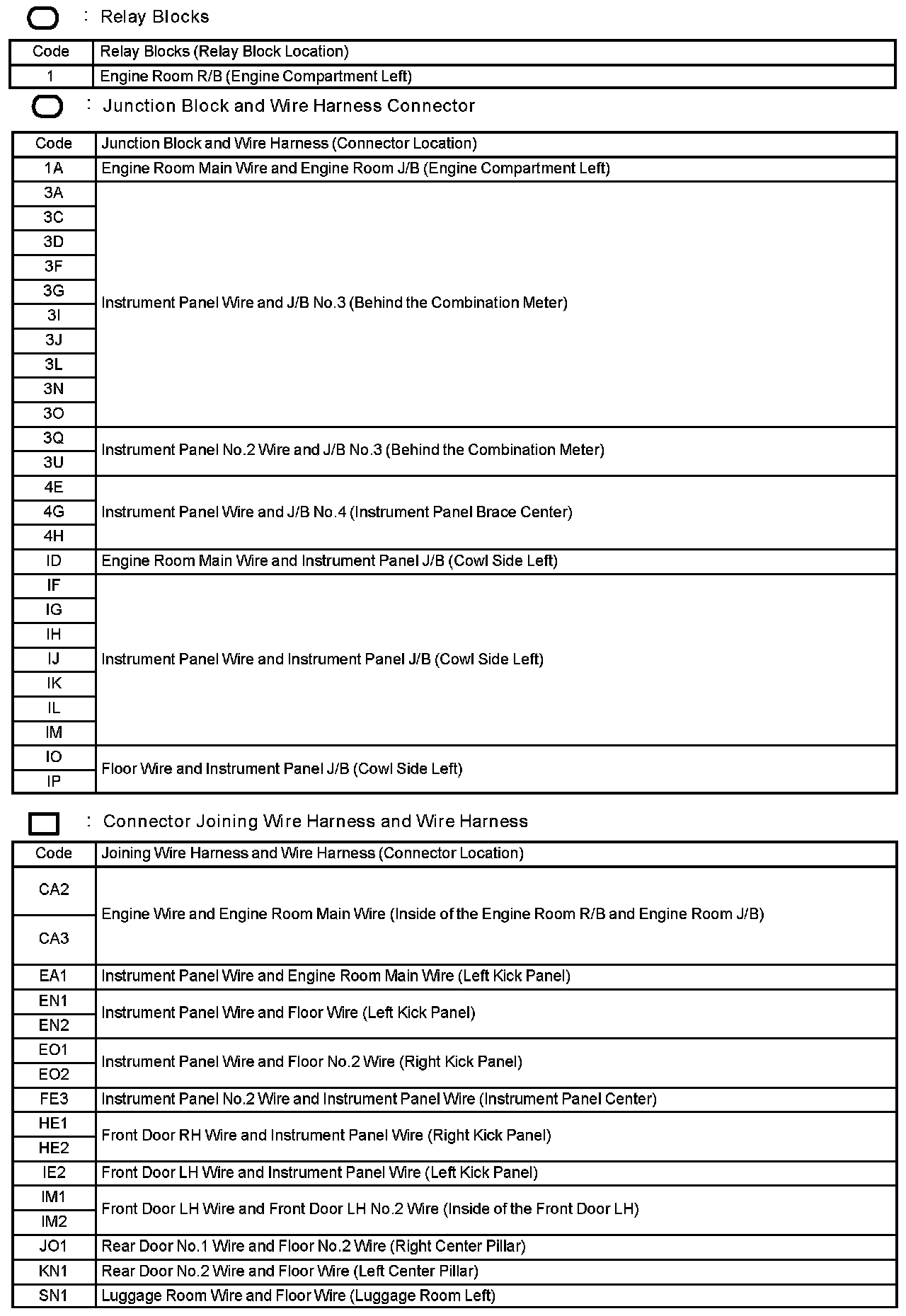

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
