Air Bag

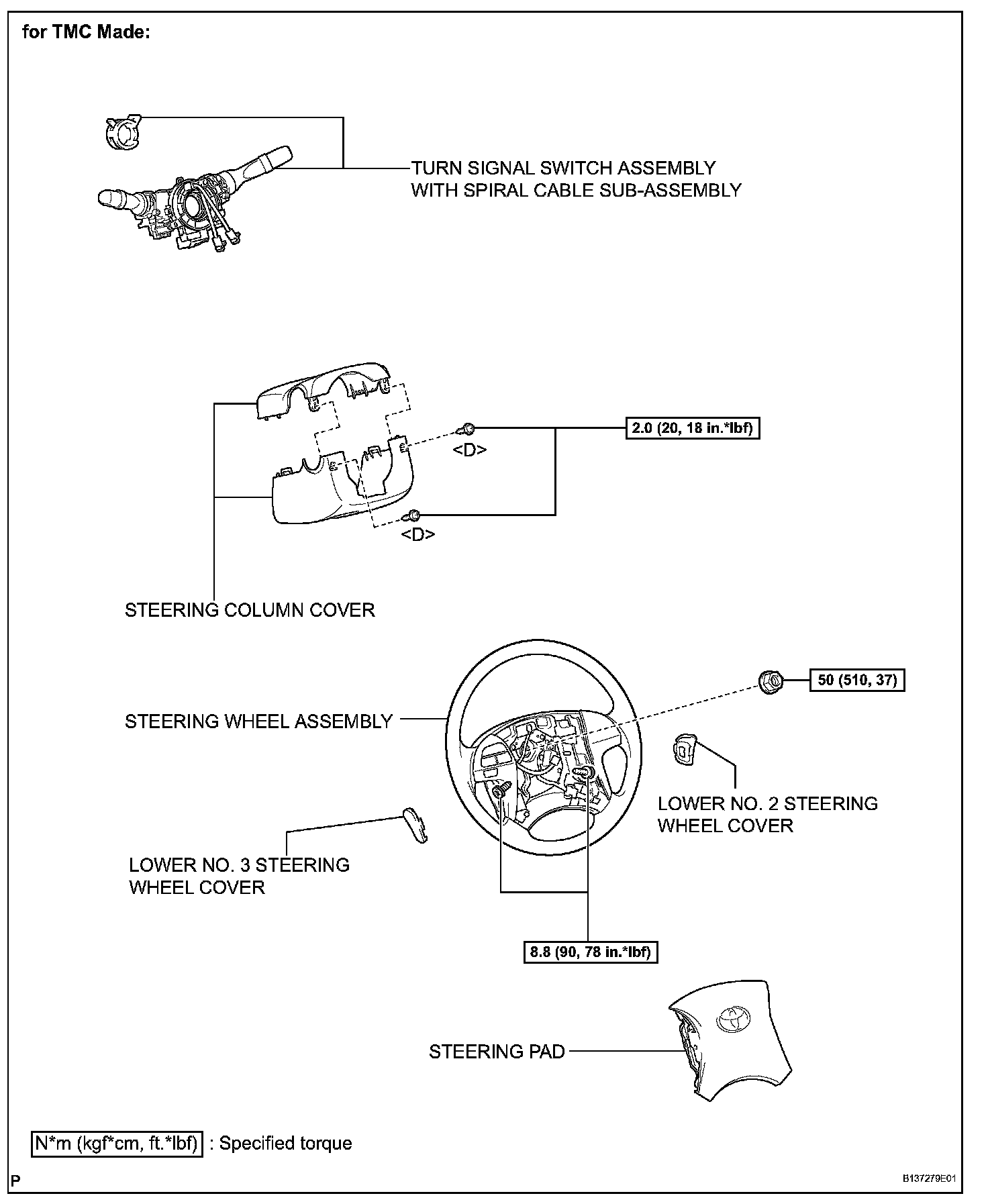

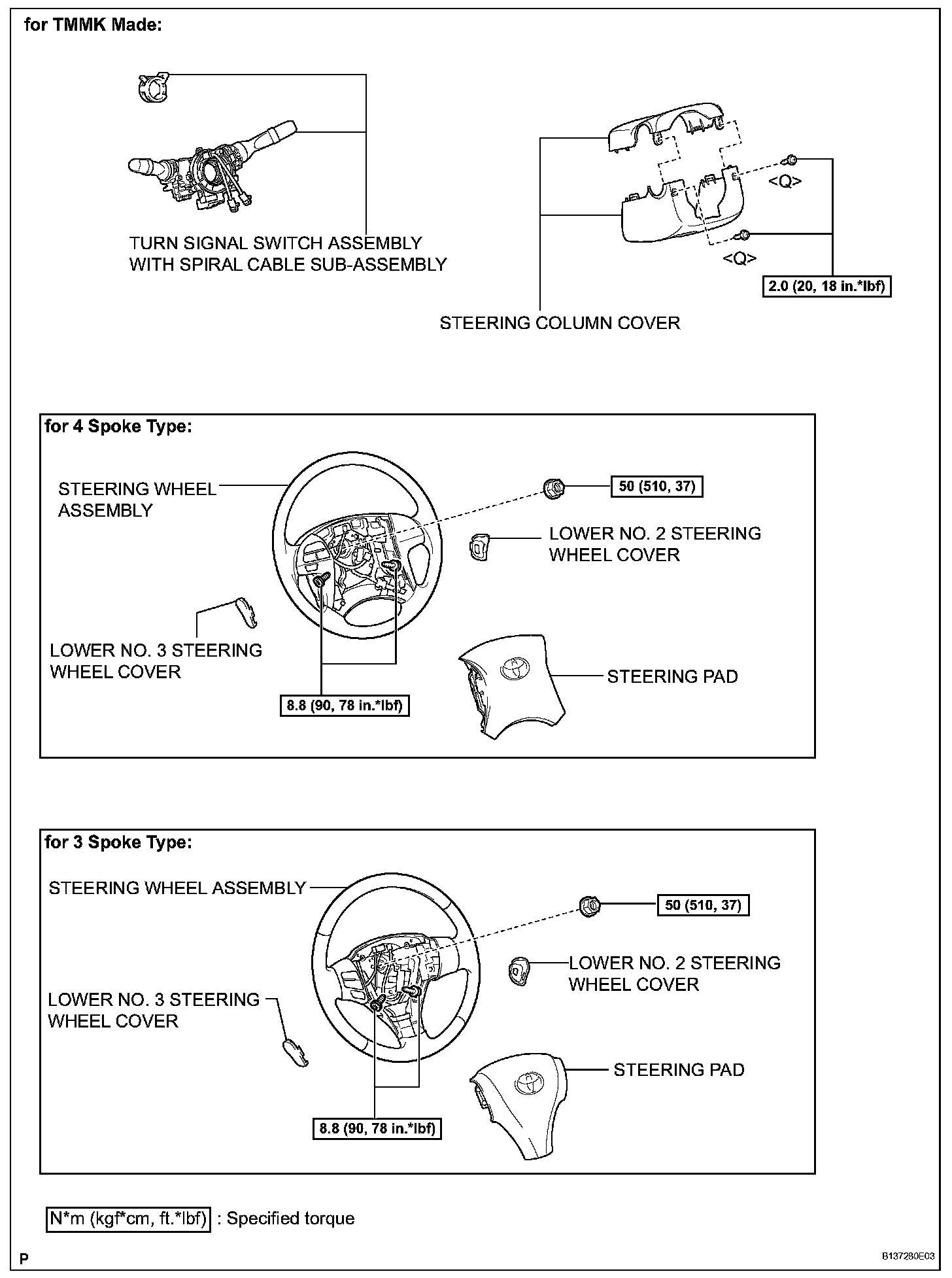

Steering Pad:

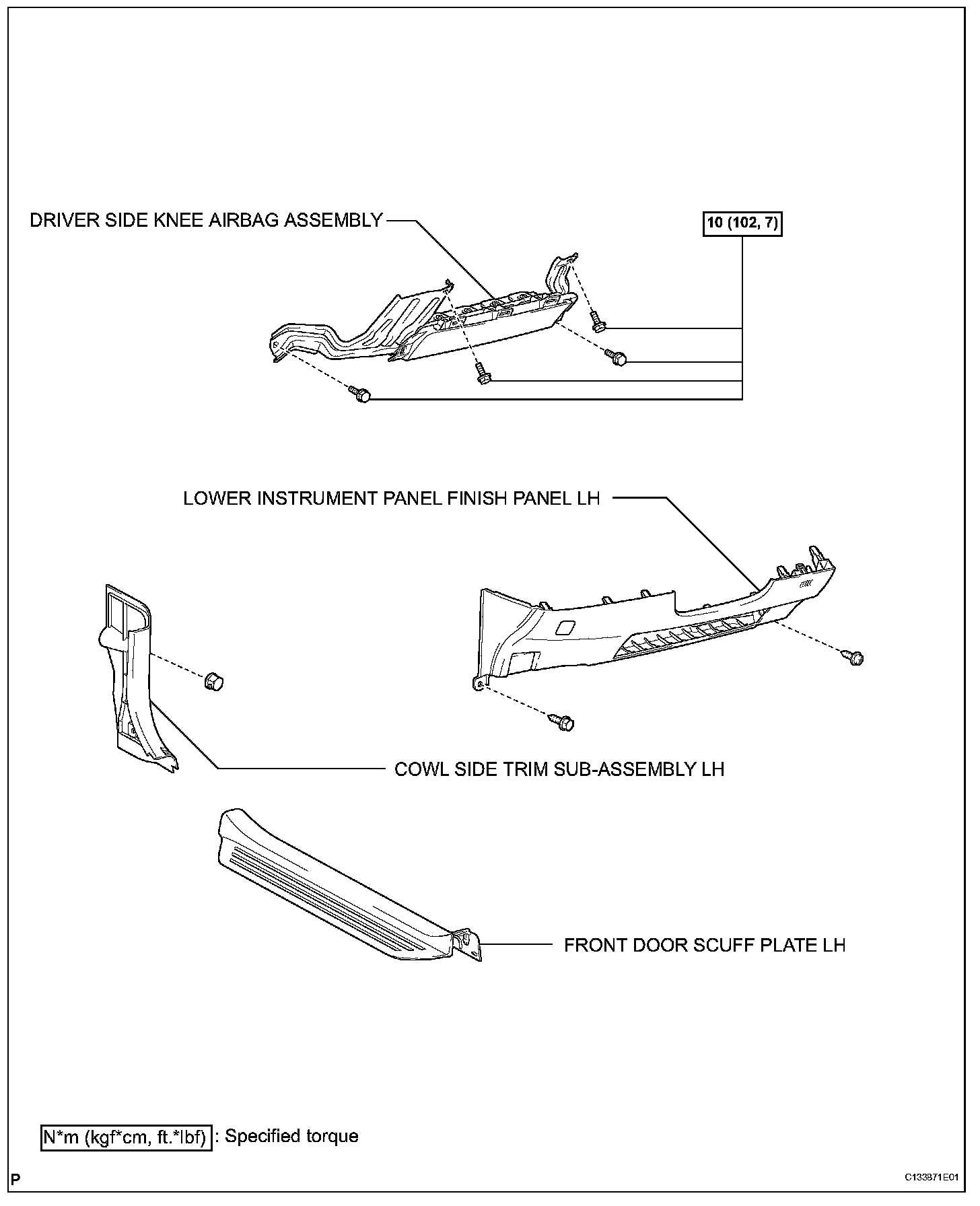

Driver Side Knee Airbag Assembly:

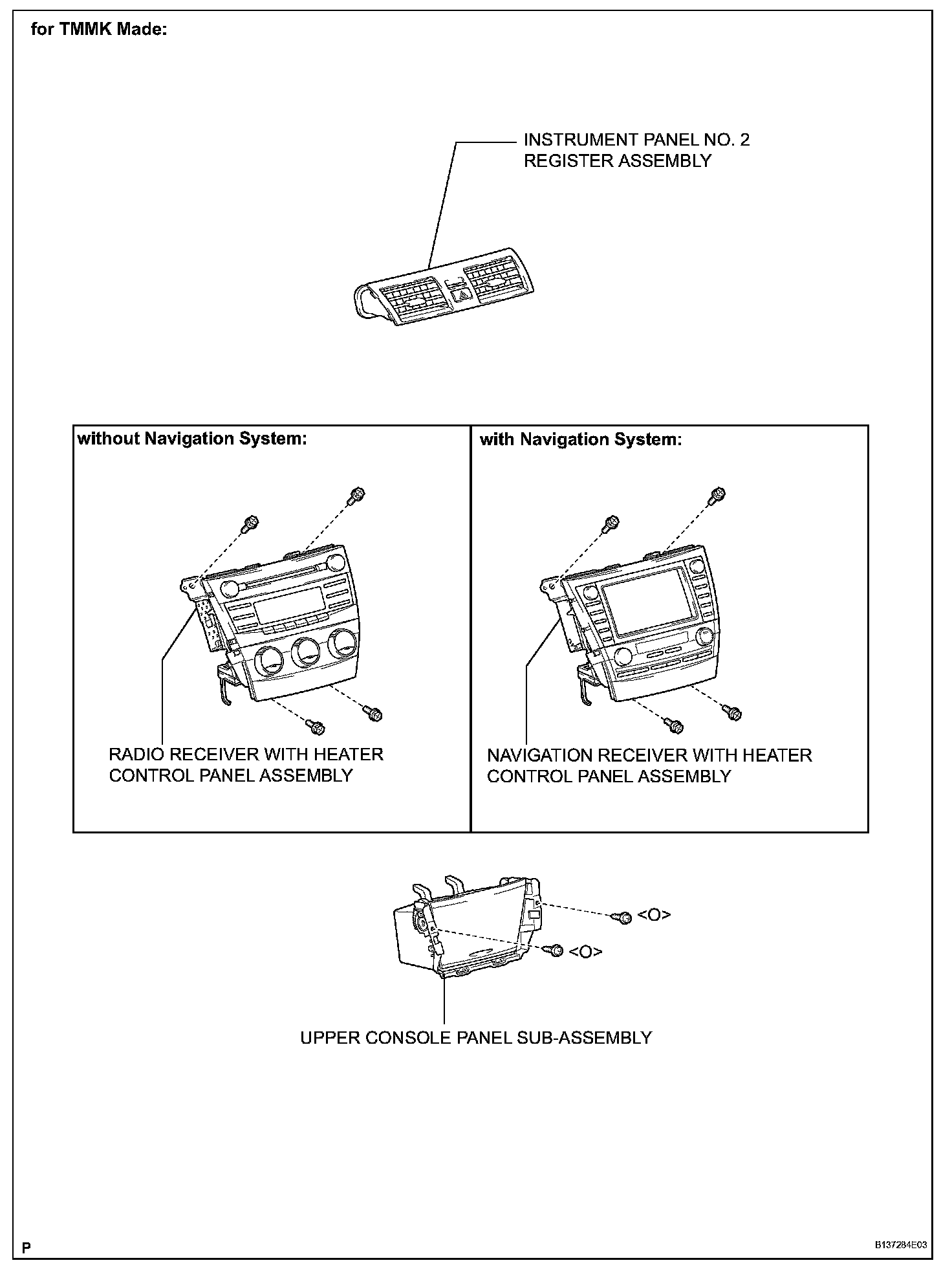

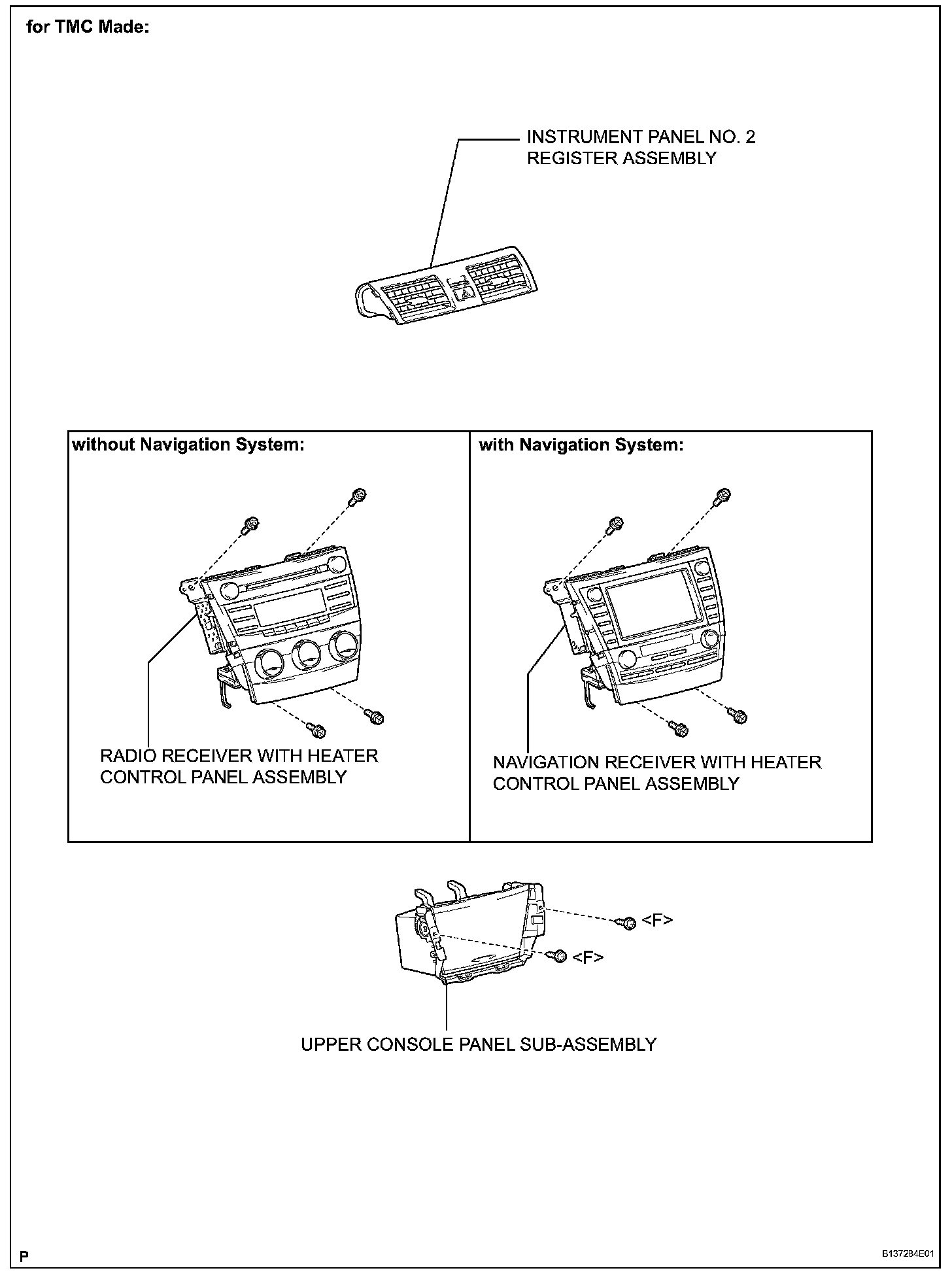

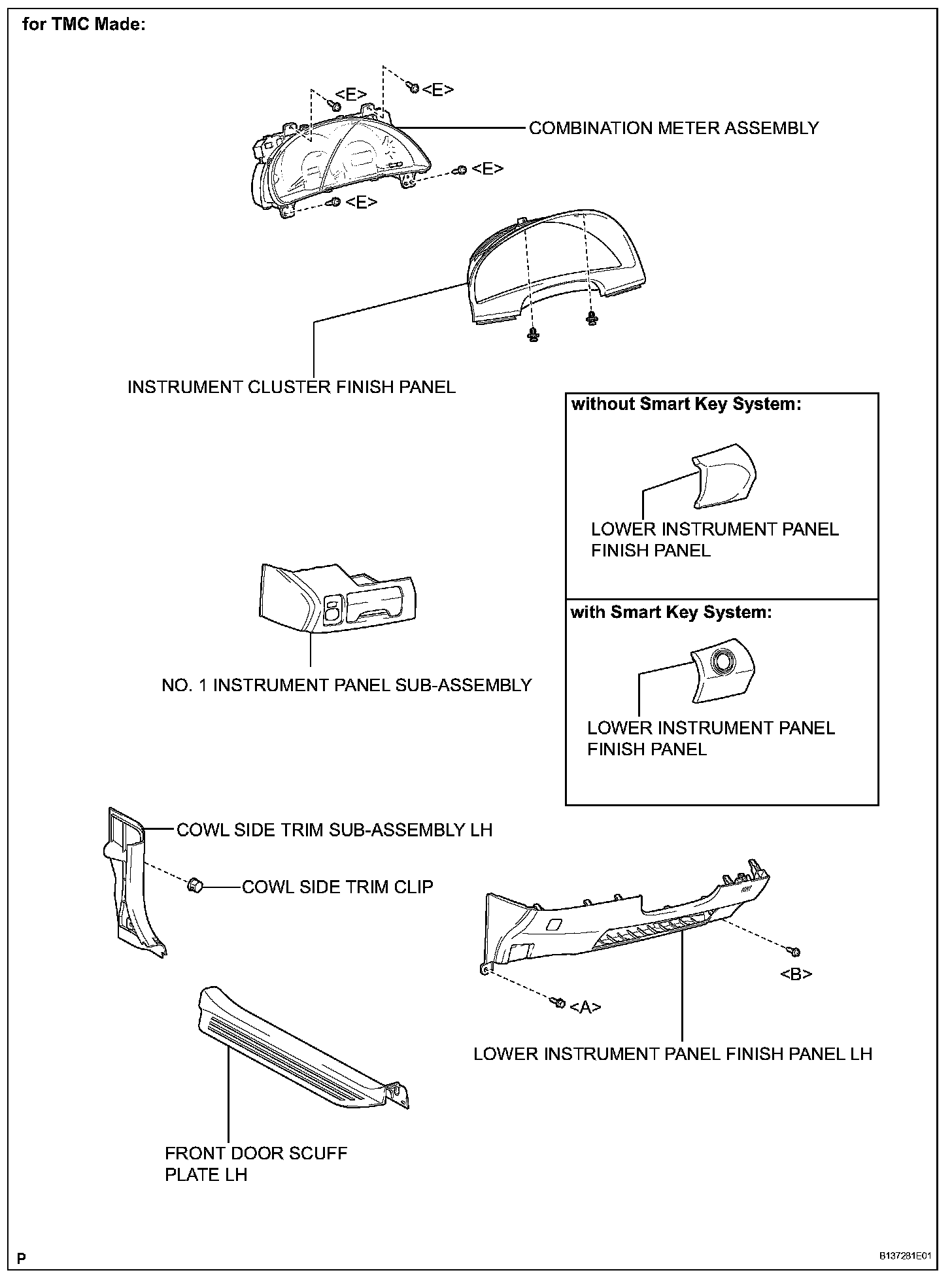

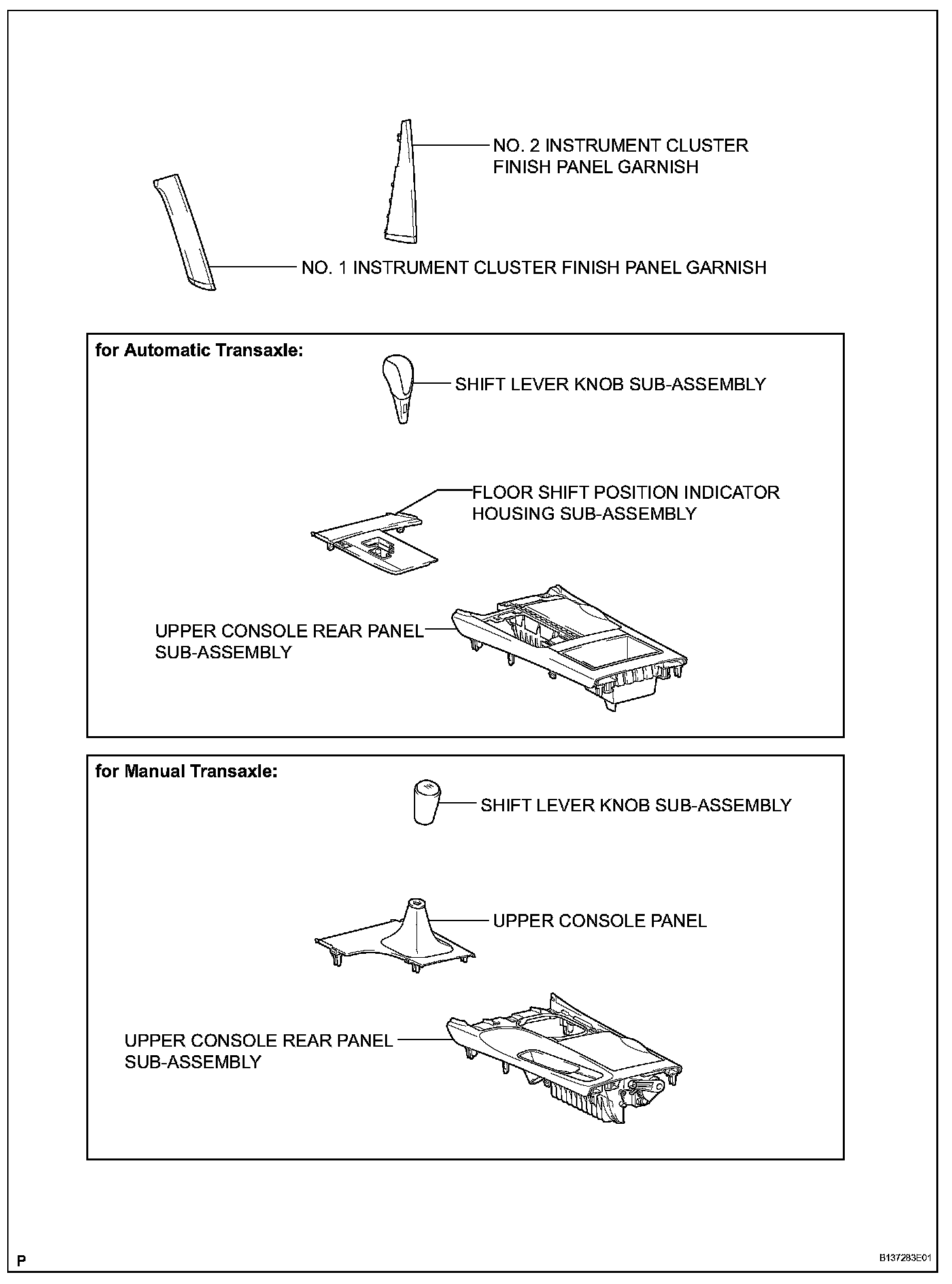

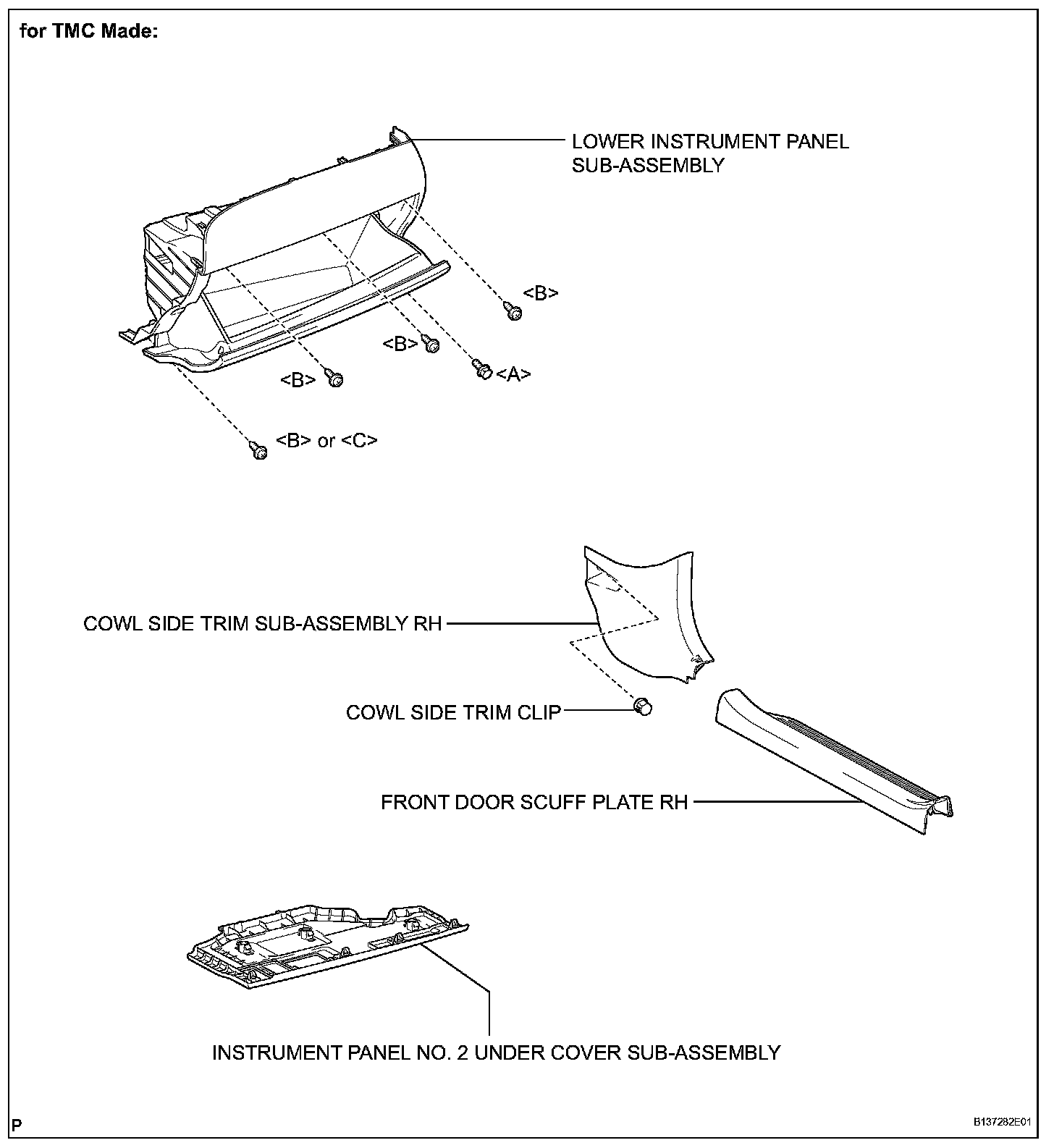

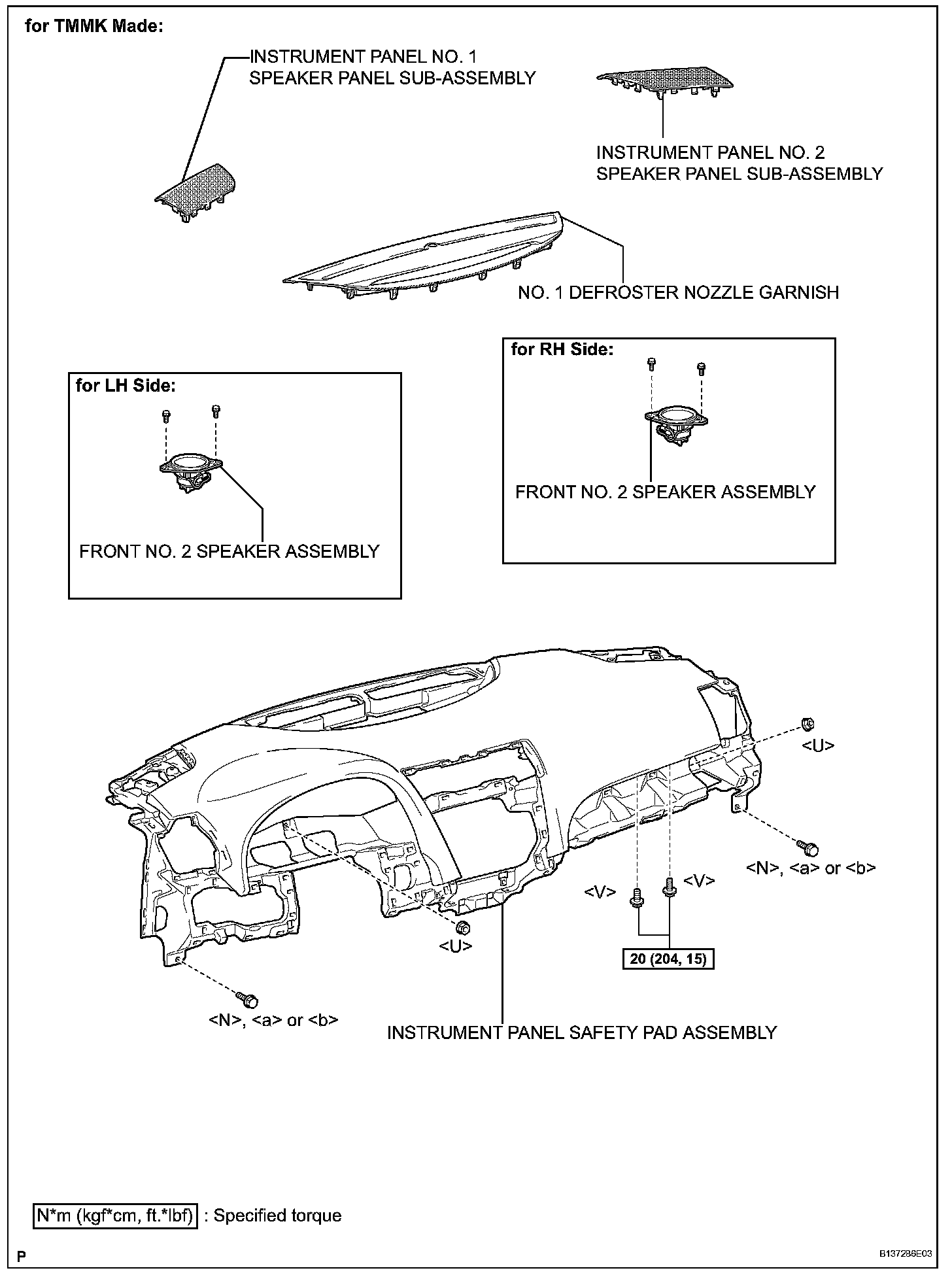

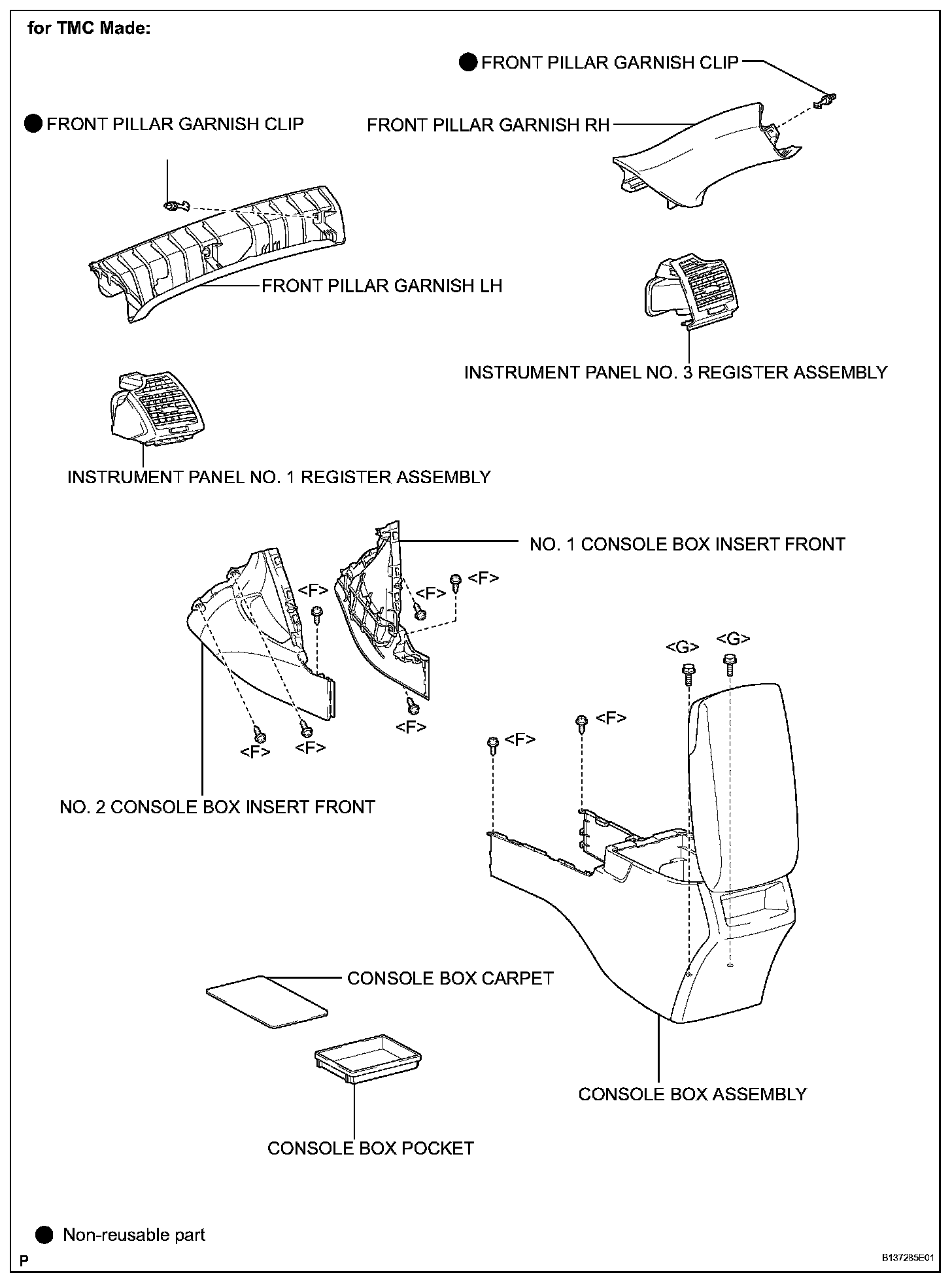

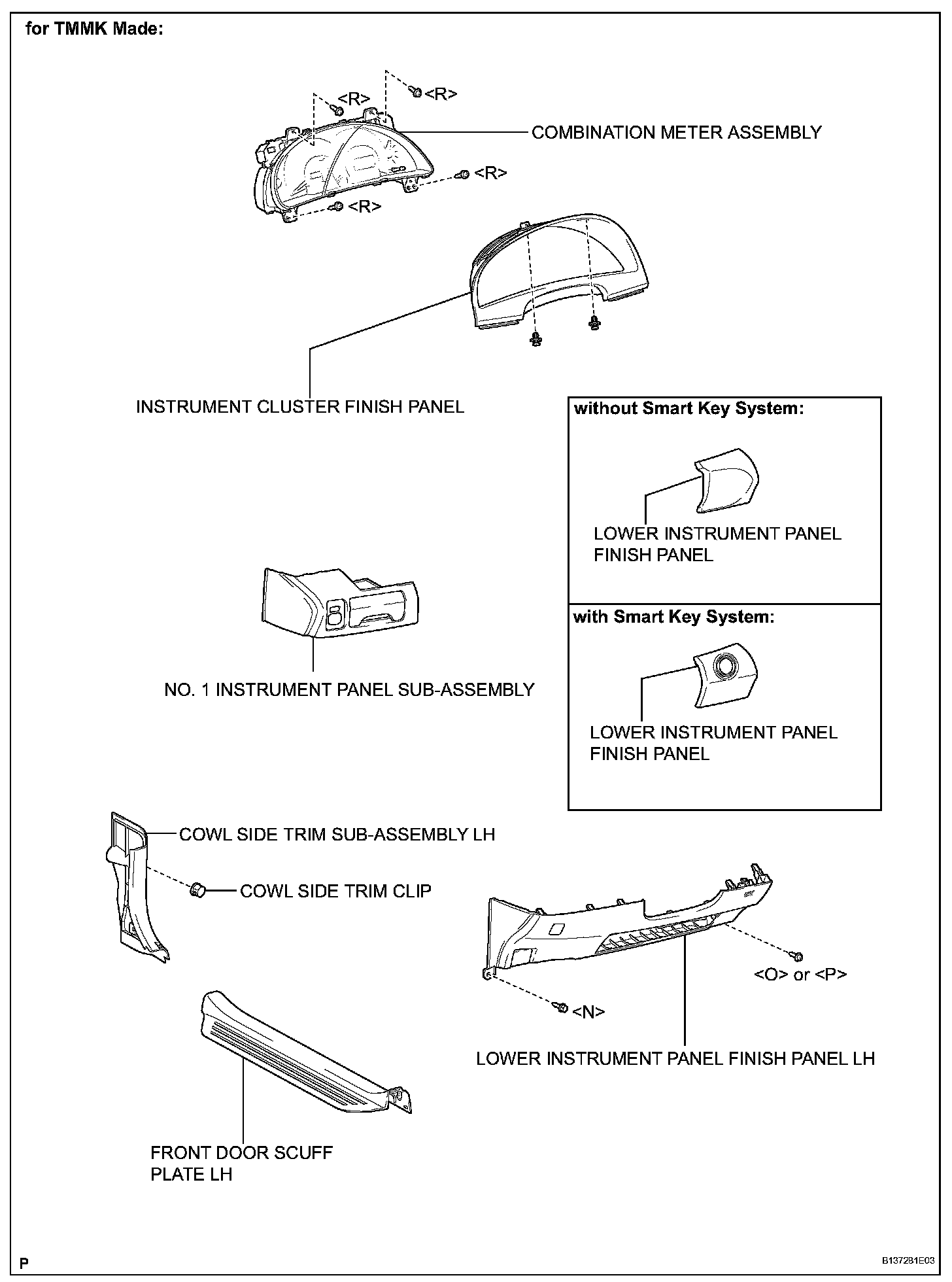

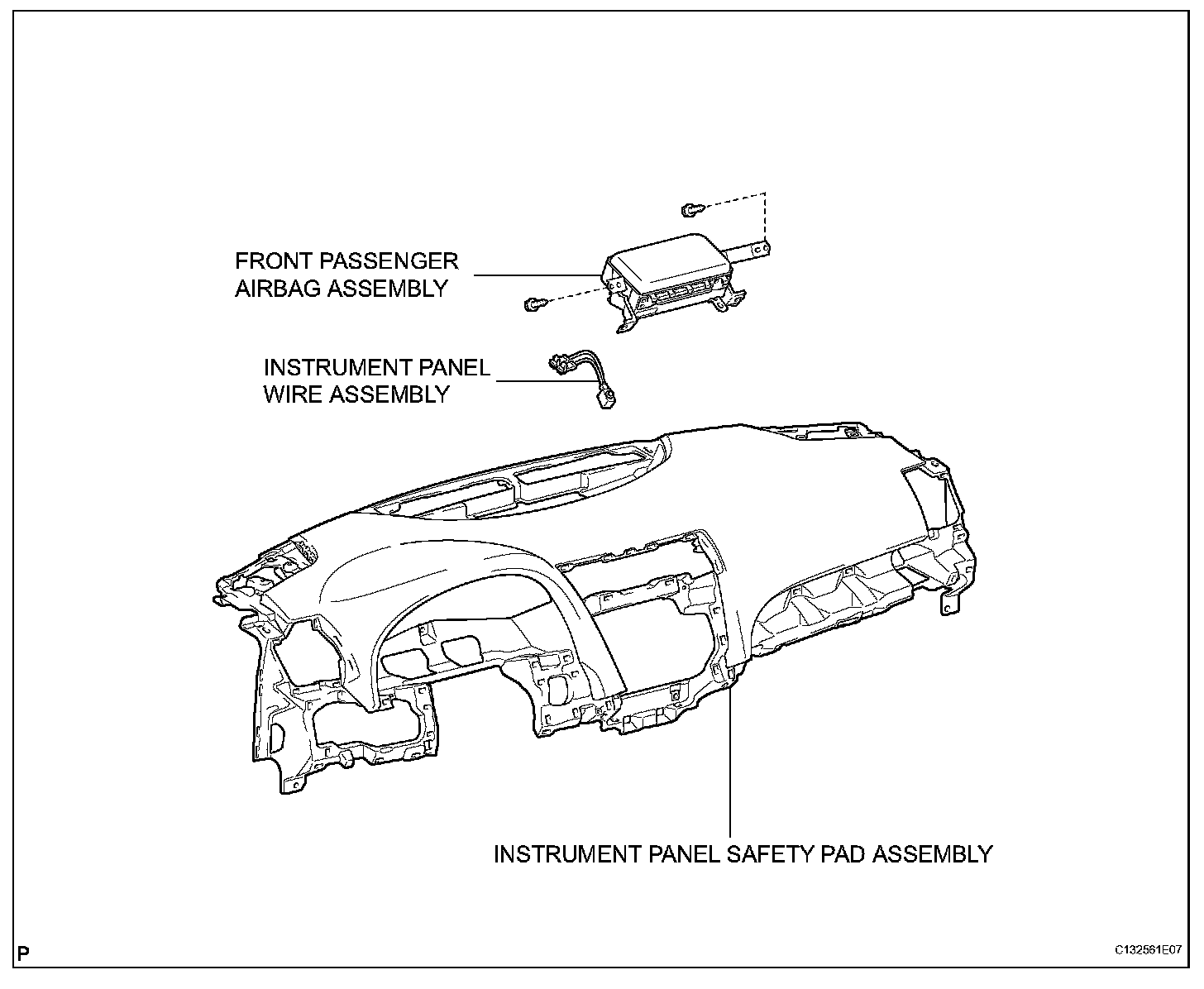

Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:



Front Passenger Airbag Assembly:

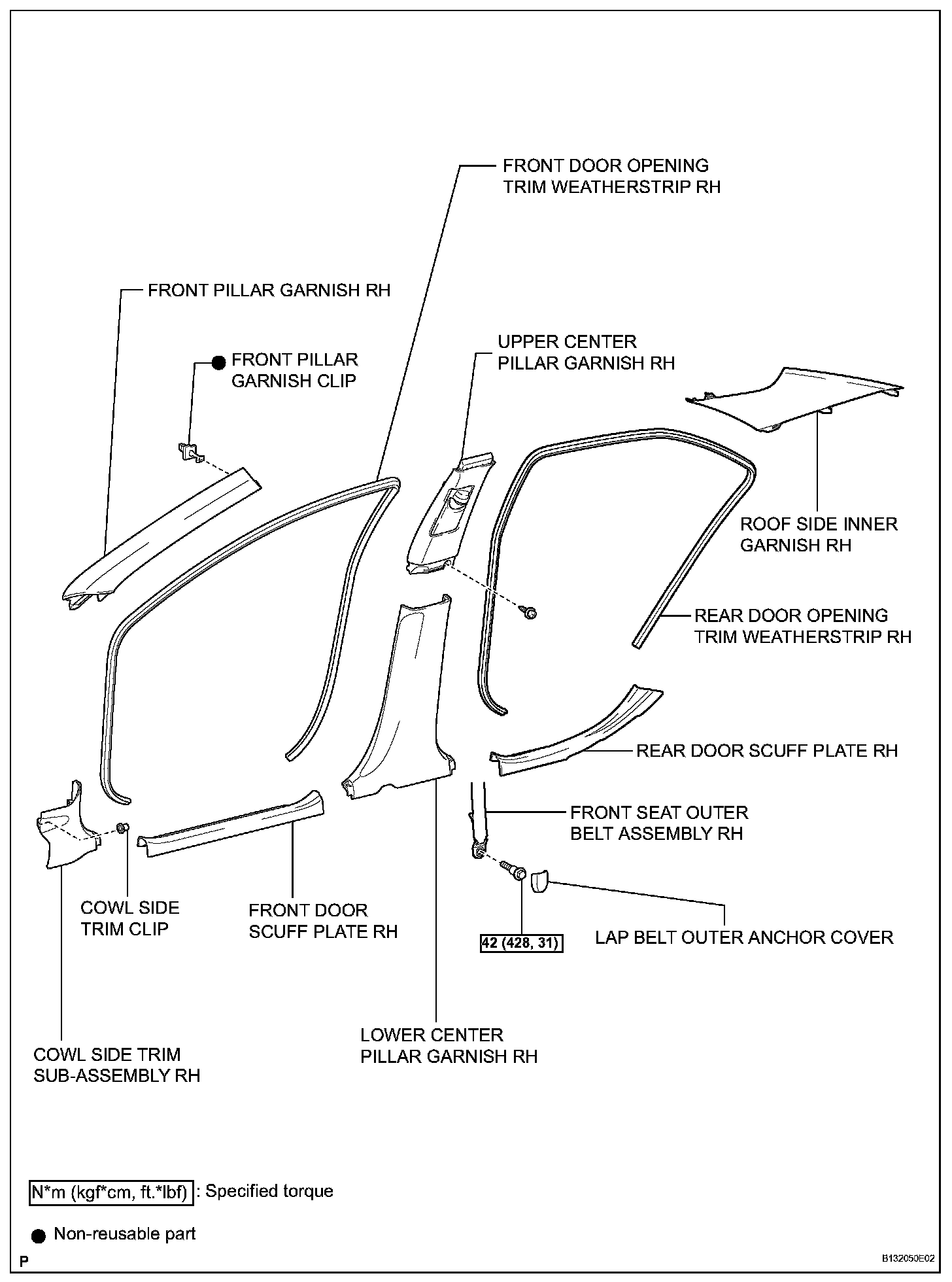

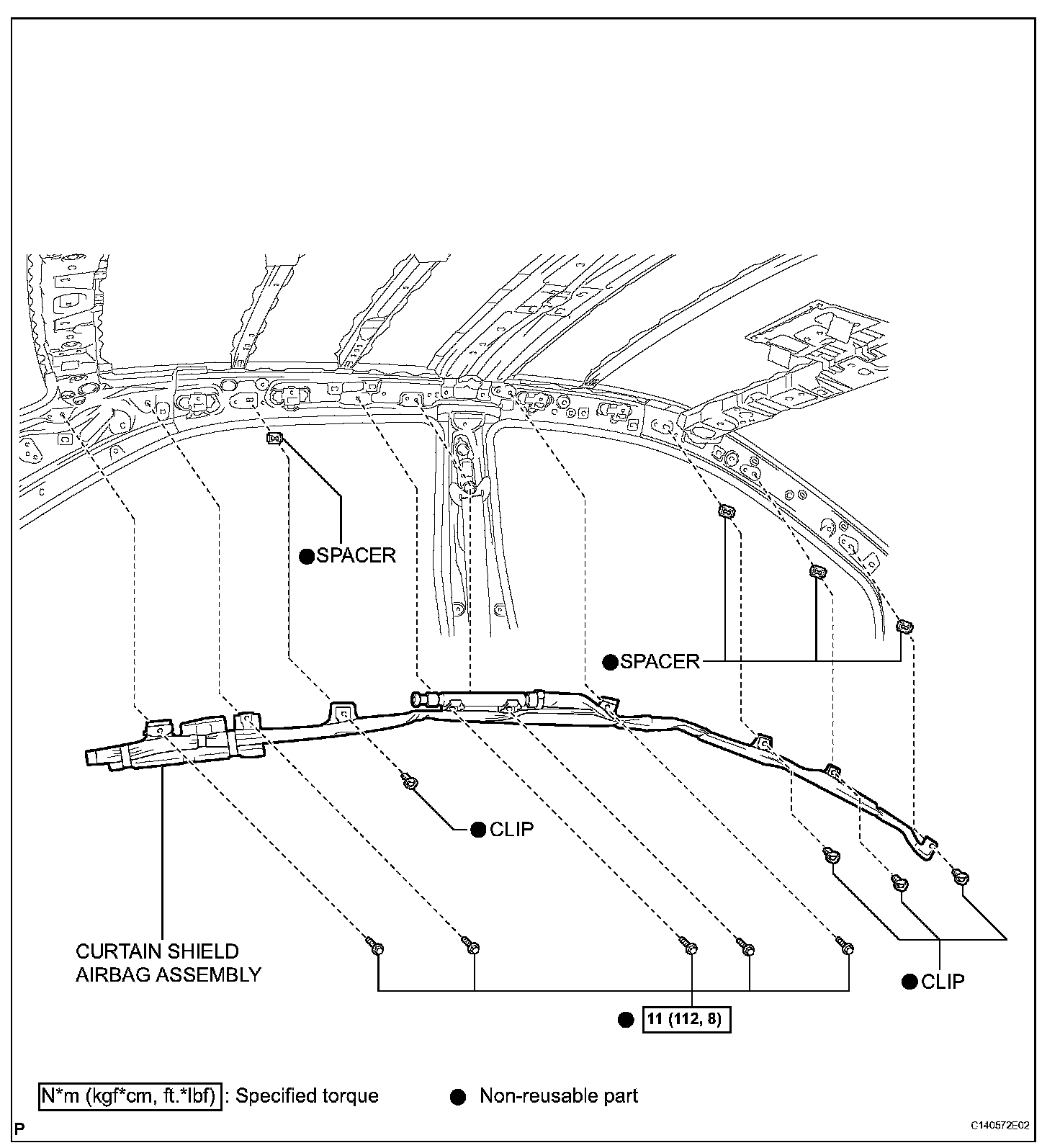

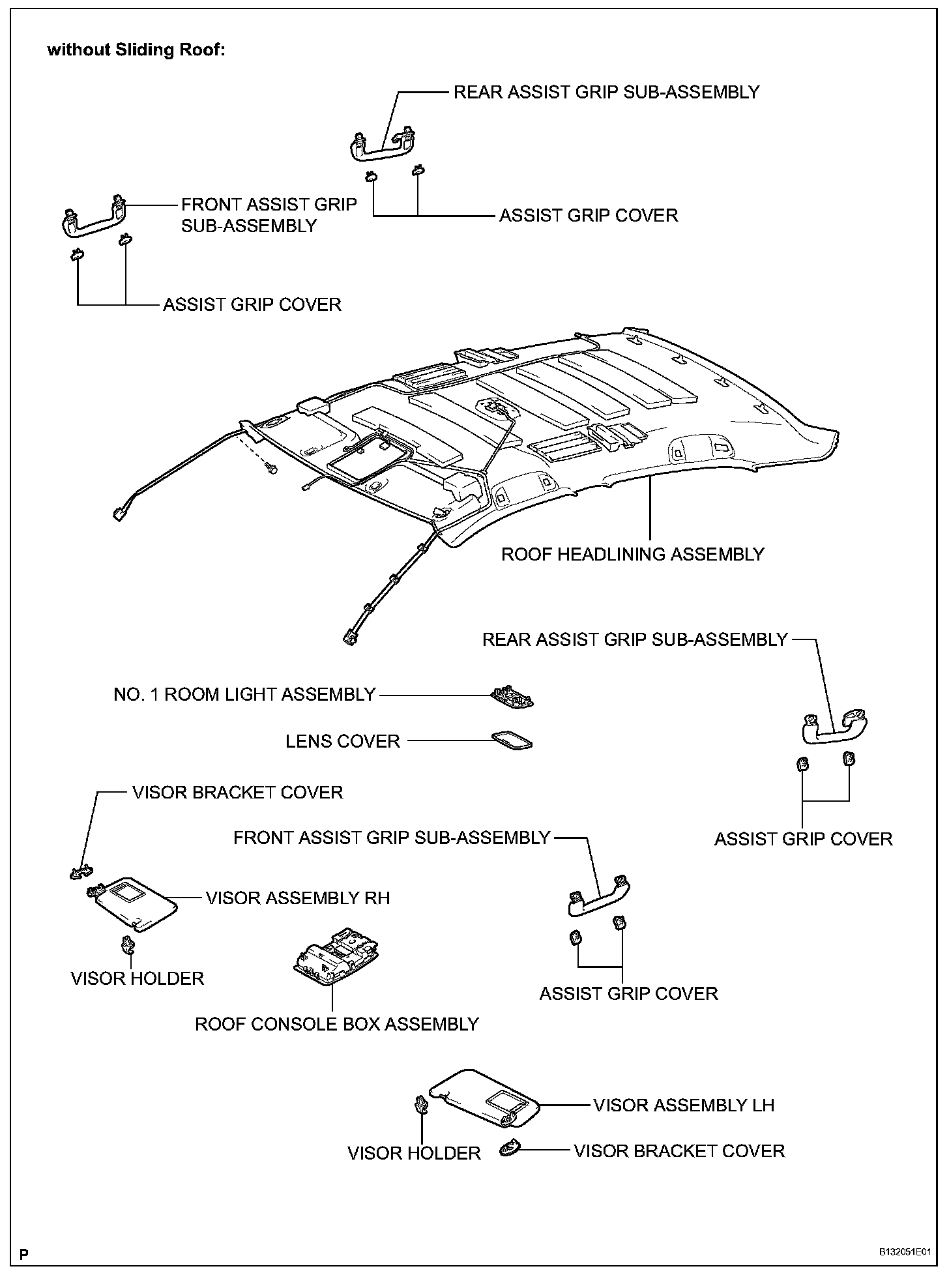

Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:



Curtain Shield Airbag Assembly:
