Heating and Air Conditioning: Service and Repair
REMOVAL1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
3. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
4. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

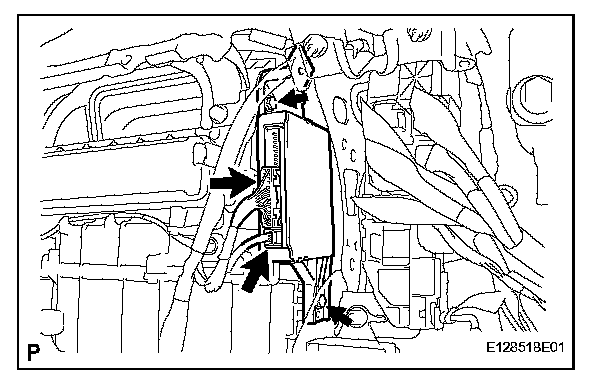

5. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
a. Disconnect the connectors.
b. Remove the 2 bolts and air conditioning amplifier assembly.
INSTALLATION

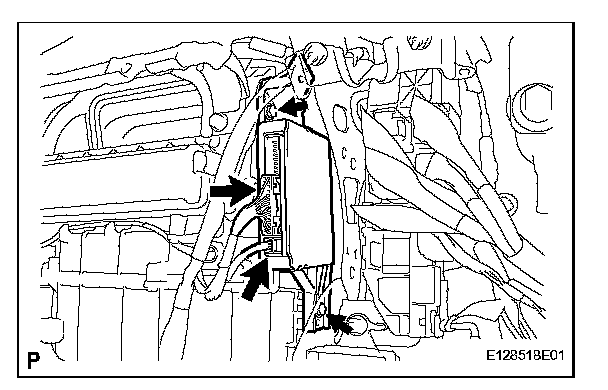

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
a. Install the air conditioning amplifier assembly with the 2 bolts.
b. Connect the connectors.
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
3. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
5. INSTALL FRONT DOOR SCUFF PLATE RH
