Actuator Check

ACTUATOR CHECK*

HINT: * : For AUTO A/C

a. Start the engine and warm it up.
b. Perform the indicator check.

INDICATOR CHECK*

HINT * : For AUTO A/C

a. Turn the ignition switch off.




b. Turn the ignition switch on (IG) while pressing the A/C control "AUTO" switch and "R/F" switch simultaneously. Hold both switches until the indicator check screen appears.




c. The indicator check is automatically performed when panel diagnosis is activated. Check that the indicators light up and go off at 1 second intervals 4 times in succession.

HINT:
- The sensor check automatically starts when the indicator check is completed.
- Press the "OFF" switch to cancel the check mode.
- If a navigation system is installed, the indicator will blink and the buzzer will sound.






c. Push the "R/F" switch to perform the actuator check.

HINT: Be sure to perform the actuator check after starting the engine.







d. As the actuator check is repeated from steps 1 to 10 at 1 second intervals, check the temperature and air flow visually and by hand.

HINT:
- The display blinks at 1 second intervals in the step operation.
- Push the "OFF" switch to finish panel diagnosis.
- Push the "AUTO" switch to enter the sensor check mode.

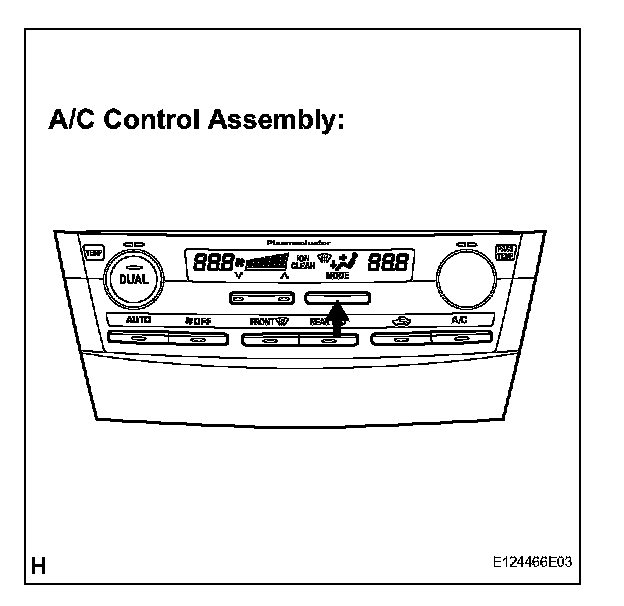

e. If the steps are difficult to read because they change automatically, push the "MODE" switch to display the steps one at a time so that they can be read easily The items are displayed step by step each time the "MODE" switch is pushed.

HINT:
- Push the "OFF" switch to finish panel diagnosis.
- Push the "R/F" switch to enter the sensor check mode.
