Air Conditioning Compressor Magnetic Clutch Circuit
Air Conditioning Compressor Magnetic Clutch CircuitDESCRIPTION
When the A/C amplifier is turned on, a magnetic clutch ON signal is sent from the MGC terminal of the A/C amplifier. Then, the MG CLT relay turns on to operate the magnetic clutch.

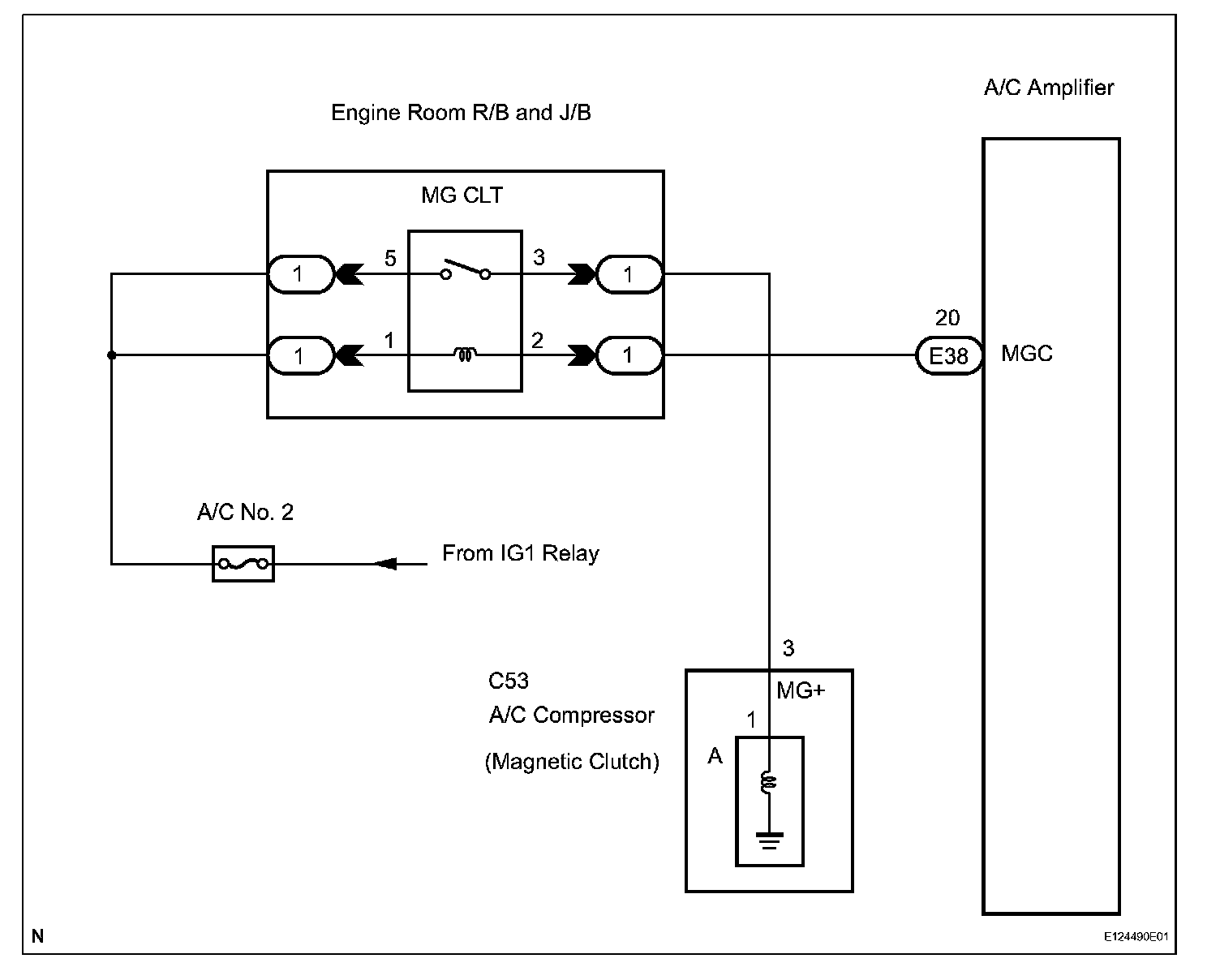

Wiring Diagram:
INSPECTION PROCEDURE
Step 1:

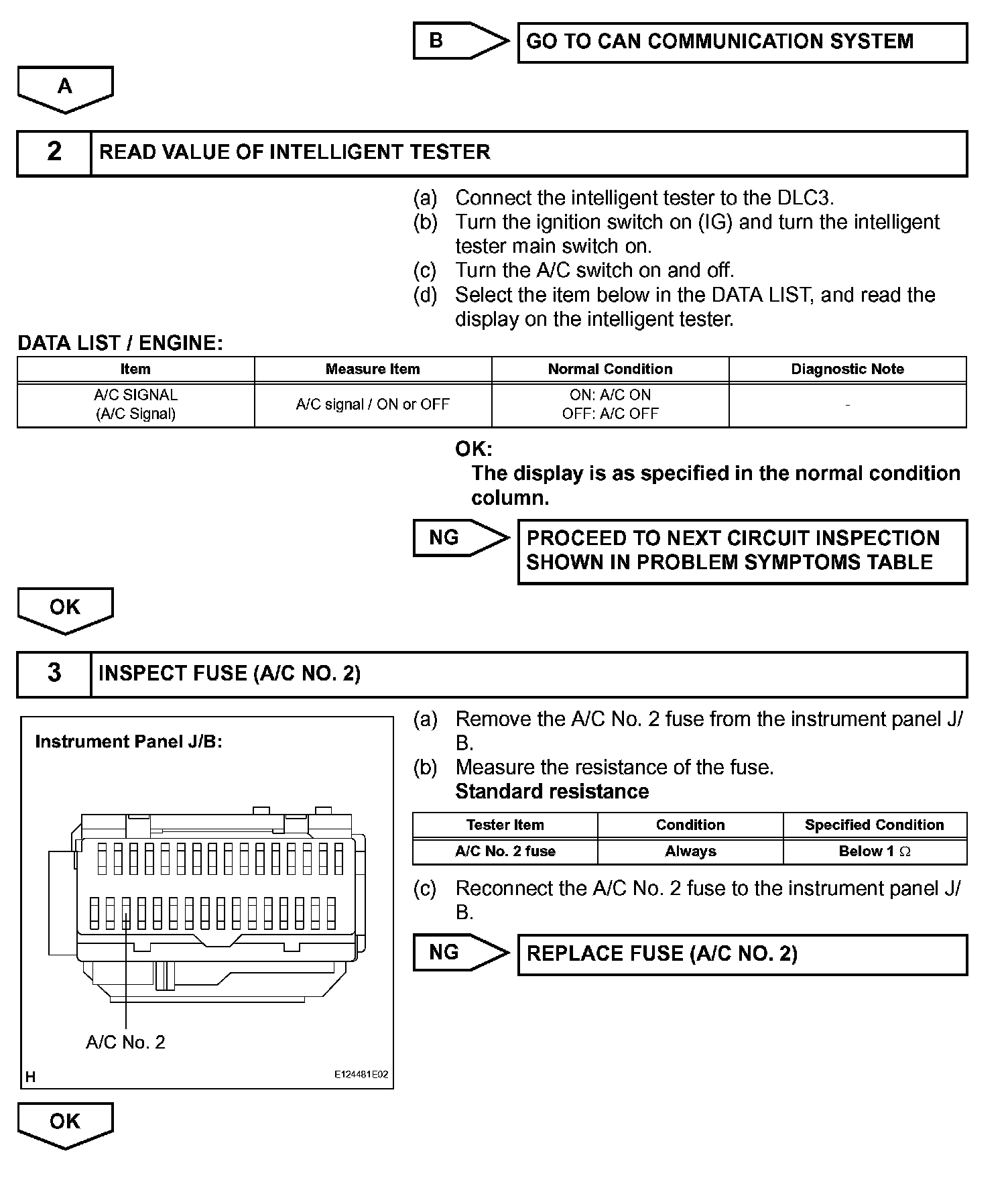

Step 1(Continued)-3:

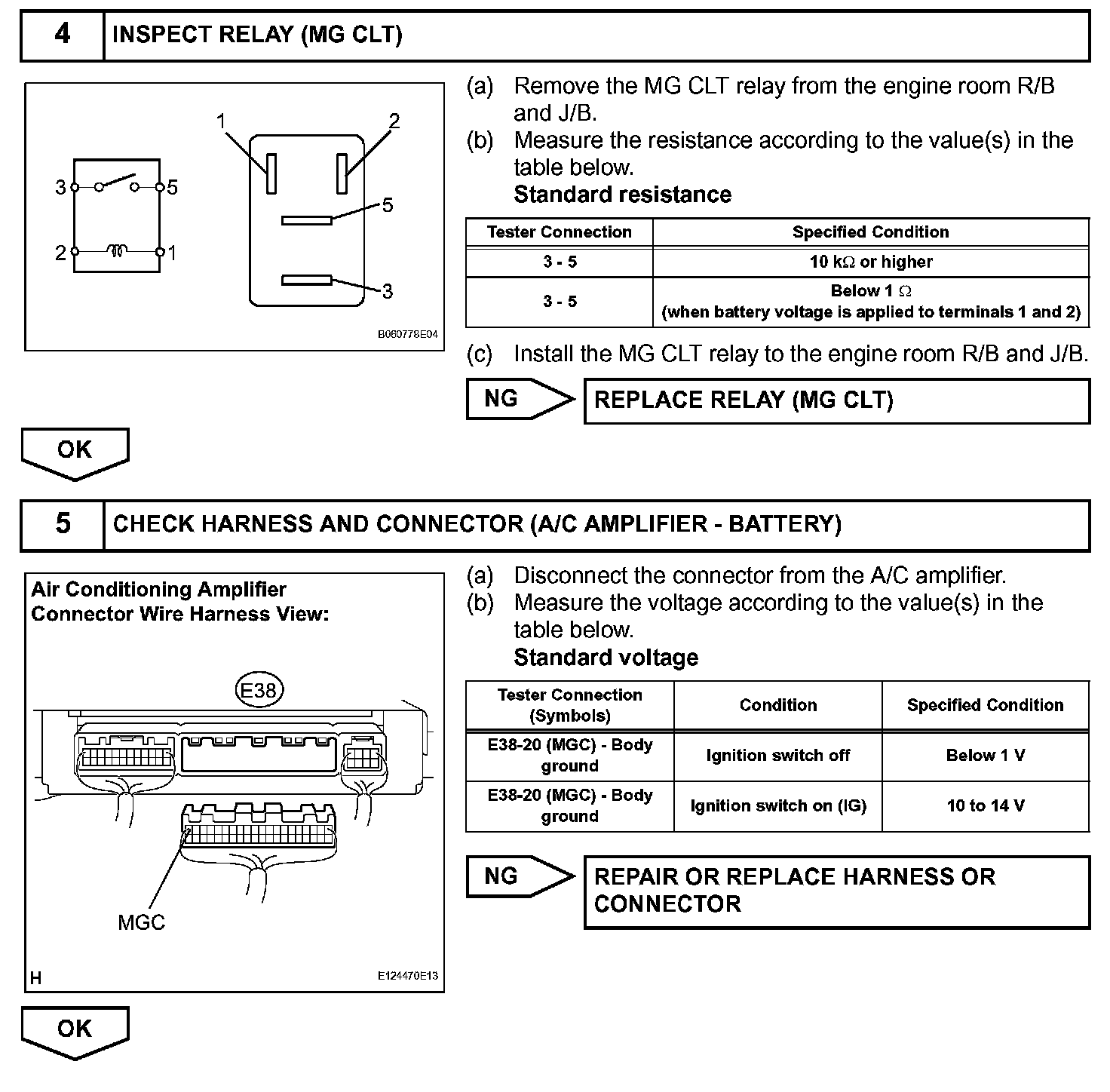

Step 4-5:

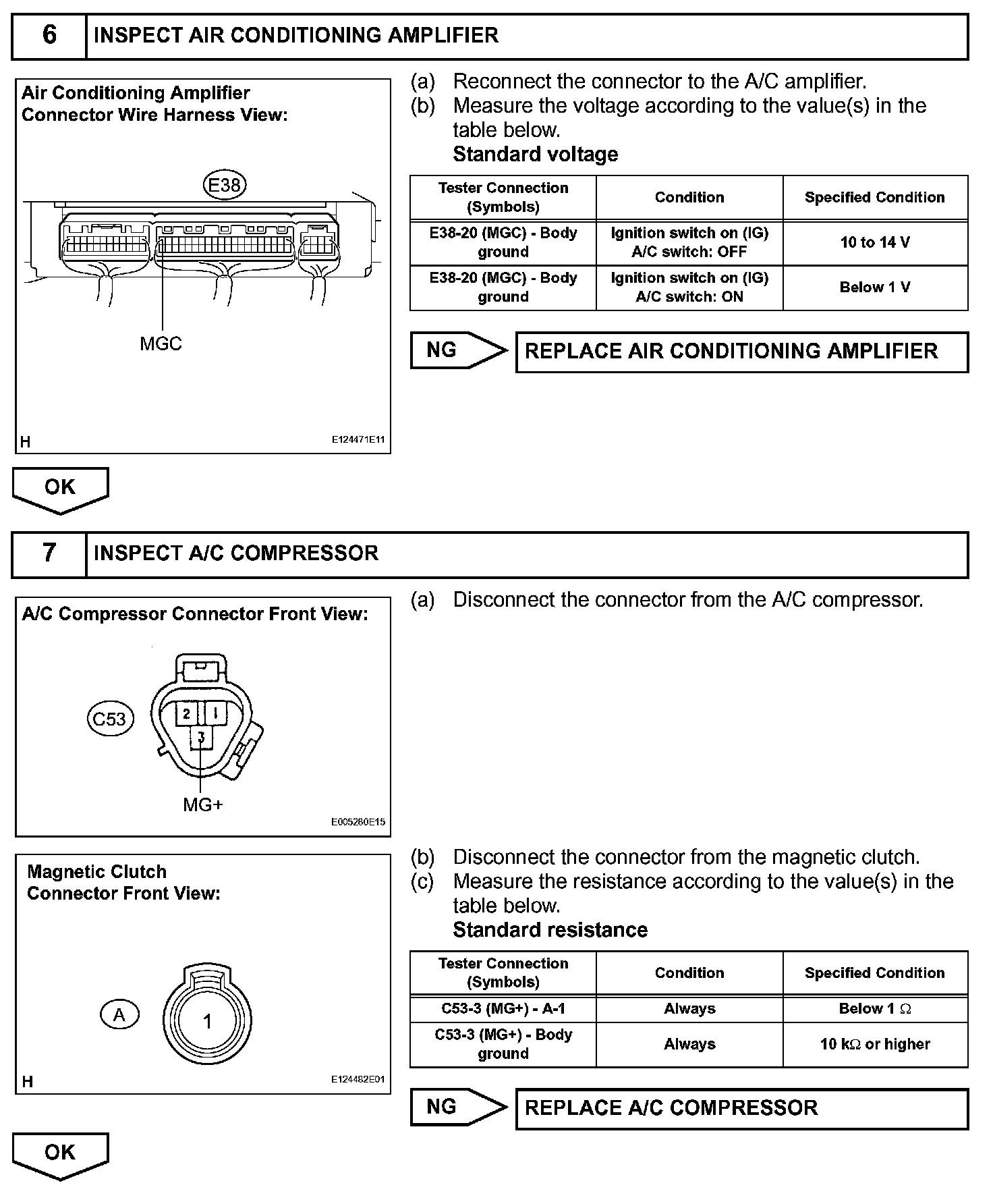

Step 6-7:

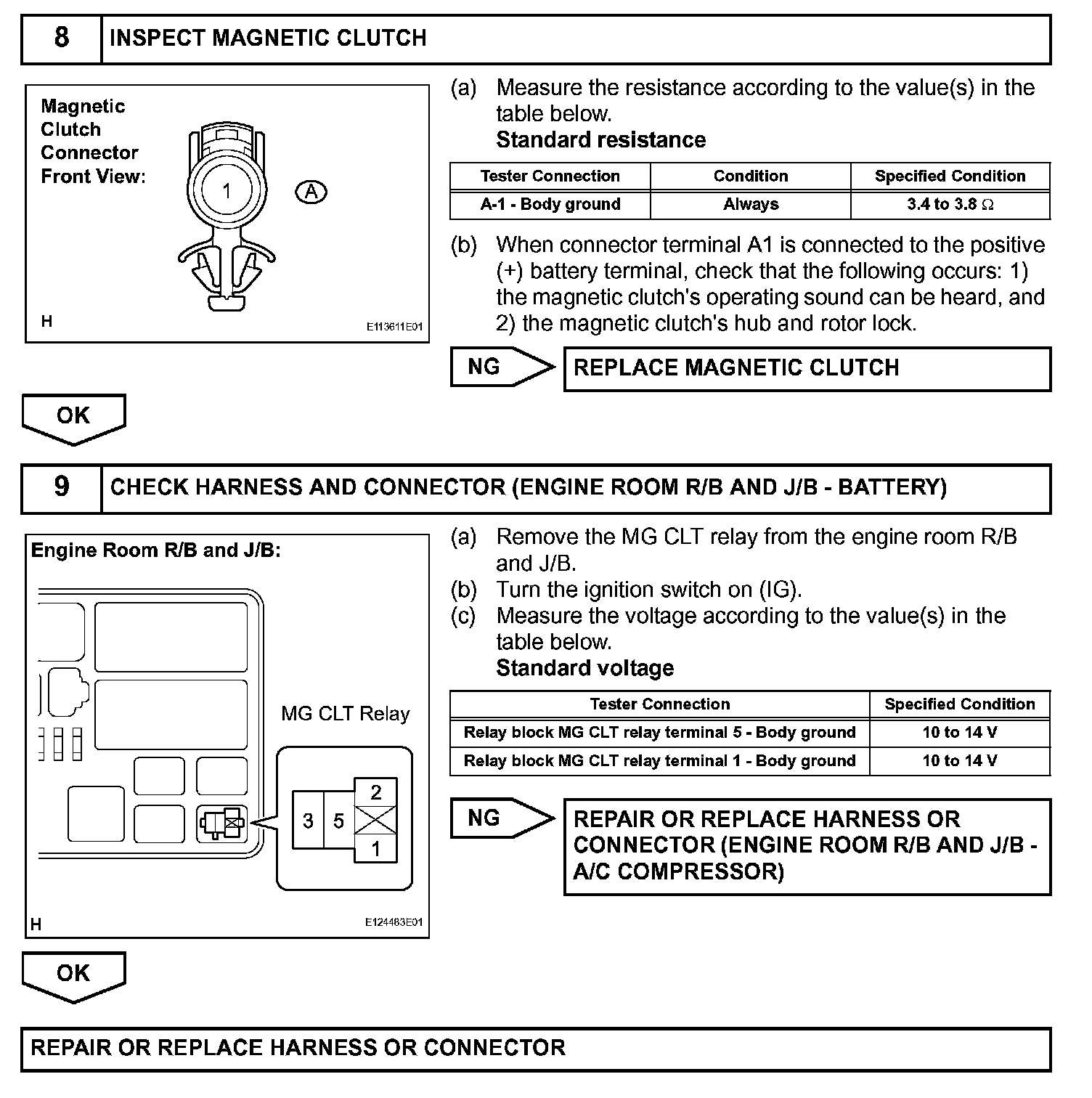

Step 8-9:
