Back-Up Power Source Circuit

Back-up Power Source Circuit

DESCRIPTION

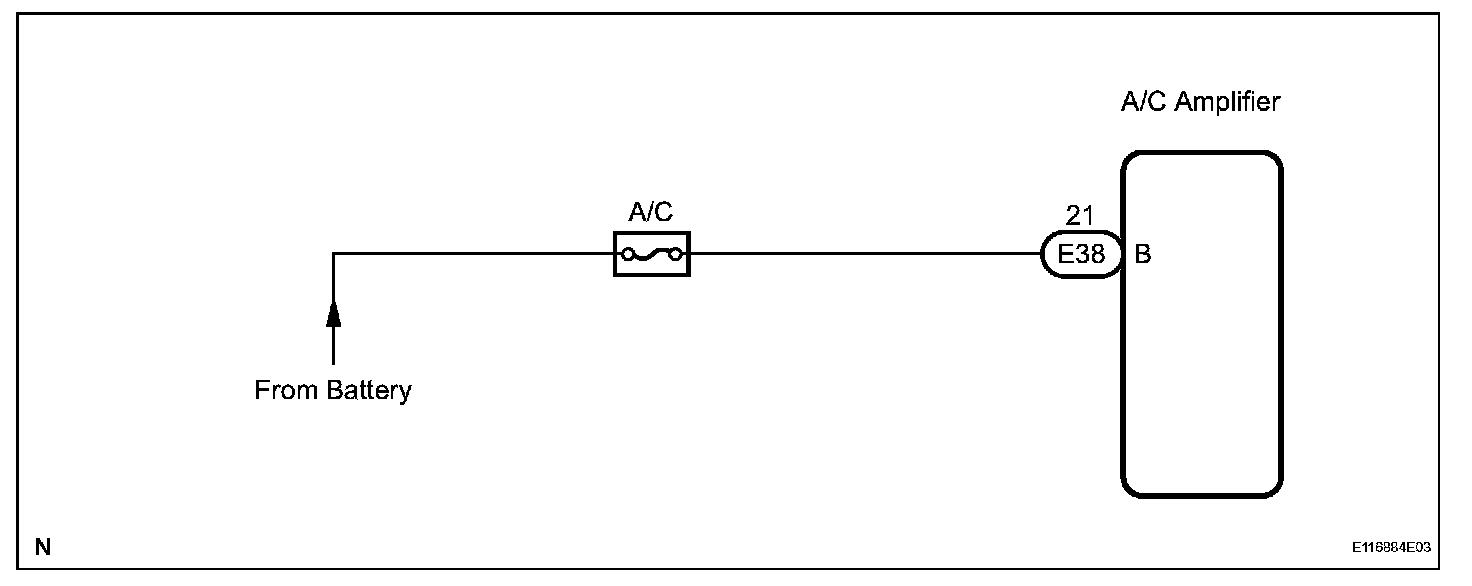

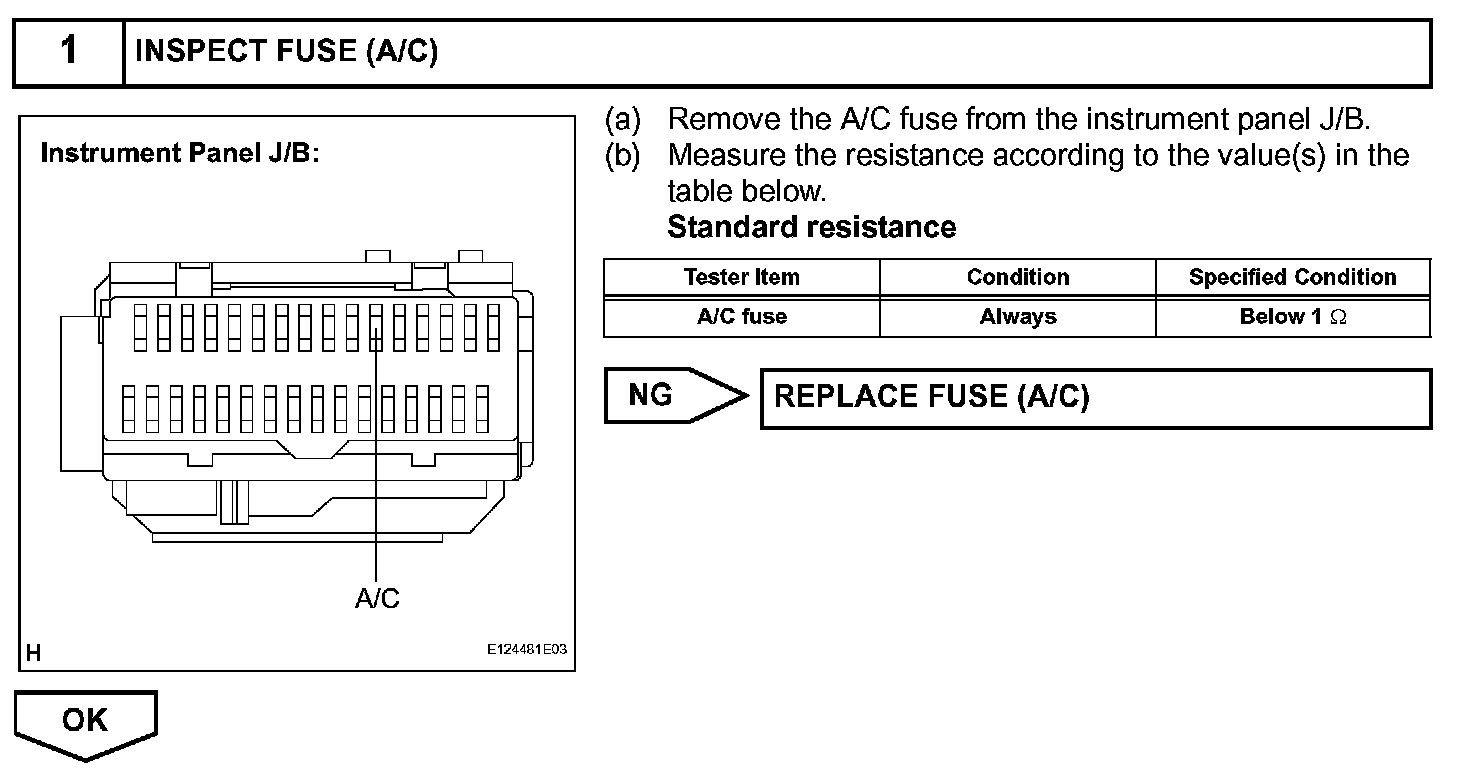

The back-up power source circuit for the A/C amplifier is shown below. Power is supplied even when turning the ignition switch off and is used for diagnostic trouble code memory, etc.
