Heater Control Panel Power Source Circuit
Heater Control Panel Power Source CircuitDESCRIPTION
Battery voltage is supplied to the heater control panel (A/C control assembly) through the A/C No. 2 fuse.
Wiring Diagram:

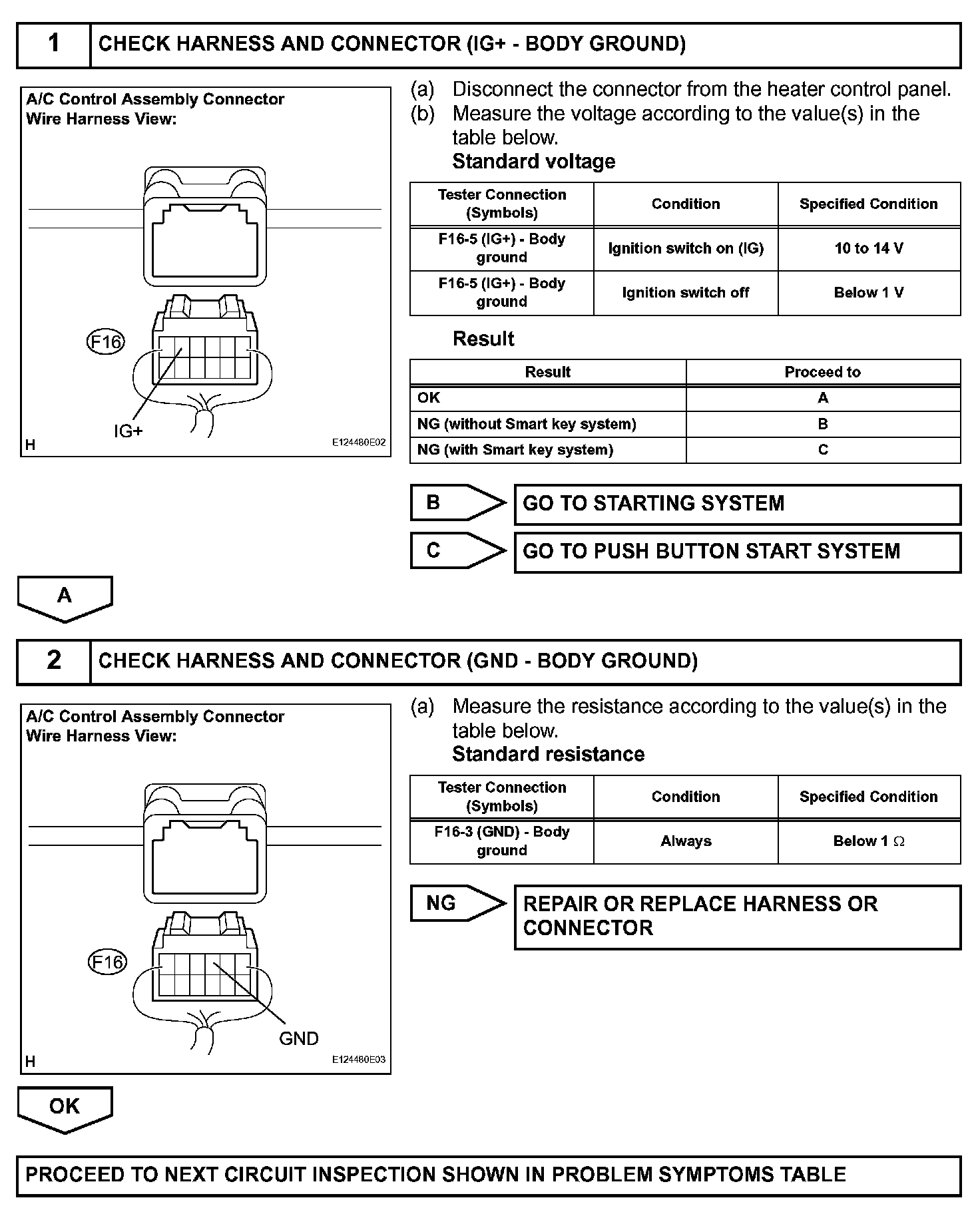

INSPECTION PROCEDURE
Step 1-2:
DESCRIPTION
Battery voltage is supplied to the heater control panel (A/C control assembly) through the A/C No. 2 fuse.
INSPECTION PROCEDURE
