IG Power Source Circuit

IG Power Source Circuit

DESCRIPTION

The main power source is supplied to the A/C amplifier when the ignition switch is turned on (IG). The power source is used for operating the A/C amplifier and servo motor, etc.

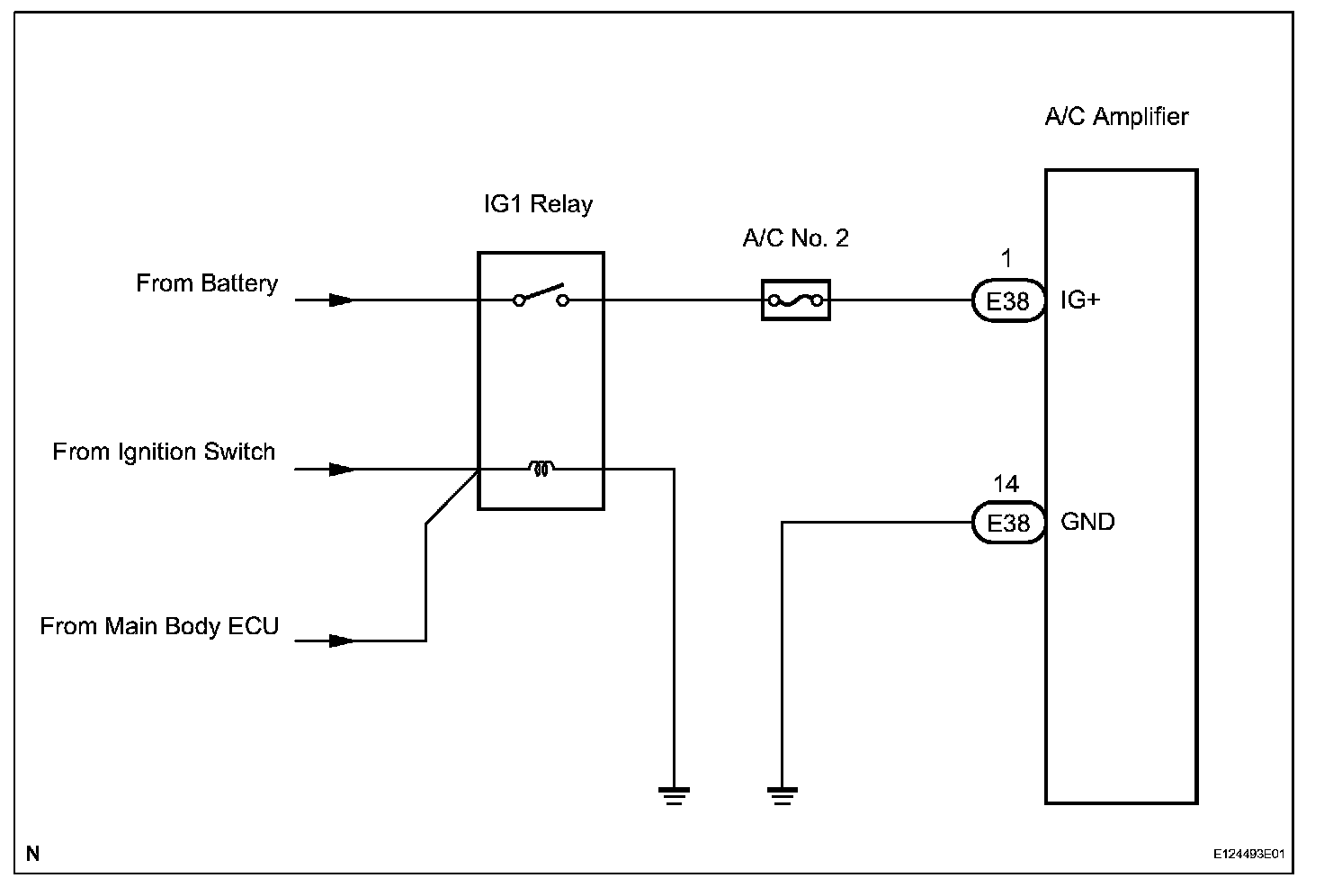

Wiring Diagram:





INSPECTION PROCEDURE

HINT: Start the engine before inspection. Check the IG1 relay or battery if the engine does not start.

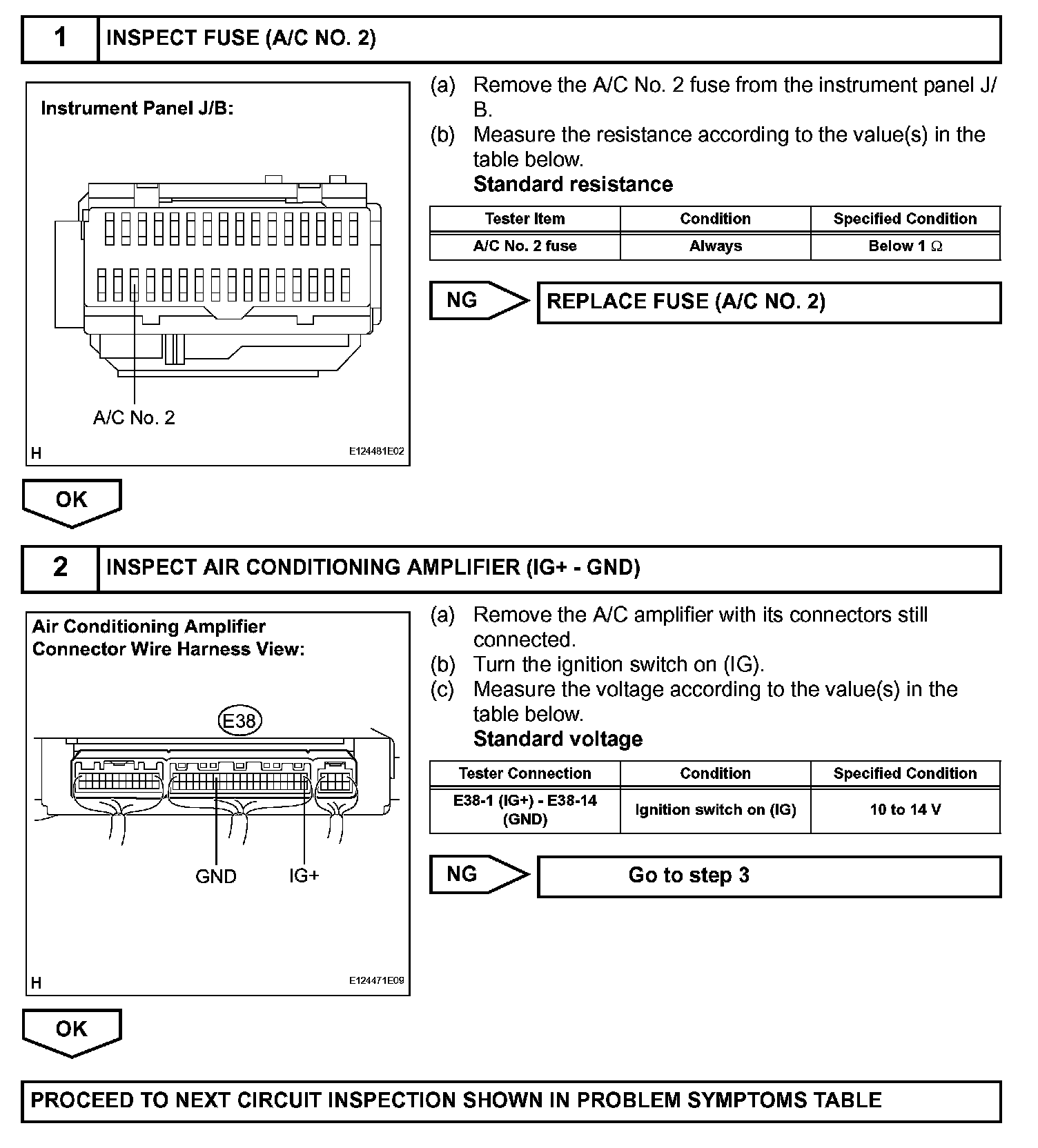

Step 1-2:




Step 3-4:
