LIN Communication Circuit
LIN Communication CircuitDESCRIPTION
The operation signal of a switch etc. is exchanged between terminal TX+ of the A/C control assembly and terminal LIN1 of the A/C amplifier.

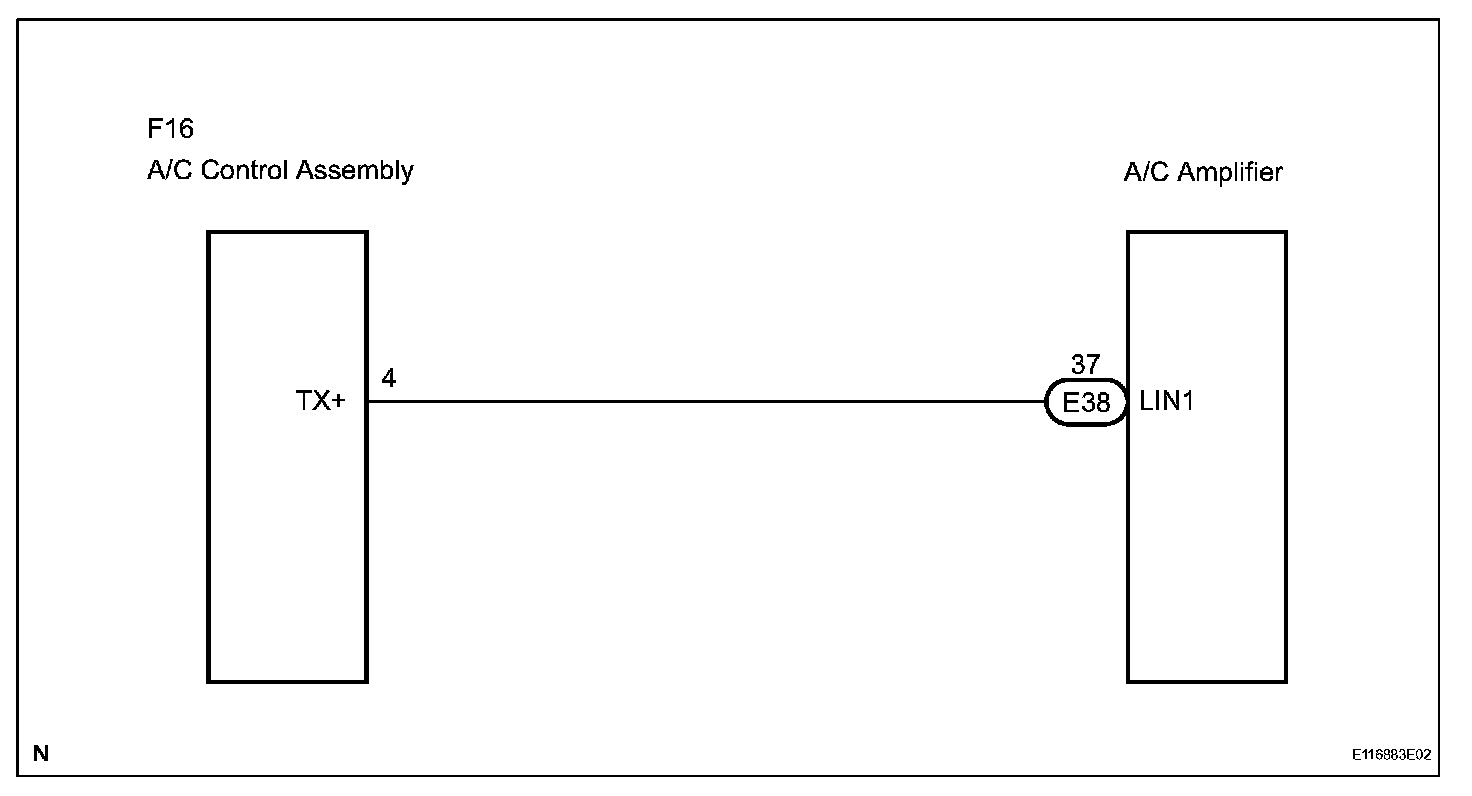

Wiring Diagram:
INSPECTION PROCEDURE

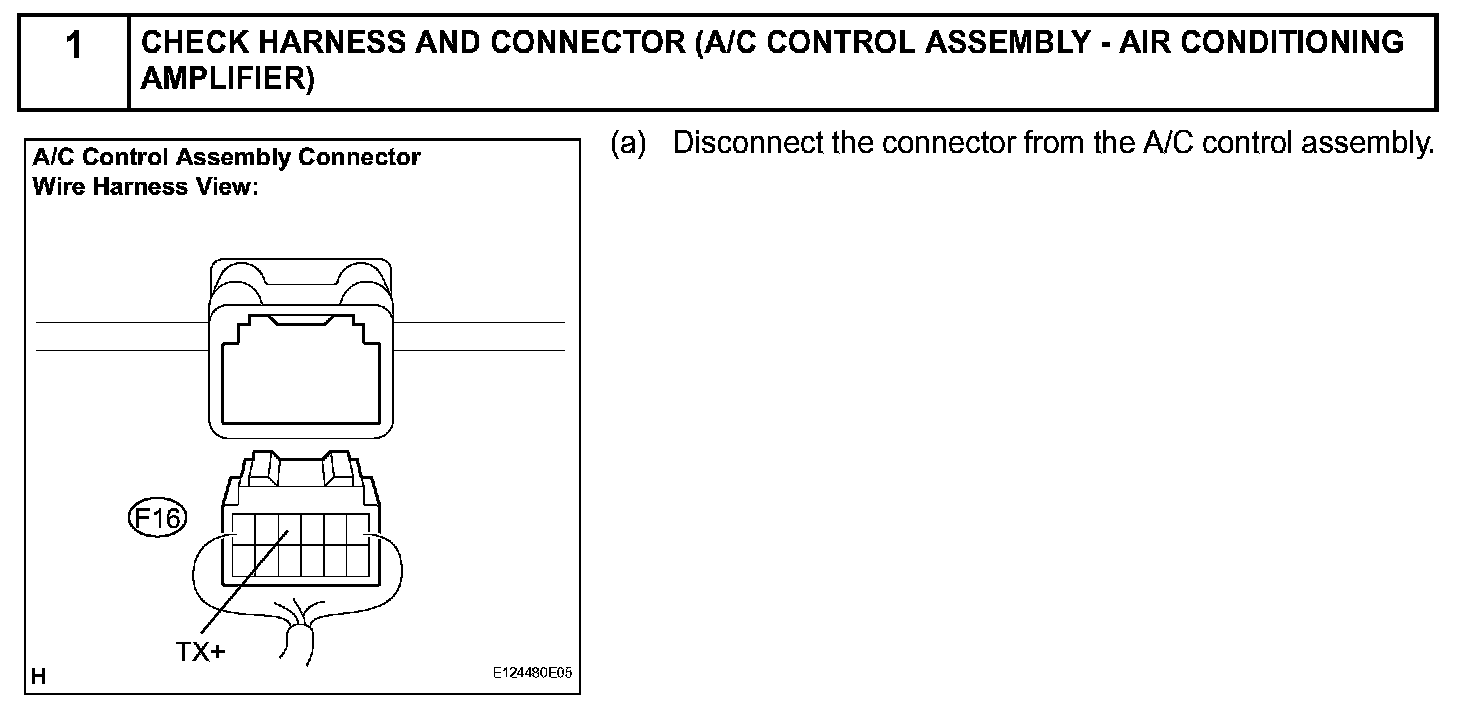

Step 1:
Step 1(Continued):
