Plasmacluster Circuit

Plasmacluster Circuit

DESCRIPTION

The plasmacluster-operates in conjunction with blower switch operation. The plasmacluster-operation indicator (CLEAN) illuminates on the A/C control assembly when the plasmacluster is operating.

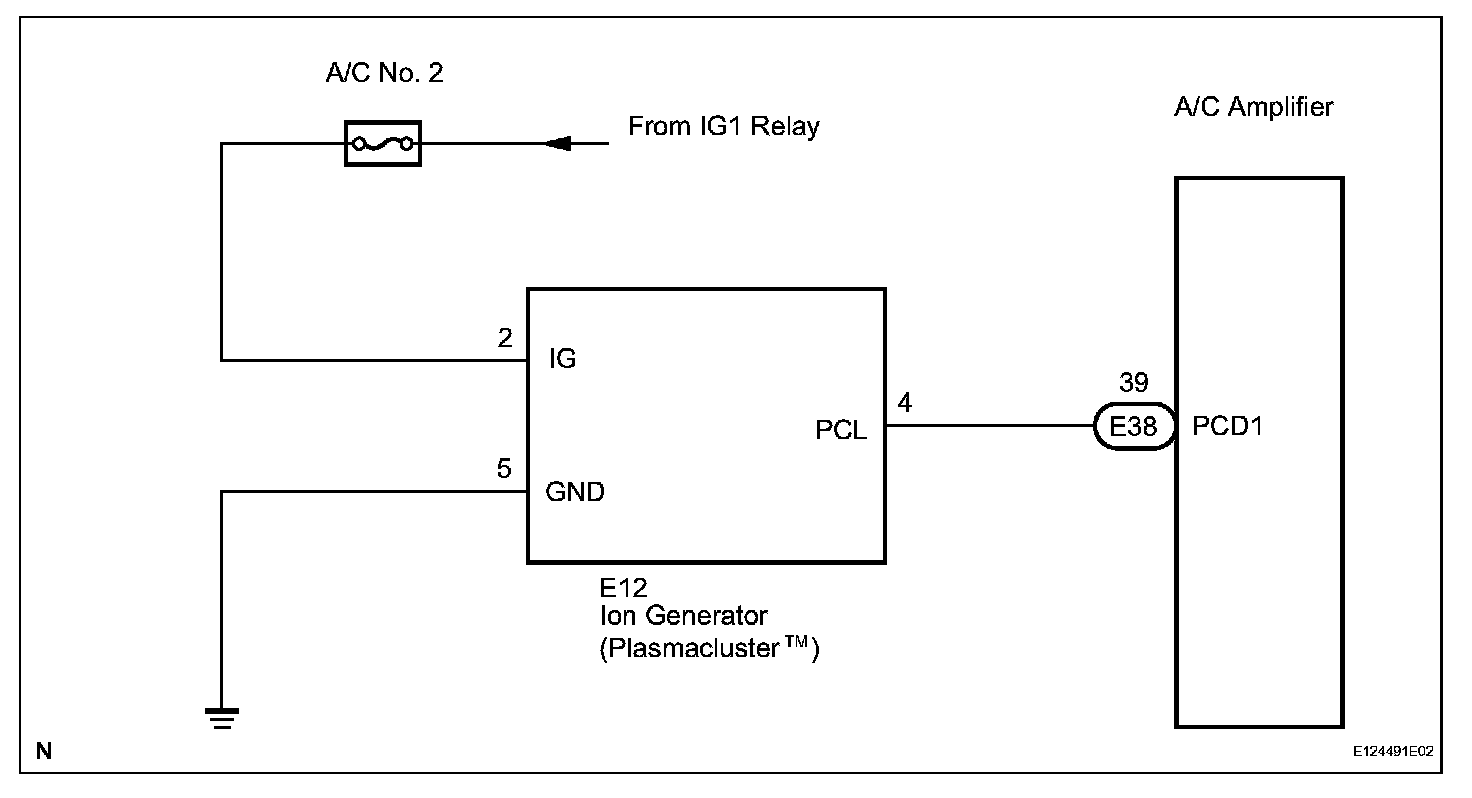

Wiring Diagram:





INSPECTION PROCEDURE

Step 1:




Step 1(Continued)-3:




Step 4:
