Overhaul

DISASSEMBLY

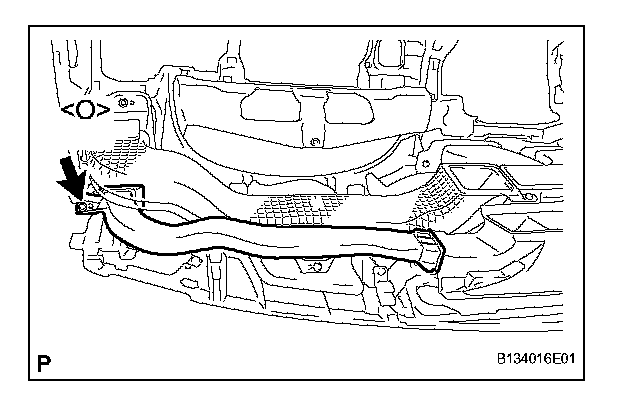

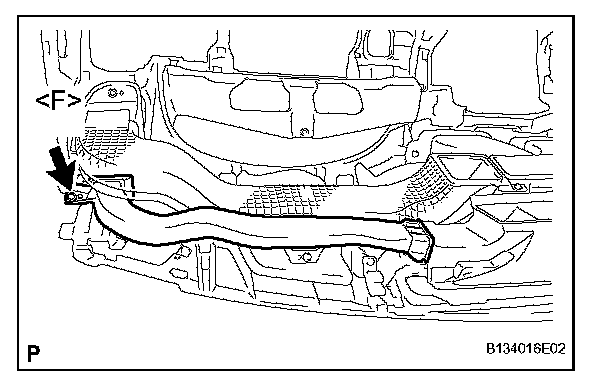

1. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMC Made)






a. Remove the screw and the side No. 1 defroster nozzle duct.

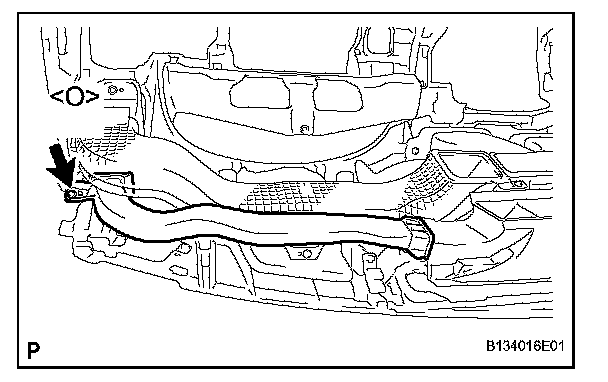

2. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMMK Made)

a. Remove the screw and the side No. 1 defroster nozzle duct.

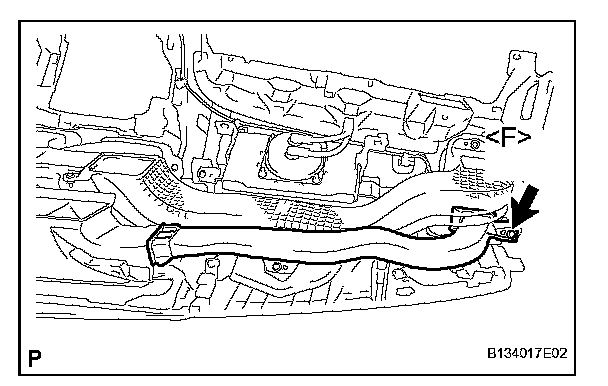

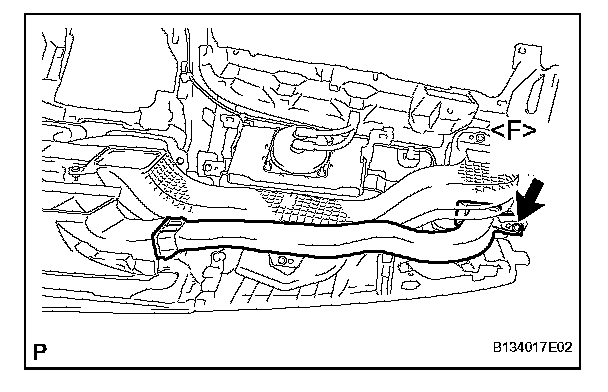

3. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMC Made)

a. Remove the screw and the side No. 2 defroster nozzle duct.

4. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMMK Made)

a. Remove the screw and the side No. 2 defroster nozzle duct.

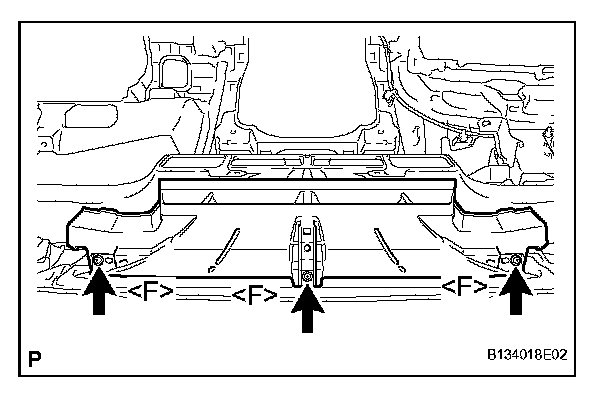

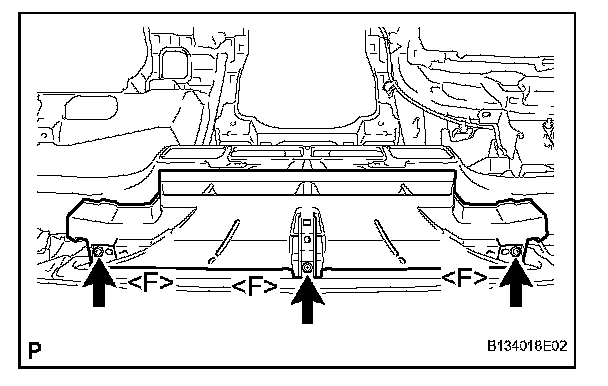

5. REMOVE DEFROSTER NOZZLE ASSEMBLY (for TMC Made)

a. Remove the 3 screws and the defroster nozzle assembly.

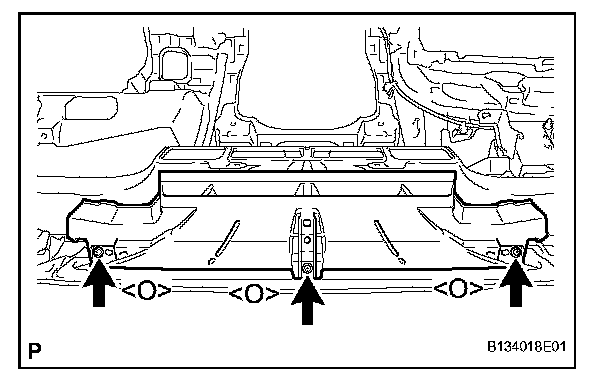

6. REMOVE DEFROSTER NOZZLE ASSEMBLY (for TMMK Made)

a. Remove the 3 screws and the defroster nozzle assembly.

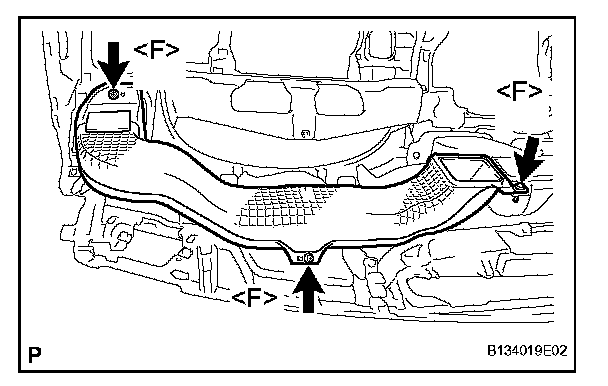

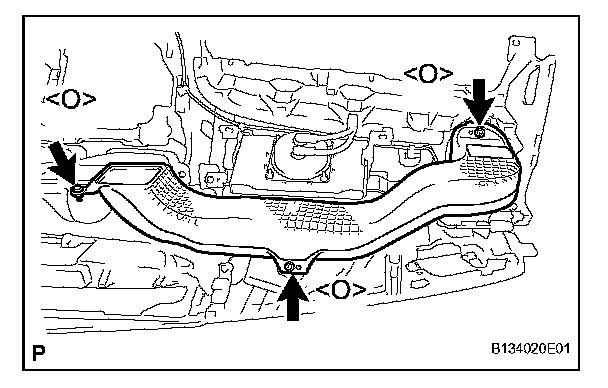

7. REMOVE NO. 1 HEATER TO REGISTER DUCT (for TMC Made)

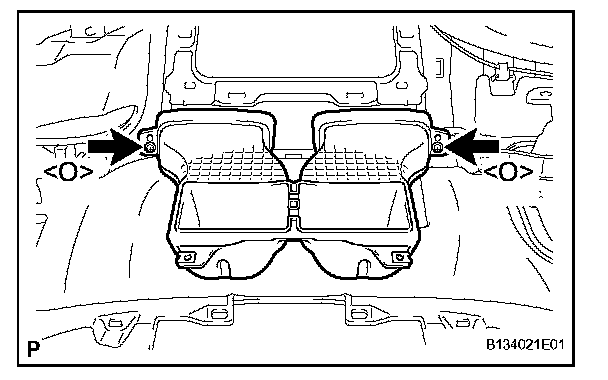

a. Remove the 3 screws and the No. 1 heater to register duct.

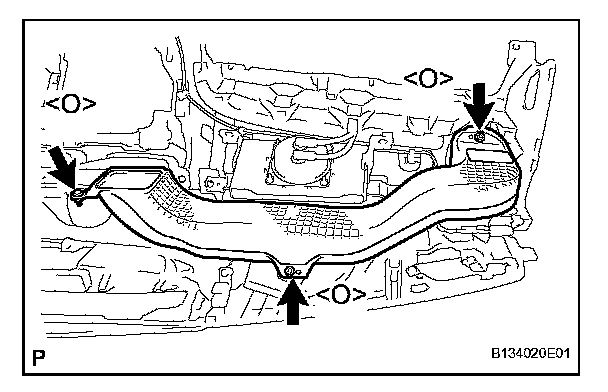

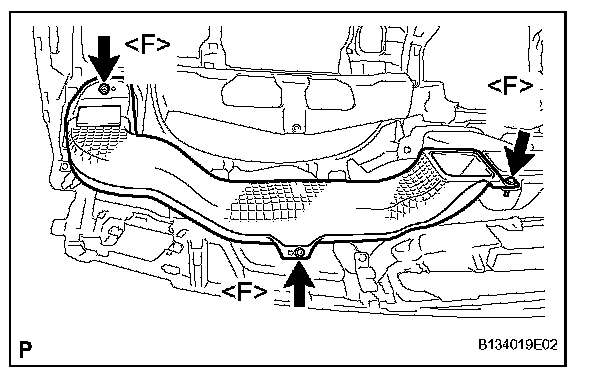

8. REMOVE NO. 1 HEATER TO REGISTER DUCT (for TMMK Made)

a. Remove the 3 screws and the No. 1 heater to register duct.

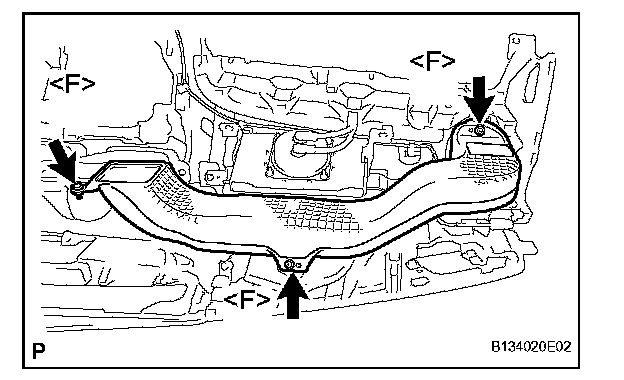

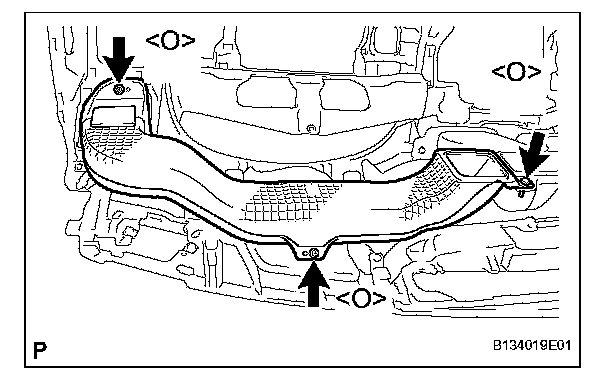

9. REMOVE NO. 3 HEATER TO REGISTER DUCT (for TMC Made)

a. Remove the 3 screws and the No. 3 heater to register duct.

10. REMOVE NO. 3 HEATER TO REGISTER DUCT (for TMMK Made)

a. Remove the 3 screws and the No. 3 heater to register duct.

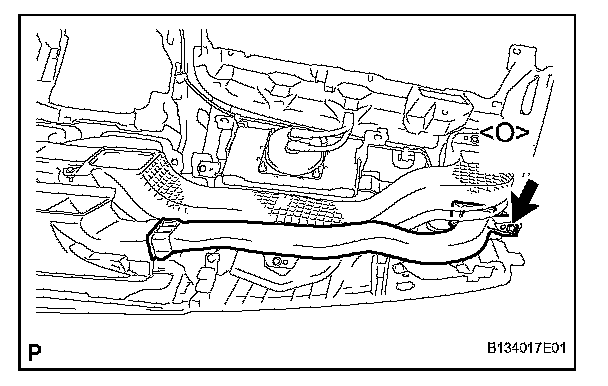

11. REMOVE NO. 2 HEATER TO REGISTER DUCT (for TMC Made)

a. Remove the 2 screws and the No. 2 heater to register duct.

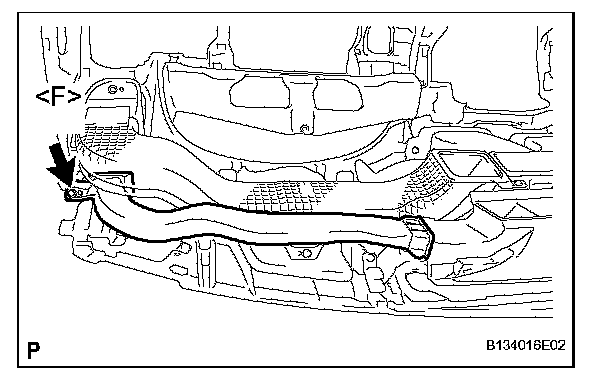

12. REMOVE NO. 2 HEATER TO REGISTER DUCT (for TMMK Made)

a. Remove the 2 screws and the No. 2 heater to register duct.

13. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
14. REMOVE NAVIGATION ANTENNA ASSEMBLY
15. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

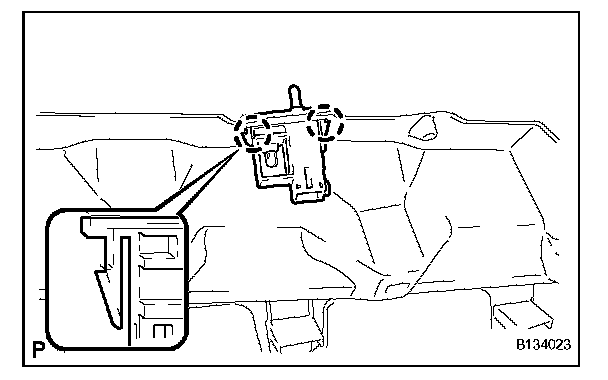

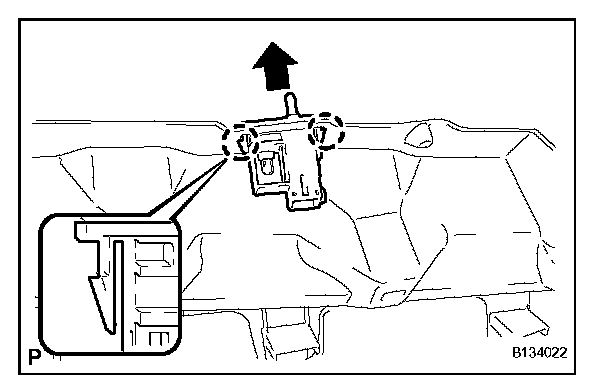

16. REMOVE GLOVE BOX LIGHT ASSEMBLY

a. Disengage the 2 claws and remove the glove box light assembly.

17. REMOVE PLASMACLUSTER (w/ Plasmacluster)

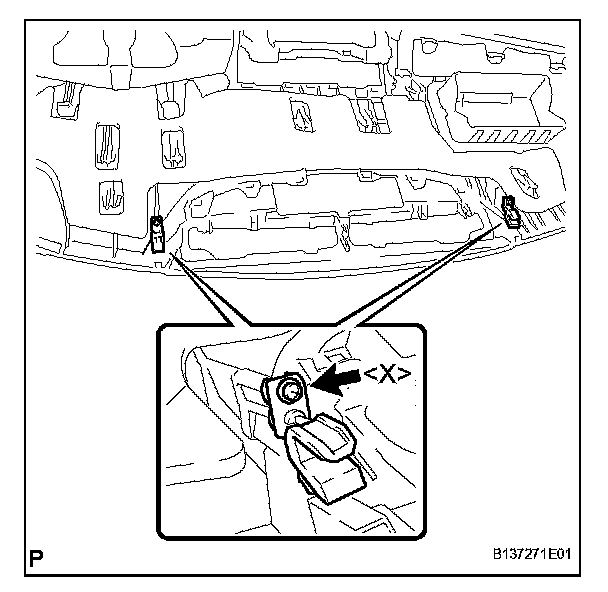

18. REMOVE NO. 1 INSTRUMENT PANEL PIN (for TMMK Made)

a. Remove the 2 screws and 2 No. 1 instrument panel pins.

REASSEMBLY

1. INSTALL NO. 1 INSTRUMENT PANEL PIN (for TMMK Made)

a. Install the 2 No. 1 instrument panel pins with the 2 screws .

2. INSTALL PLASMACLUSTER (w/ Plasmacluster)
3. INSTALL GLOVE BOX LIGHT ASSEMBLY

a. Engage the 2 claws and install the glove box light.

4. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
5. INSTALL NAVIGATION ANTENNA ASSEMBLY
6. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
7. INSTALL NO. 2 HEATER TO REGISTER DUCT (for TMC Made)

a. Install the No. 2 heater to register duct with the 2 screws .

8. INSTALL NO. 2 HEATER TO REGISTER DUCT (for TMMK Made)

a. Install the No. 2 heater to register duct with the 2 screws .

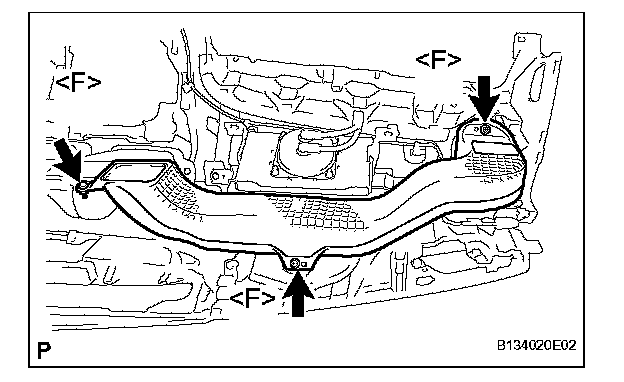

9. INSTALL NO. 3 HEATER TO REGISTER DUCT (for TMC Made)

a. Install the No. 3 heater to register duct with the 3 screws .

10. INSTALL NO. 3 HEATER TO REGISTER DUCT (for TMMK Made)

a. Install the No. 3 heater to register duct with the 3 screws .

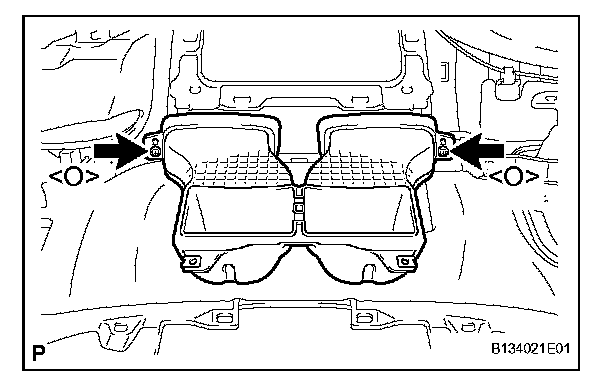

11. INSTALL NO. 1 HEATER TO REGISTER DUCT (for TMC Made)

a. Install the No. 1 heater to register duct with the 3 screws .

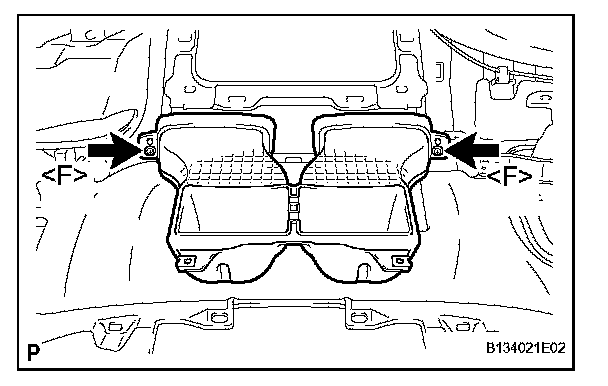

12. INSTALL NO. 1 HEATER TO REGISTER DUCT (for TMMK Made)

a. Install the No. 1 heater to register duct with the 3 screws .

13. INSTALL DEFROSTER NOZZLE ASSEMBLY (for TMC Made)

a. Install the defroster nozzle assembly with the 3 screws .

14. INSTALL DEFROSTER NOZZLE ASSEMBLY (for TMMK Made)

a. Install the defroster nozzle assembly with the 3 screws .

15. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMC Made)

a. Install the side No. 2 defroster nozzle duct with the screw .

16. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMMK Made)

a. Install the side No. 2 defroster nozzle duct with the screw .

17. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMC Made)

a. Install the side No. 1 defroster nozzle duct with the screw .

18. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMMK Made)

a. Install the side No. 1 defroster nozzle duct with the screw .
