Instrument Cluster / Carrier: Service Precautions
METER / GAUGE SYSTEMPRECAUTION
1. REMOVAL AND INSTALLATION OF THE BATTERY TERMINAL

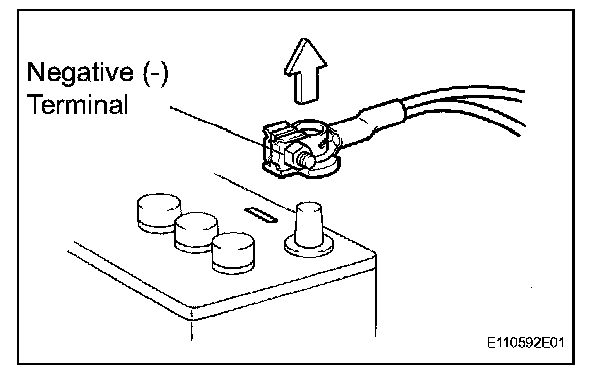

a. Before performing electrical work, disconnect the battery negative (-) terminal in order to prevent a short in the system.
b. When disconnecting and reconnecting the battery cable, turn the ignition switch and lighting switches off and loosen the terminal nut completely. Perform these operations without prying on the terminal.
2. EXPRESSIONS OF IGNITION SWITCH

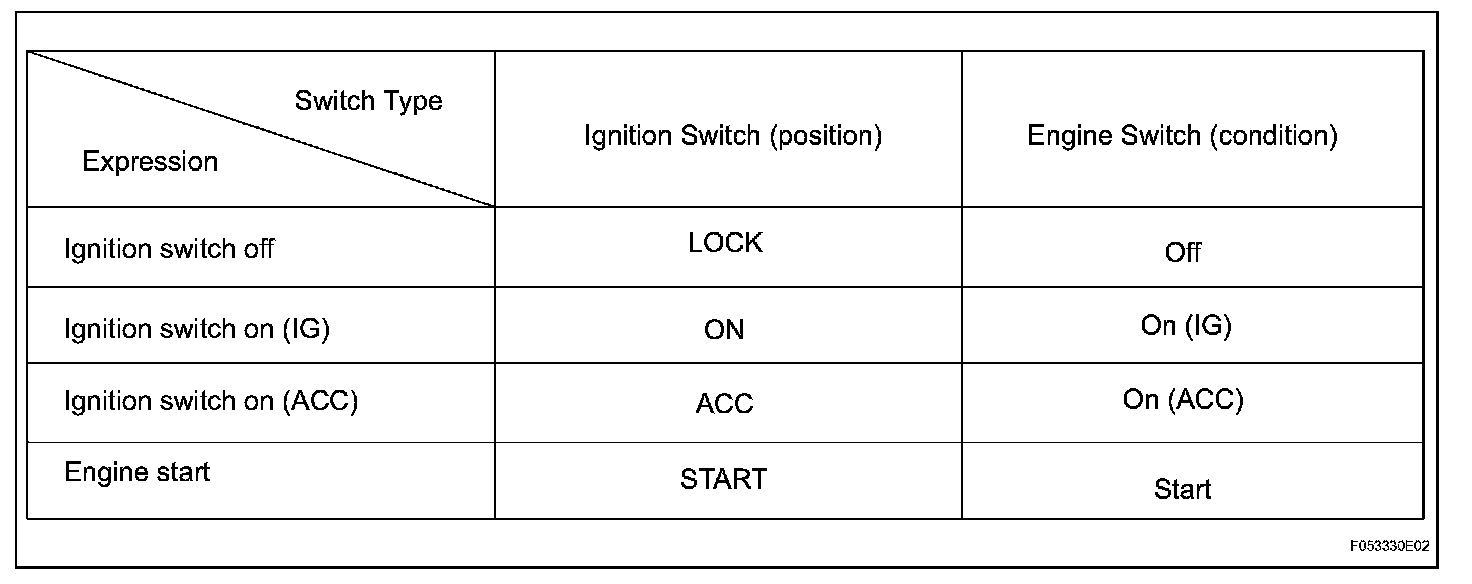

The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table given are used.
