Instrument Cluster / Carrier: Service and Repair
INSTALLATION1. INSTALL COMBINATION METER ASSEMBLY
a. Using the tilt and telescopic functions, fully lower and extend the steering wheel.

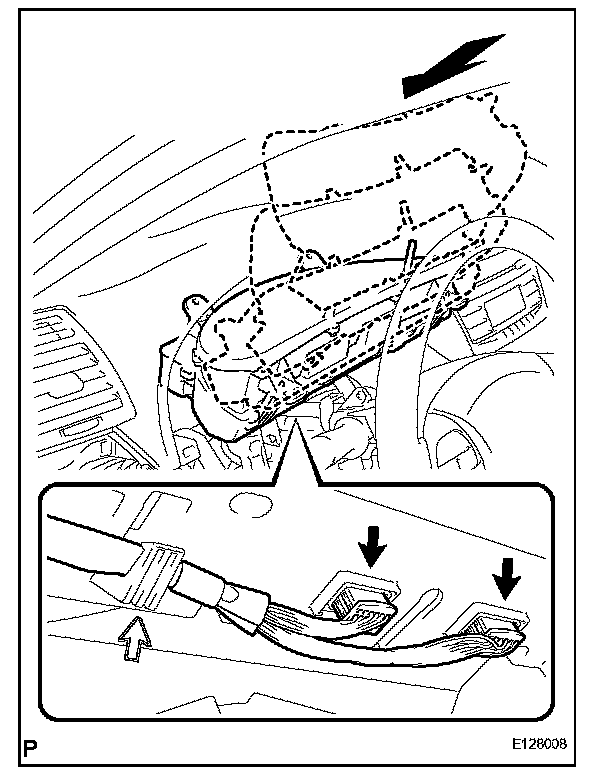

b. Connect the 2 connectors as shown in the illustration.
c. Secure the wire harness to the combination meter assembly.

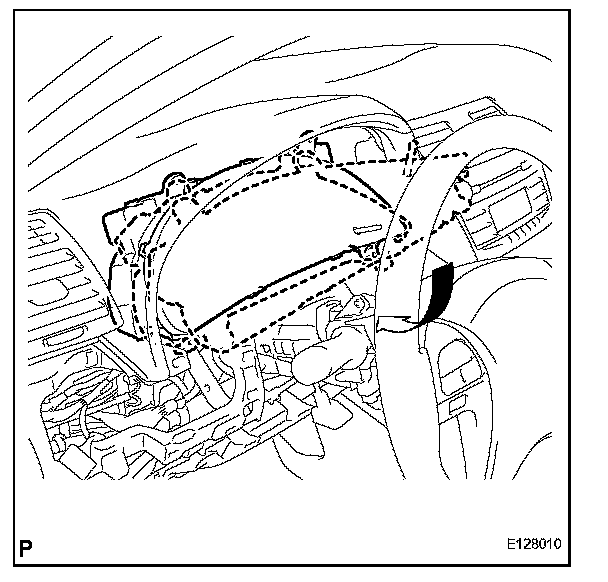

d. Install the combination meter assembly as shown in the illustration.

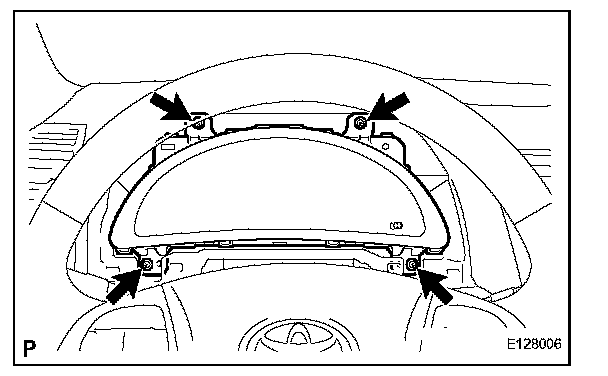

e. Install the 4 screws.

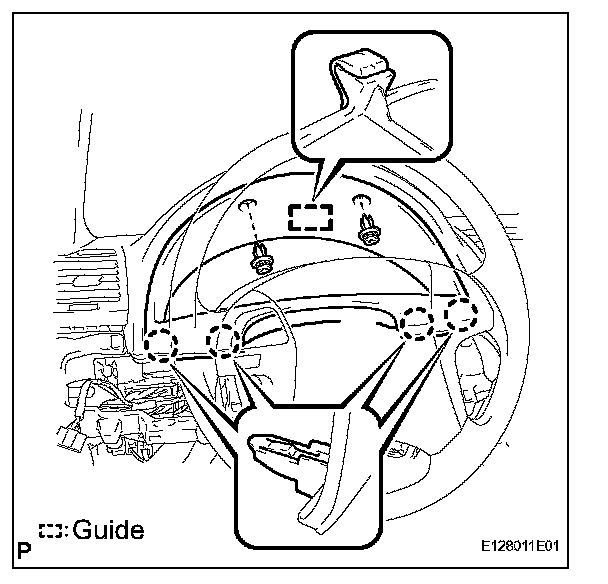

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL
a. Engage the 4 claws and the guide.
b. Install the instrument cluster finish panel with the 2 clips.
3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (W/O Smart Key System)
4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (W/ Smart Key System)
5. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

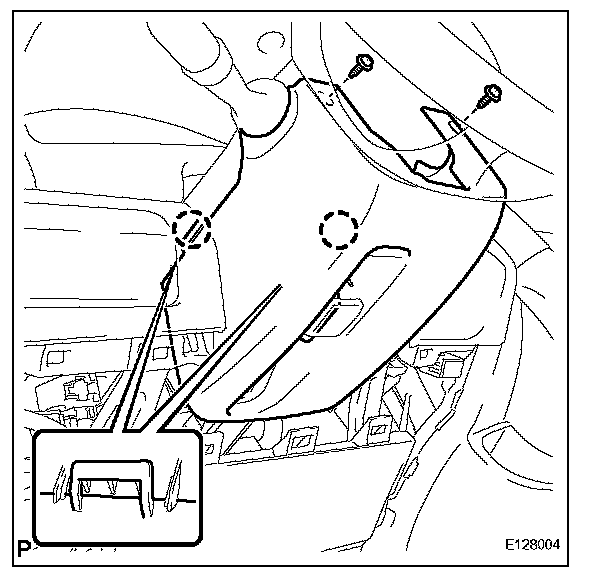

6. INSTALL STEERING COLUMN COVER
a. Engage the claw and install the upper steering column cover.
b. Engage the 2 claws.
c. Install the lower steering column cover with the 2 screws.
Torque: 2.0 N.m (20 kgf.cm, 18 in.lbf)
7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
a. Install the air hose and connect the connector.
b. Engage the claw and the 9 clips.
c. Connect the hood lock control cable assembly.
d. Install the lower instrument panel finish panel LH with the screw and bolt.
8. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
9. INSTALL FRONT DOOR SCUFF PLATE LH
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
