Pinout Values and Diagnostic Parameters

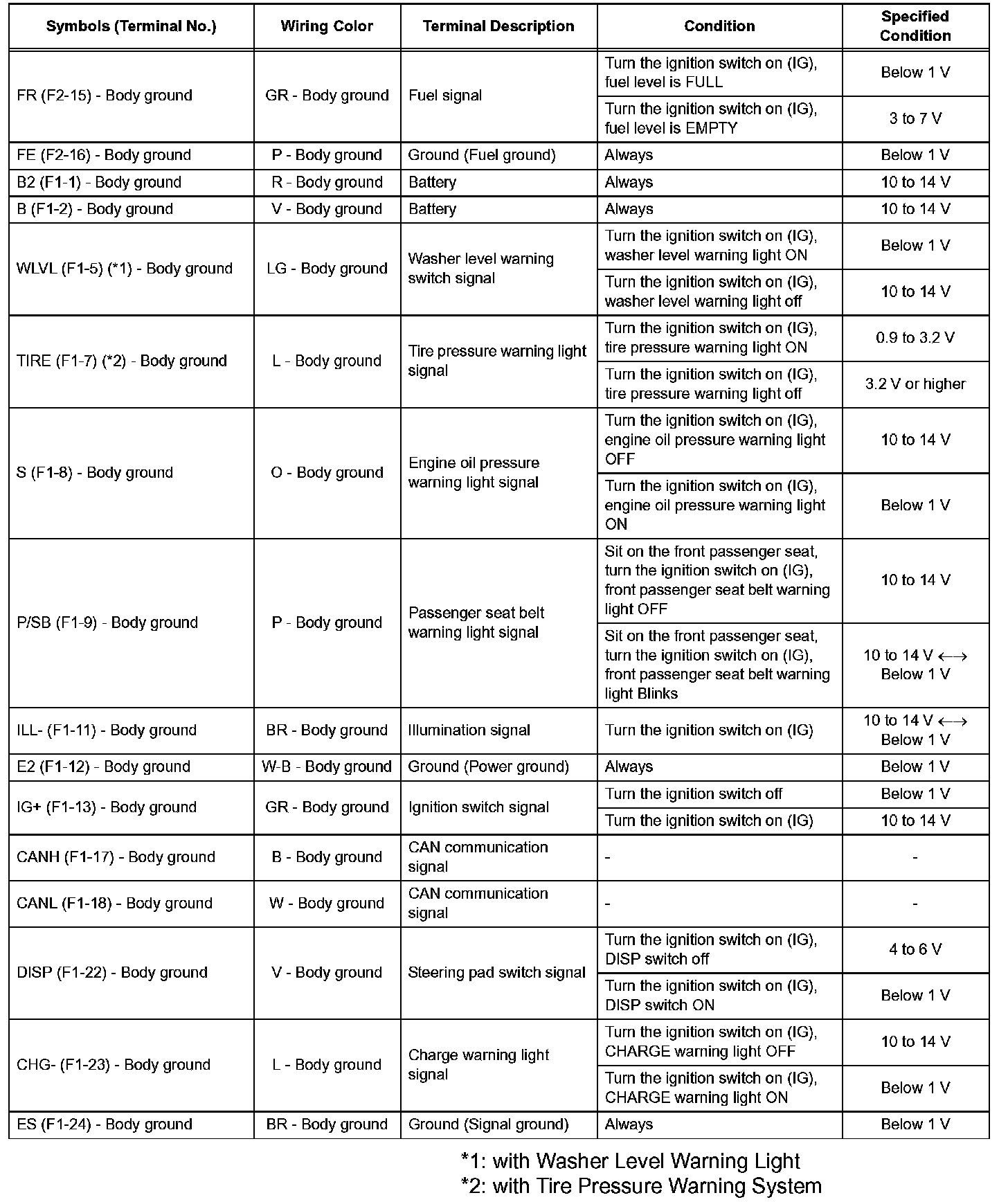

Terminals Of Control Module/Pinouts-Combination Meter Assembly (Part 1):

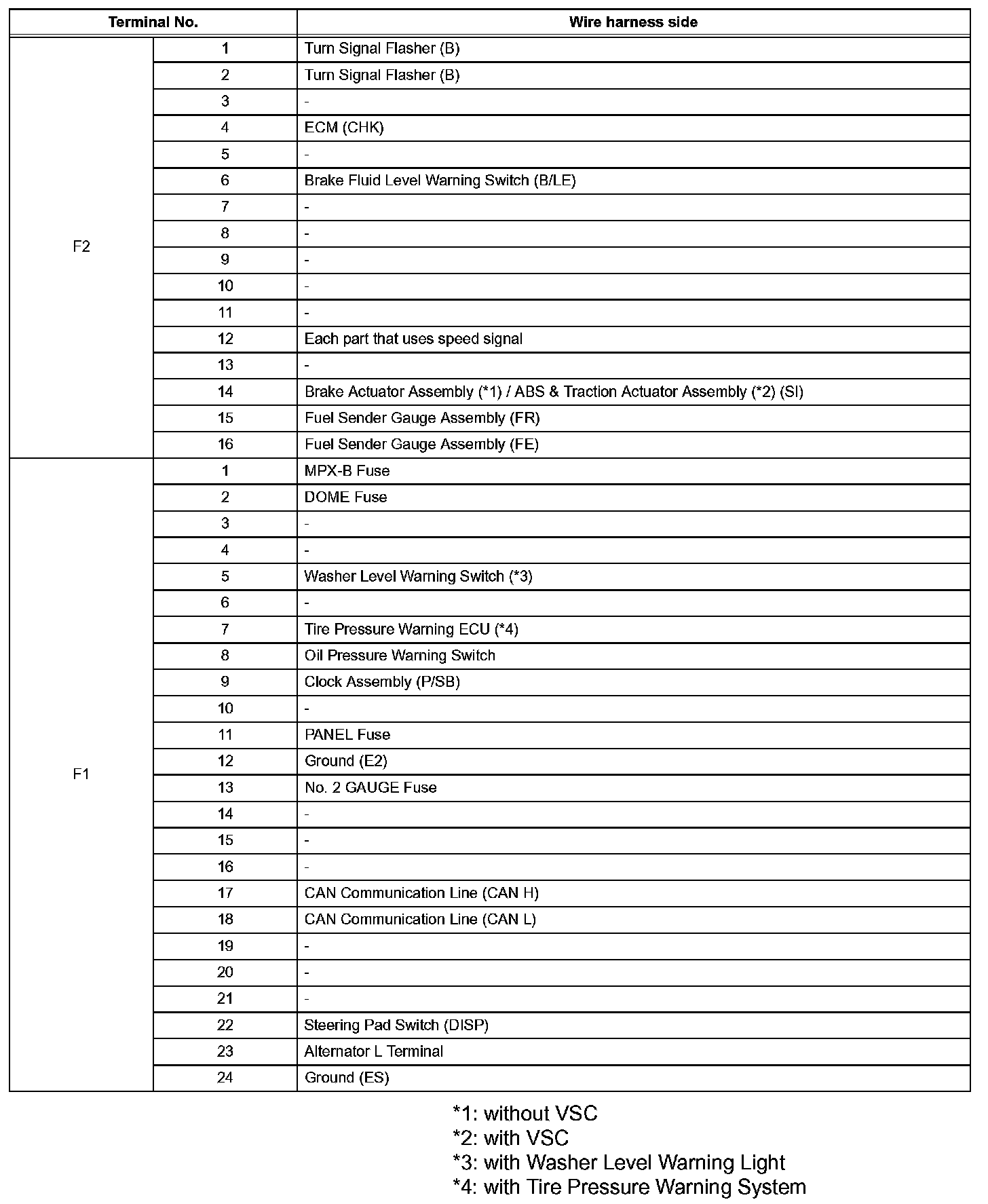

Terminals Of Control Module/Pinouts-Combination Meter Assembly (Part 2):

Oscilloscope Waveforms:

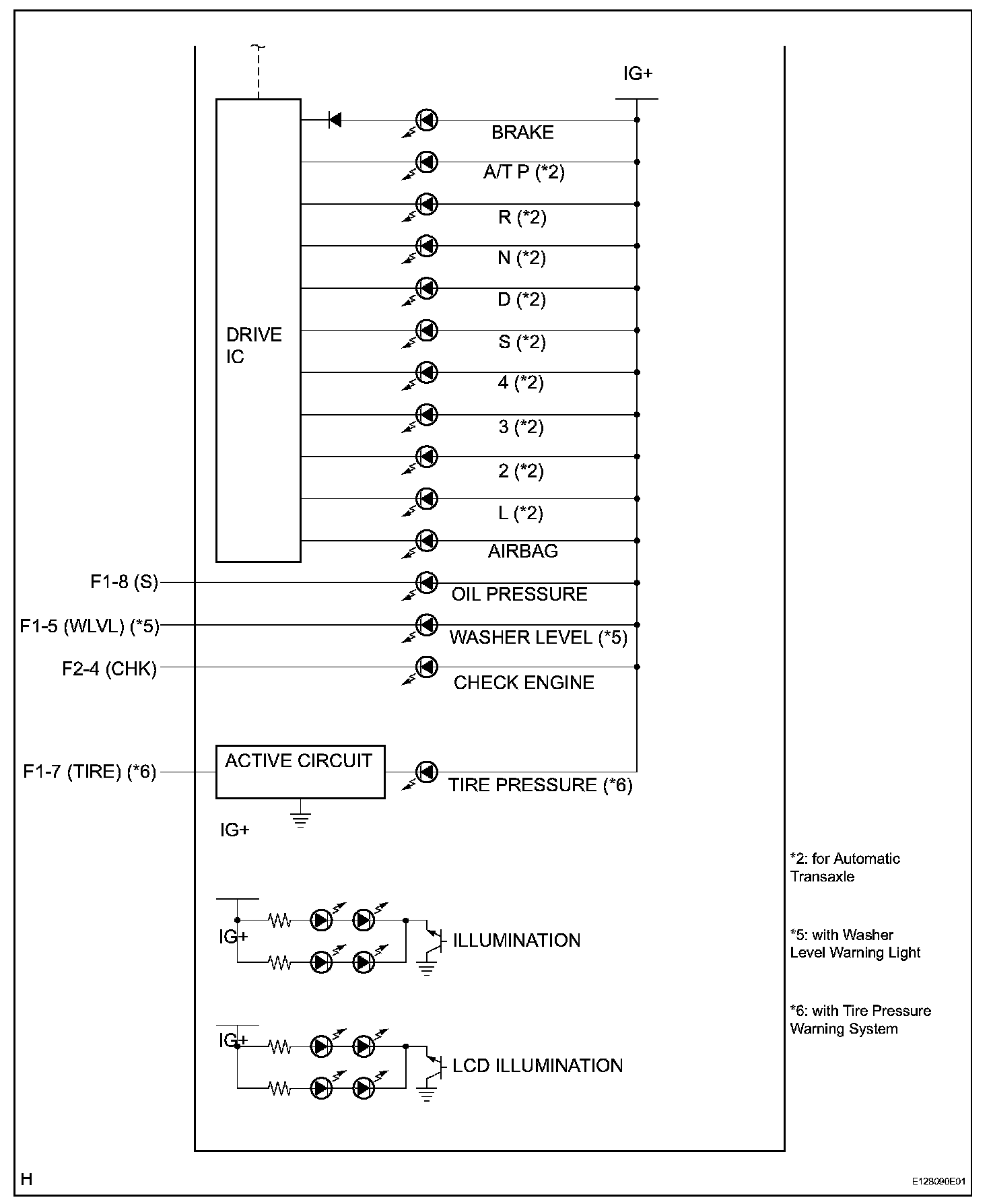

Terminals Of Control Module/Pinouts-Combination Meter Inner Circuit (Part 1):

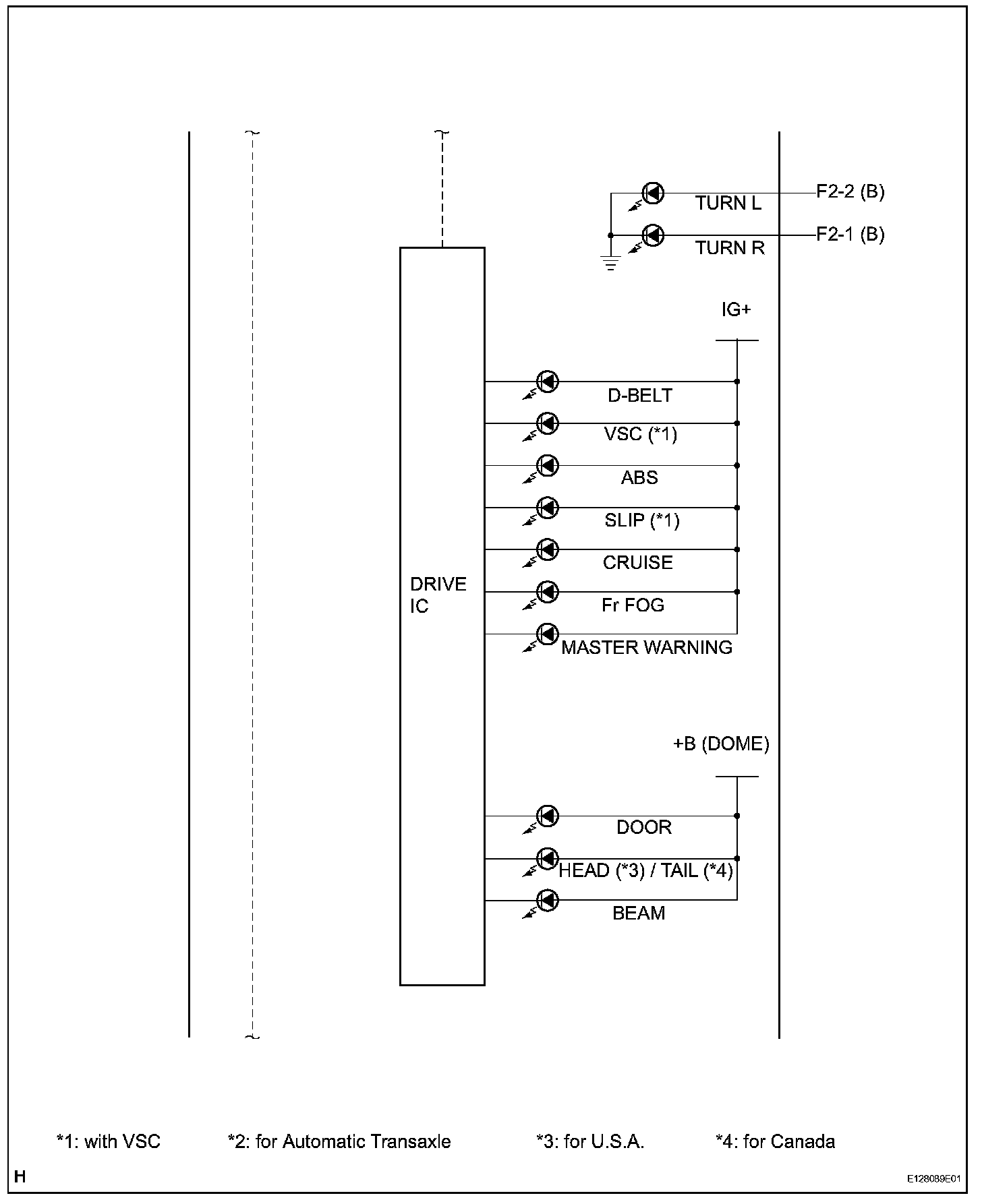

Terminals Of Control Module/Pinouts-Combination Meter Inner Circuit (Part 2):

Terminals Of Control Module/Pinouts-Combination Meter Inner Circuit (Part 3):

Terminals Of Control Module/Pinouts-Combination Meter Inner Circuit (Part 4):
