Customize Parameters

CUSTOMIZE PARAMETERS




1. COMBINATION METER ASSEMBLY

NOTE: Be sure to record the current value before customizing.

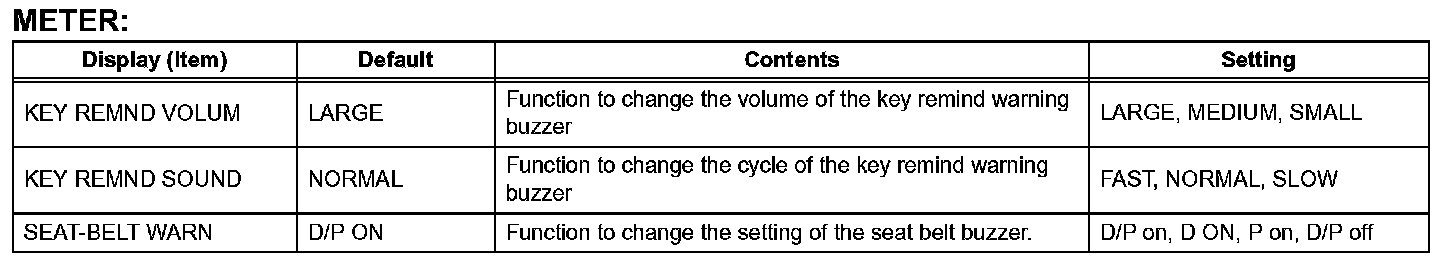

HINT: The given items can be customized using intelligent tester.

HINT: This setting is only valid for the buzzer which sounds at the 5 km/h (3 mph) or more.

2. SEAT BELT BUZZER ON/OFF SETTING (Procedure "A")
The seat belt buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver and front passenger side seat belt buzzers.

NOTE:
- These buzzers should be on for safe driving. Perform these procedures only if it is necessary to set the buzzer off (disabled).
- When either the battery cable or the combination meter connector is disconnected, these buzzers are set on (enabled).
- Odometer returns to 0 after starting this procedure, although it is not displayed.

HINT: "b-oFF" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The seat belt buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that the buzzer ON/OFF setting is complete. If it is not complete, start from step 1 again.

a. Driver and front passenger side seat belt buzzers
1. Turn the ignition switch on (IG).
2. Press the ODO/TRIP switch until the odometer displays "ODO".
3. Ignition switch off.
4. Turn the ignition switch on (IG).
5. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
6. Continue holding down the ODO/TRIP switch and fasten the driver side seat belt.
7. Check that the odometer displays either "b-on" or "b-oFF".
8. Press the ODO/TRIP switch to change the display to "b-oFF".
9. Ignition switch off.
10. Turn the ignition switch on (IG).
11. Check that no buzzer sounds.

b. Front passenger side seat belt buzzer
1. Turn the ignition switch on (IG).
2. Press the ODO/TRIP switch until the odometer displays "ODO".
3. Ignition switch off.
4. Turn the ignition switch on (IG).
5. Sit in the front passenger seat. Press the ODO/ TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
6. Sit in the front passenger seat. Continue holding down the ODO/TRIP switch and fasten the front passenger side seat belt.
7. Check that the odometer displays either "b-on" or "b-oFF".
8. Press the ODO/TRIP switch to change the display to "b-oFF".
9. Ignition switch off.
10. Turn the ignition switch on (IG).
11. Check that no buzzer sounds.
