Removal and Installation

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL (for 2GR-FE)
2. REMOVE FRONT BUMPER ASSEMBLY




3. REMOVE FOG LIGHT ASSEMBLY

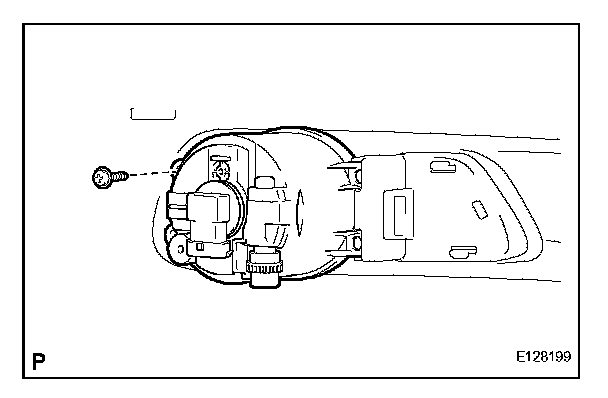

a. Remove the screw and the fog light assembly.

INSTALLATION




1. INSTALL FOG LIGHT ASSEMBLY
a. Install the fog light assembly with the screw.

Torque: 1.6 N.m (16 kgf.cm, 14 in.lbf)

2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE)
4. VEHICLE PREPARATION FOR FOG LIGHT AIM
5. PREPARATION FOR FOG LIGHT AIMING
6. FOG LIGHT AIMING INSPECTION
7. FOG LIGHT AIMING ADJUSTMENT
