Disassembly and Reassembly

DISASSEMBLY

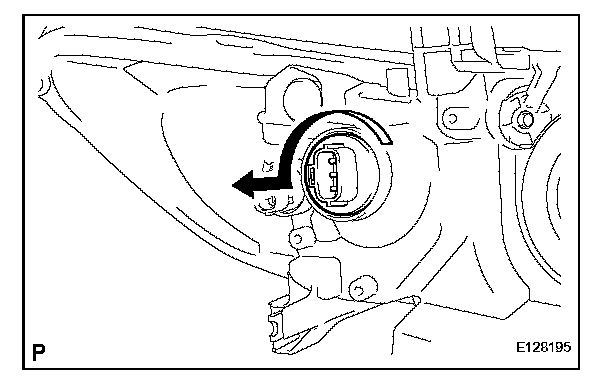

1. REMOVE NO. 2 HEADLIGHT BULB
a. Remove the No. 2 headlight bulb as shown in the illustration.

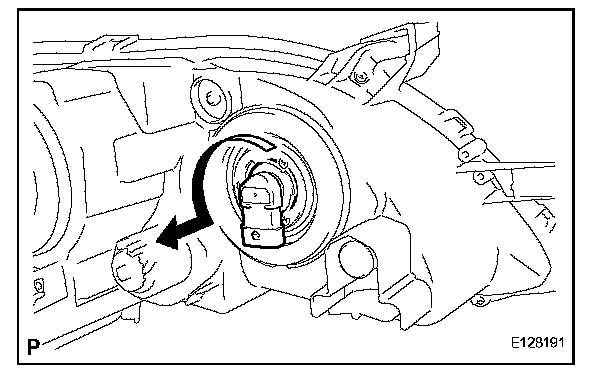

2. REMOVE NO. 1 HEADLIGHT BULB
a. Remove the No. 1 headlight bulb as shown in the illustration.

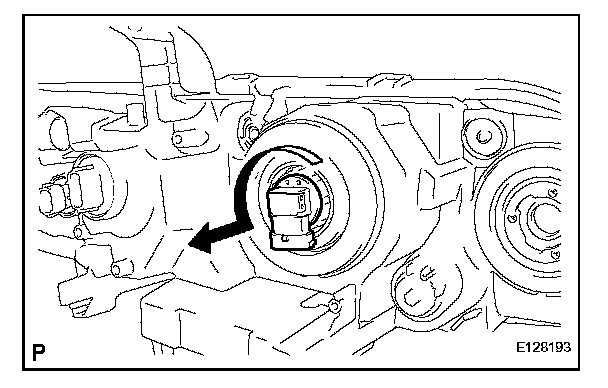

3. REMOVE FRONT TURN SIGNAL LIGHT BULB
a. Turn the front turn signal light bulb and the front turn signal light socket in the direction indicated by the arrow and remove them as a unit.
b. Remove the front turn signal light bulb from the front turn signal light socket.




4. REMOVE FRONT SIDE MARKER LIGHT BULB
a. Turn the front side marker light bulb and the front side marker light socket in the direction indicated by the arrow and remove them as a unit.
b. Remove the front side marker light bulb from the front side marker light socket.

REASSEMBLY

1. INSTALL FRONT SIDE MARKER LIGHT BULB
a. Install the front side marker light bulb to the front side marker light socket.




b. Turn the front side marker light bulb and front side marker light socket in the direction indicated by the arrow and install them as a unit.

2. INSTALL FRONT TURN SIGNAL LIGHT BULB
a. Install the front turn signal light bulb to the front turn signal light socket.




b. Turn the front turn signal light bulb and front turn signal light socket in the direction indicated by the arrow and install them as a unit.




3. INSTALL NO. 1 HEADLIGHT BULB
a. Install the No. 1 headlight bulb as shown in the illustration.




4. INSTALL NO. 2 HEADLIGHT BULB
a. Install the No. 2 headlight bulb as shown in the illustration.
