High Pitched Horn

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL (for 2GR-FE)
2. REMOVE FRONT BUMPER ASSEMBLY

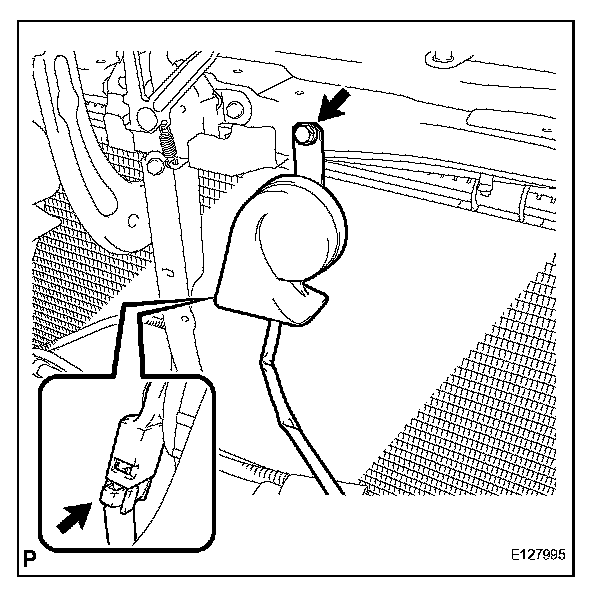

3. REMOVE HIGH PITCHED HORN ASSEMBLY
a. Disconnect the connector.
b. Remove the bolt and the high pitched horn assembly.

INSTALLATION




1. INSTALL HIGH PITCHED HORN ASSEMBLY
a. Install the high pitched horn assembly with the bolt.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

b. Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE)
4. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light)
5. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light)
6. FOG LIGHT AIMING INSPECTION (w/ Fog Light)
7. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light)
