Removal and Installation
REMOVAL1. REMOVE REAR BUMPER ASSEMBLY (w/o Rear Lower Spoiler)
2. REMOVE REAR FLOOR BOARD (w/ Rear Lower Spoiler)
3. REMOVE REAR BUMPER ASSEMBLY (w/ Rear Lower Spoiler)
4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
5. REMOVE SPARE WHEEL COVER CLAMP
6. REMOVE SPARE WHEEL COVER ASSEMBLY
7. REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY
8. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
9. REMOVE REAR FLOOR FINISH PLATE
10. REMOVE REAR COMBINATION LIGHT ASSEMBLY

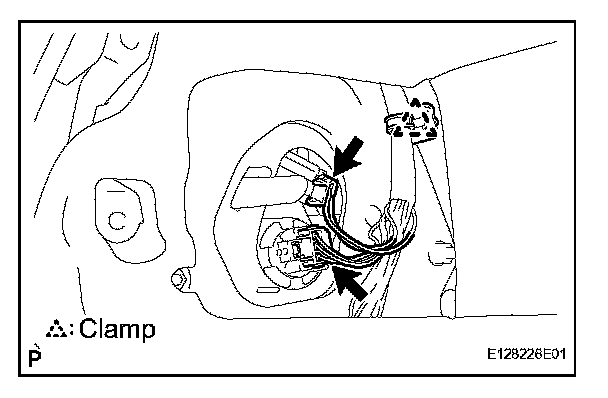

a. Disconnect the 2 connectors and clamp.
b. Remove the 3 nuts.

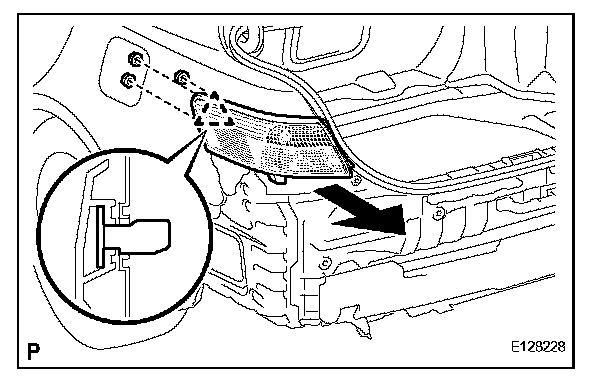

c. Disengage the clip and remove the rear combination light assembly.
11. REMOVE LUGGAGE COMPARTMENT DOOR COVER
12. REMOVE REAR LIGHT ASSEMBLY

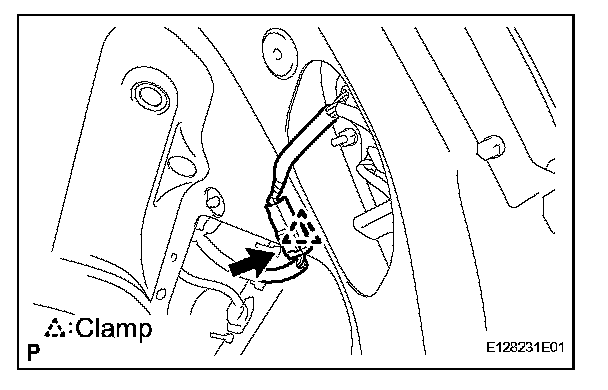

a. Disconnect the connector and clamp.
b. Remove the 3 nuts.

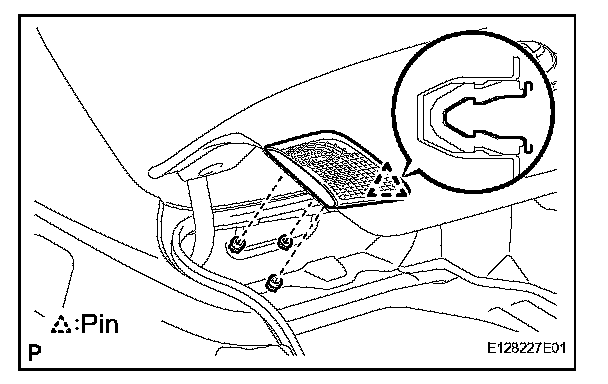

c. Disengage the pin and remove the rear light assembly.
HINT: Be careful not to break the engaging portion of the pin when removing the rear light assembly.
INSTALLATION
1. INSTALL REAR LIGHT ASSEMBLY
a. Engage the pin and install the rear light assembly.
b. Install the 3 nuts.
Torque: 3.6 N.m (37 kgf.cm, 32 in.lbf)

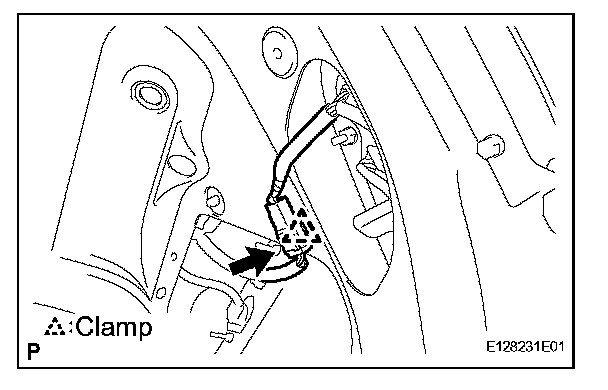

c. Connect the connector and clamp.
2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
3. INSTALL REAR COMBINATION LIGHT ASSEMBLY

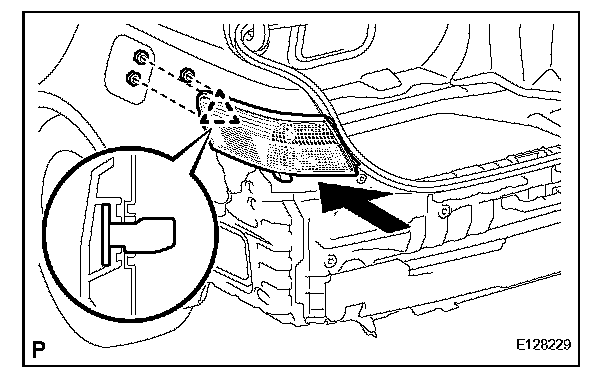

a. Engage the clip and install the rear combination light assembly.
b. Install the 3 nuts.
Torque: 3.6 N.m (37 kgf.cm, 32 in.lbf)
c. Connect the 2 connectors and clamp.
4. INSTALL REAR FLOOR FINISH PLATE
5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
6. INSTALL LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY
7. INSTALL SPARE WHEEL COVER ASSEMBLY
8. INSTALL SPARE WHEEL COVER CLAMP
9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
10. INSTALL REAR BUMPER ASSEMBLY (w/o Rear Lower Spoiler)
11. INSTALL REAR BUMPER ASSEMBLY (w/ Rear Lower Spoiler)
12. INSTALL REAR FLOOR BOARD (w/ Rear Lower Spoiler)
