Door Courtesy Switch Circuit

Door Courtesy Switch Circuit

DESCRIPTION

The main body ECU detects the condition of the door courtesy switches.

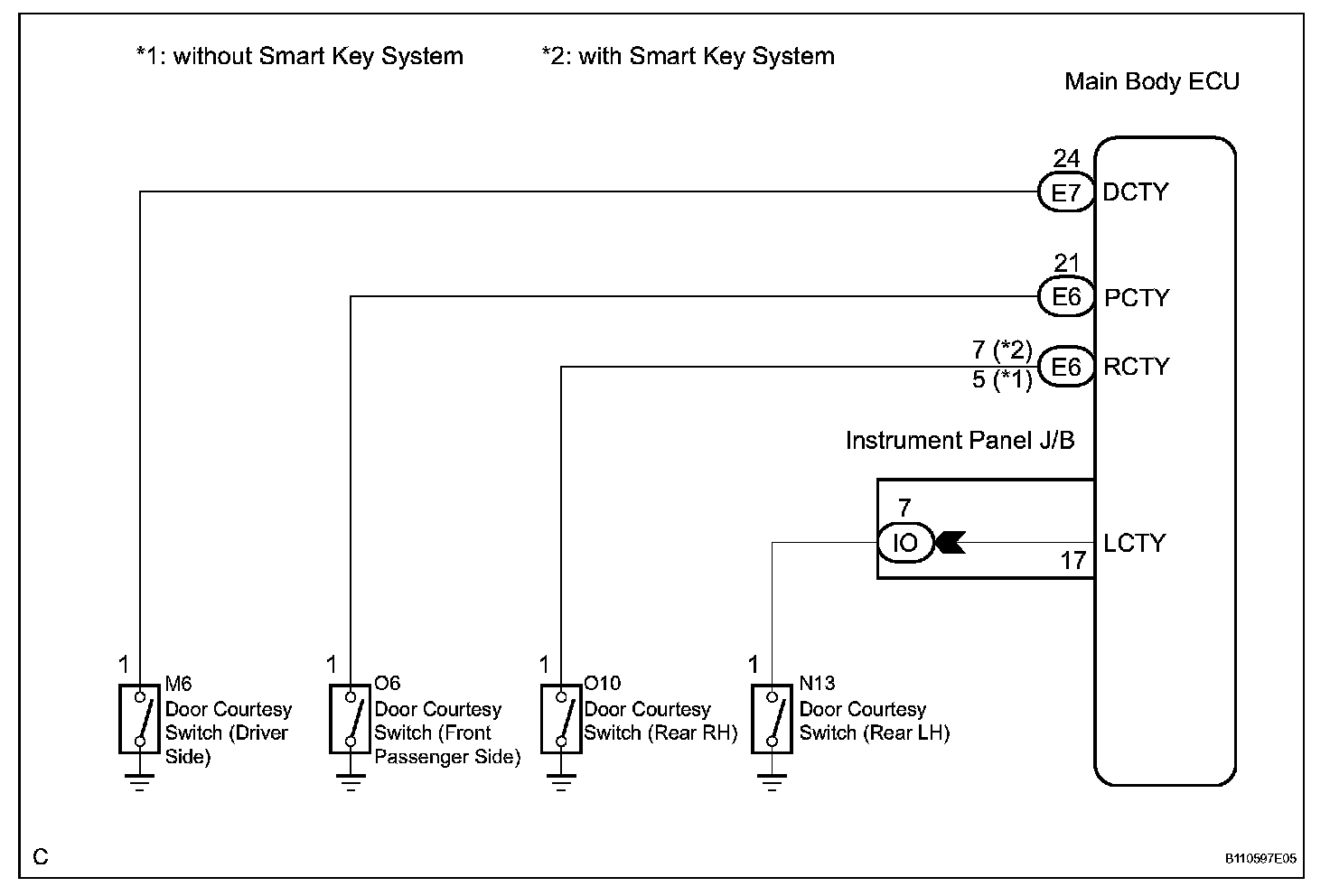

Wiring Diagram:

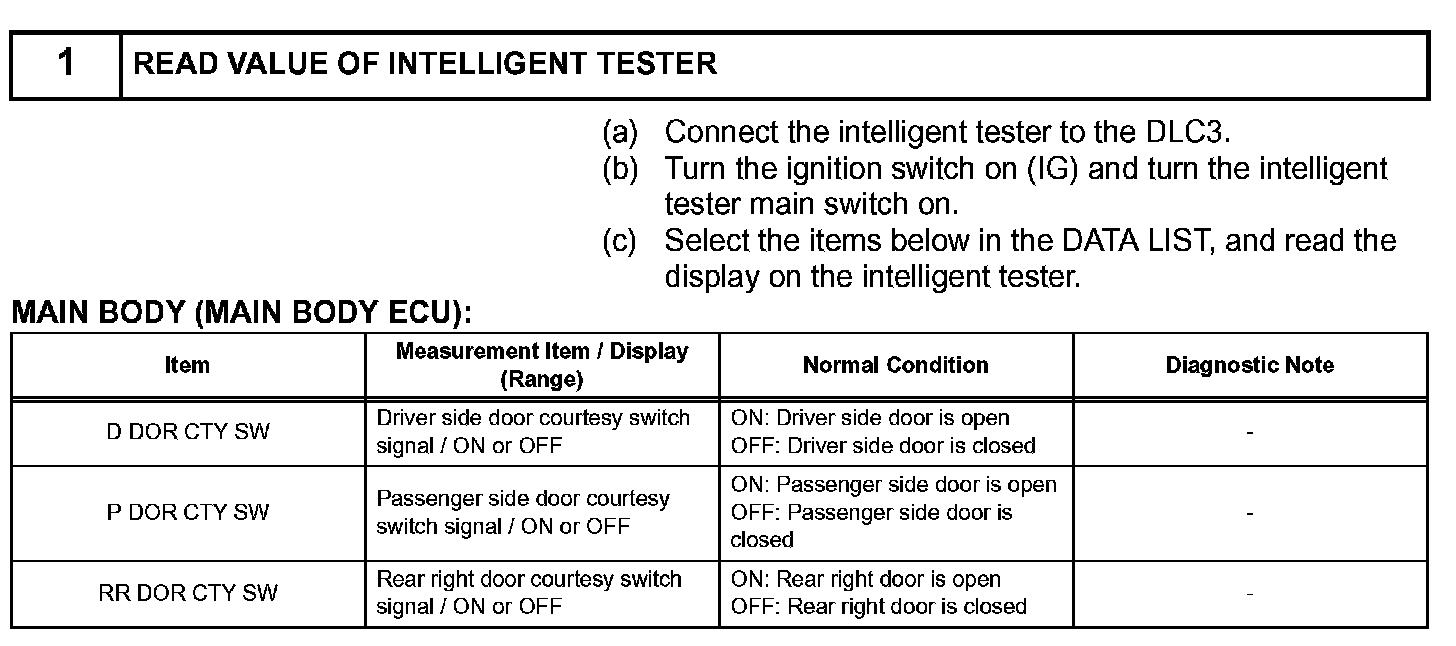

Step 1:

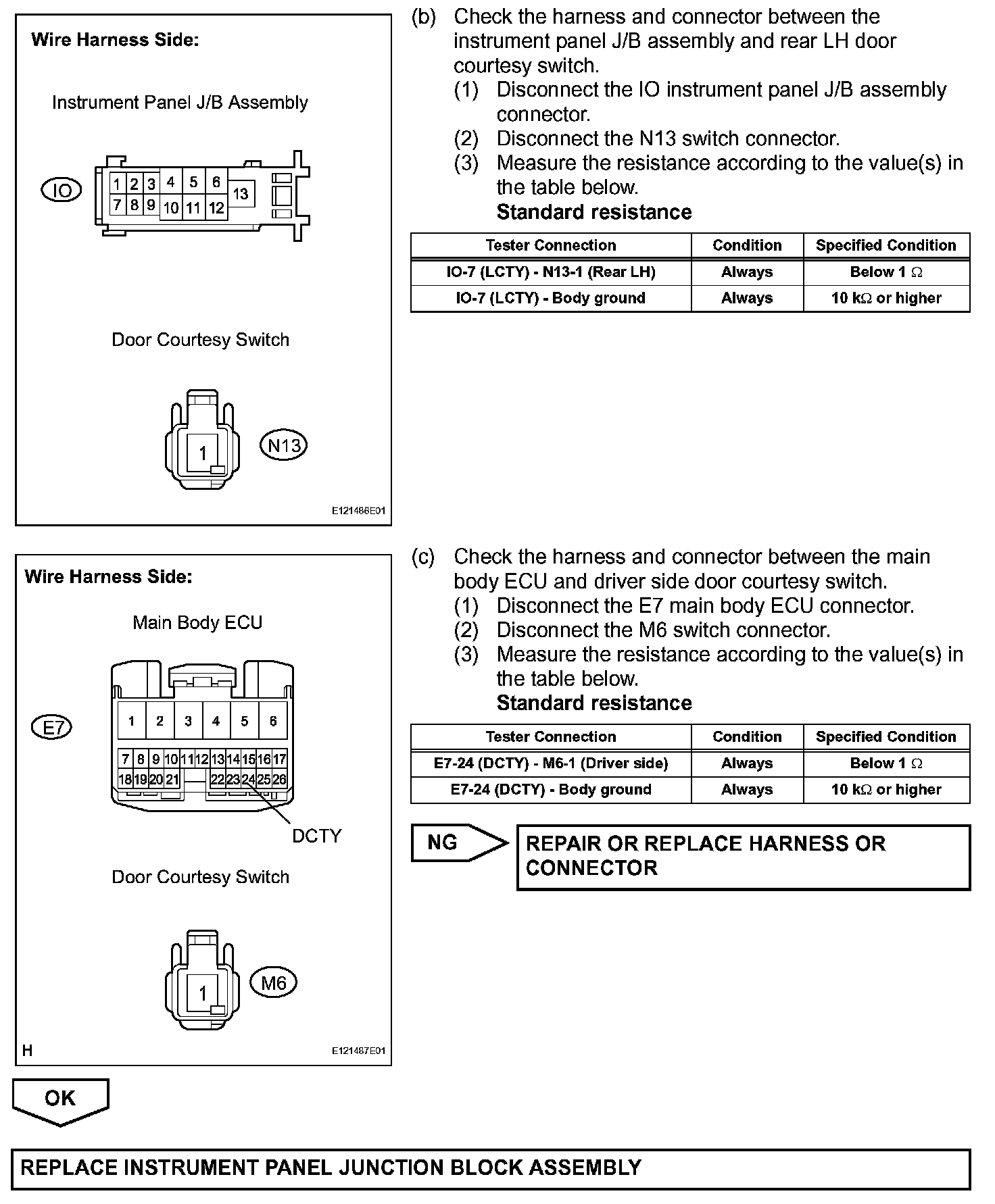

Step 1(Continued)-3:

Step 3(Continued):

INSPECTION PROCEDURE
