Headlight (HI-BEAM) Circuit
Headlight (HI-BEAM) CircuitDESCRIPTION
The main body ECU receives dimmer switch HIGH signal and light control switch HEAD signal from the headlight dimmer switch assembly, and turns the high beam headlights on.
HINT: When a short circuit occurs between the power distributor (engine room J/B assembly) and high beam headlight, the power distributor stops the DRL relay operation (Fail-safe function).

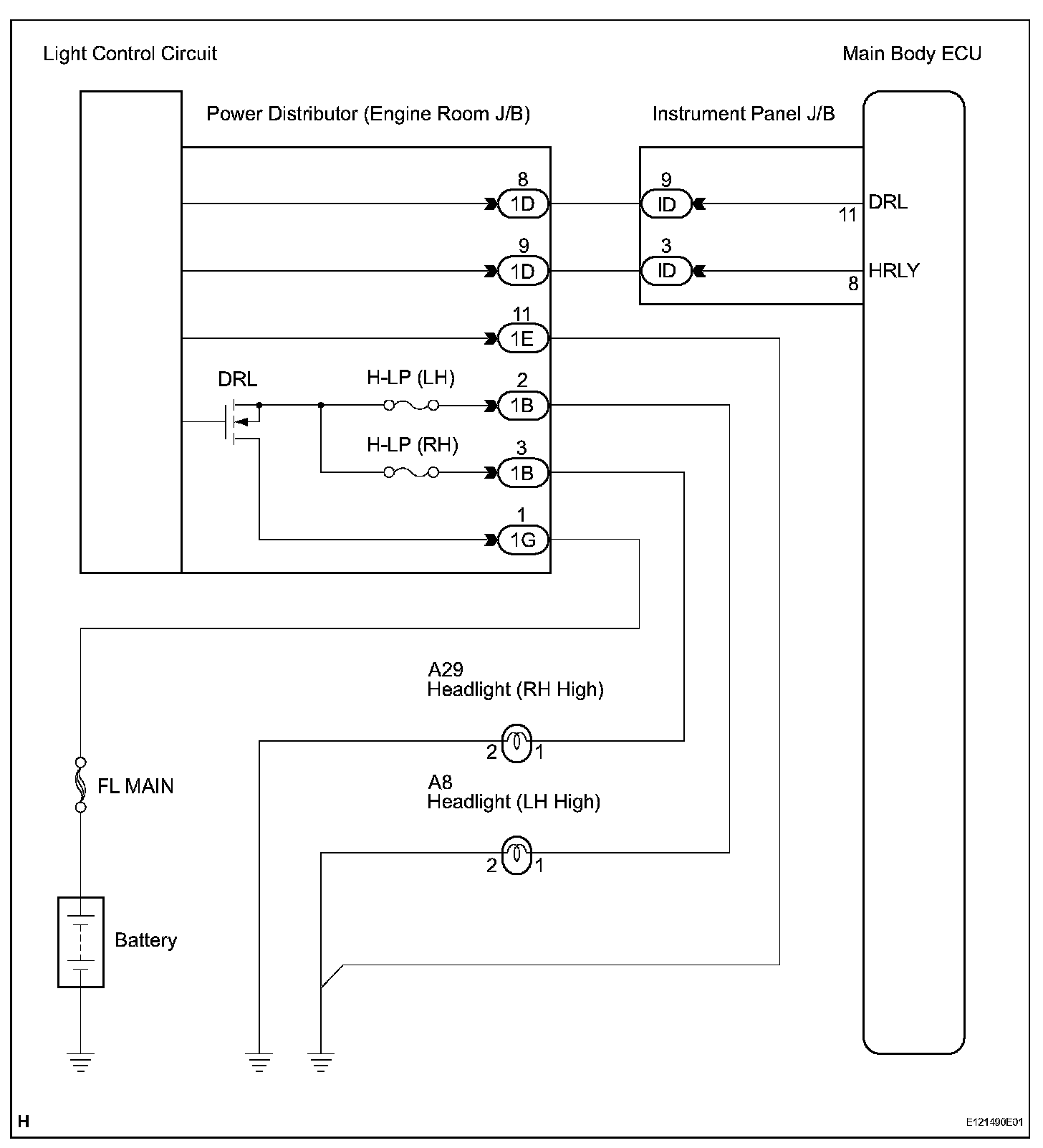

Wiring Diagram:
Step 1-3:
Step 3(Continued)-5:

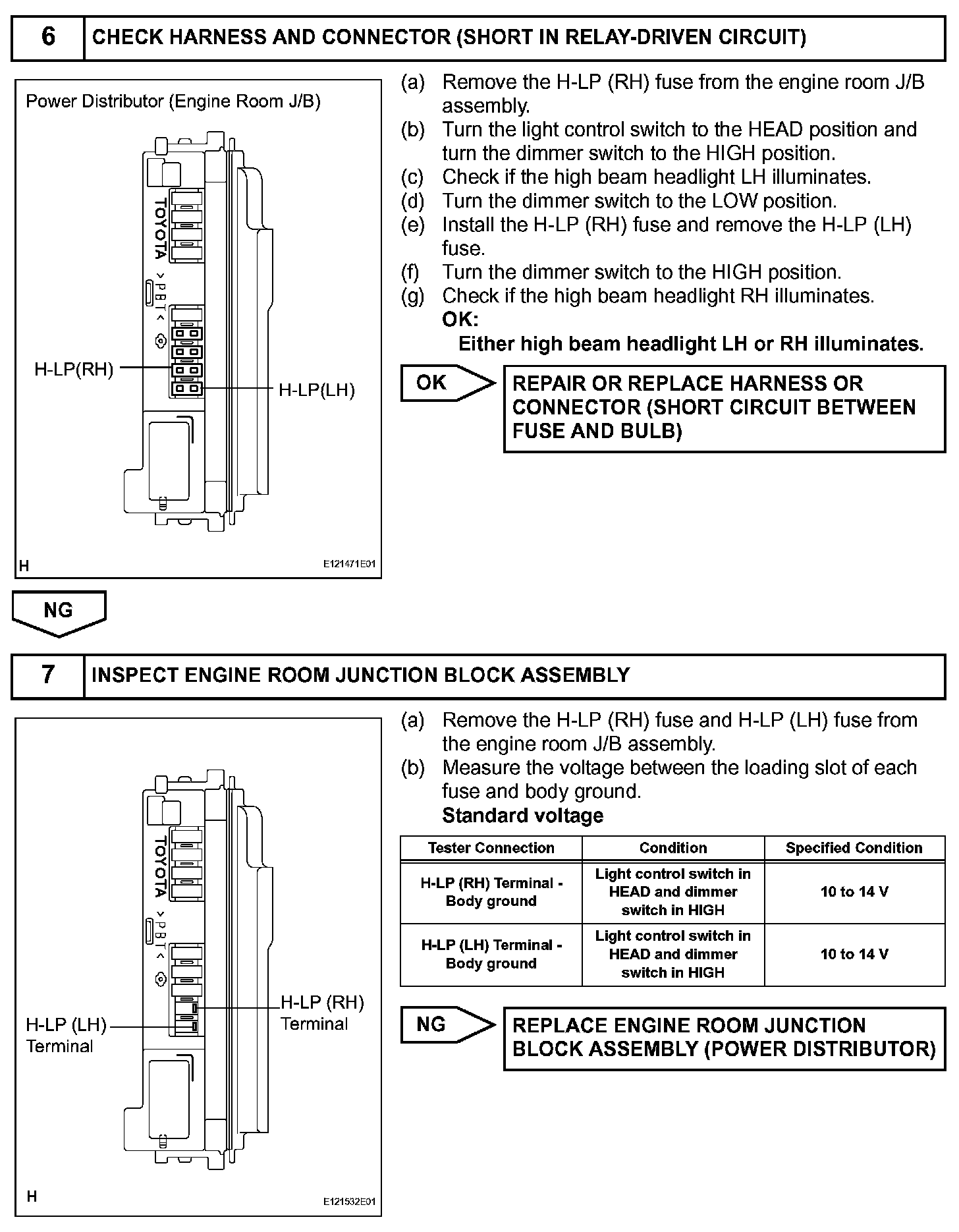

Step 6-7:
Step 7(Continued):
INSPECTION PROCEDURE
