Trunk Lamp: Service and Repair

REMOVAL




1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

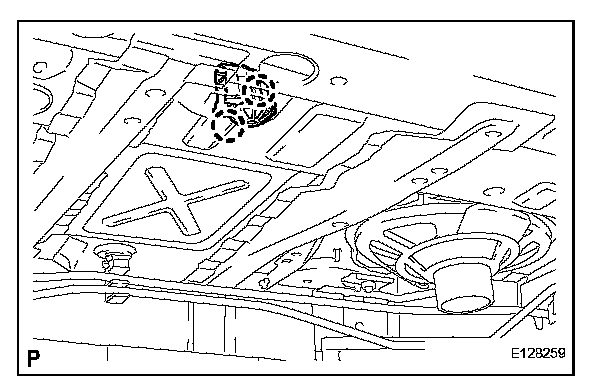

a. Disengage the 2 claws and disconnect the No. 1 luggage compartment light assembly.
b. Disconnect the connector and remove the No. 1 luggage compartment light assembly.

INSTALLATION




1. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
a. Connect the connector.
b. Engage the 2 claws and install the No. 1 luggage compartment light assembly.
