Computers and Control Systems: Description and Operation

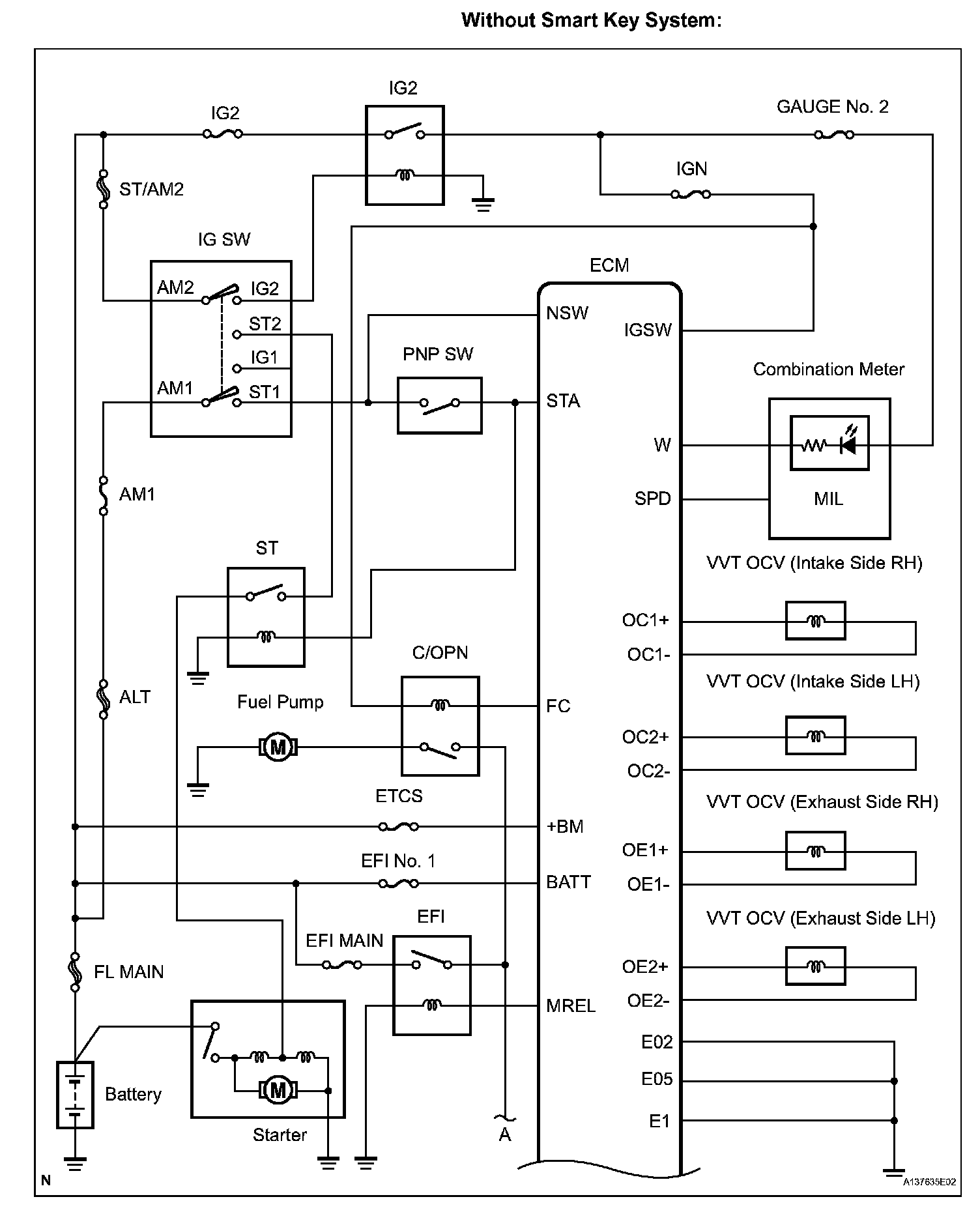

System Diagram-Without Smart Key System (Part 1):

System Diagram-Without Smart Key System (Part 2):

System Diagram-Without Smart Key System (Part 3):

System Diagram-Without Smart Key System (Part 4):

System Diagram-Without Smart Key System (Part 5):

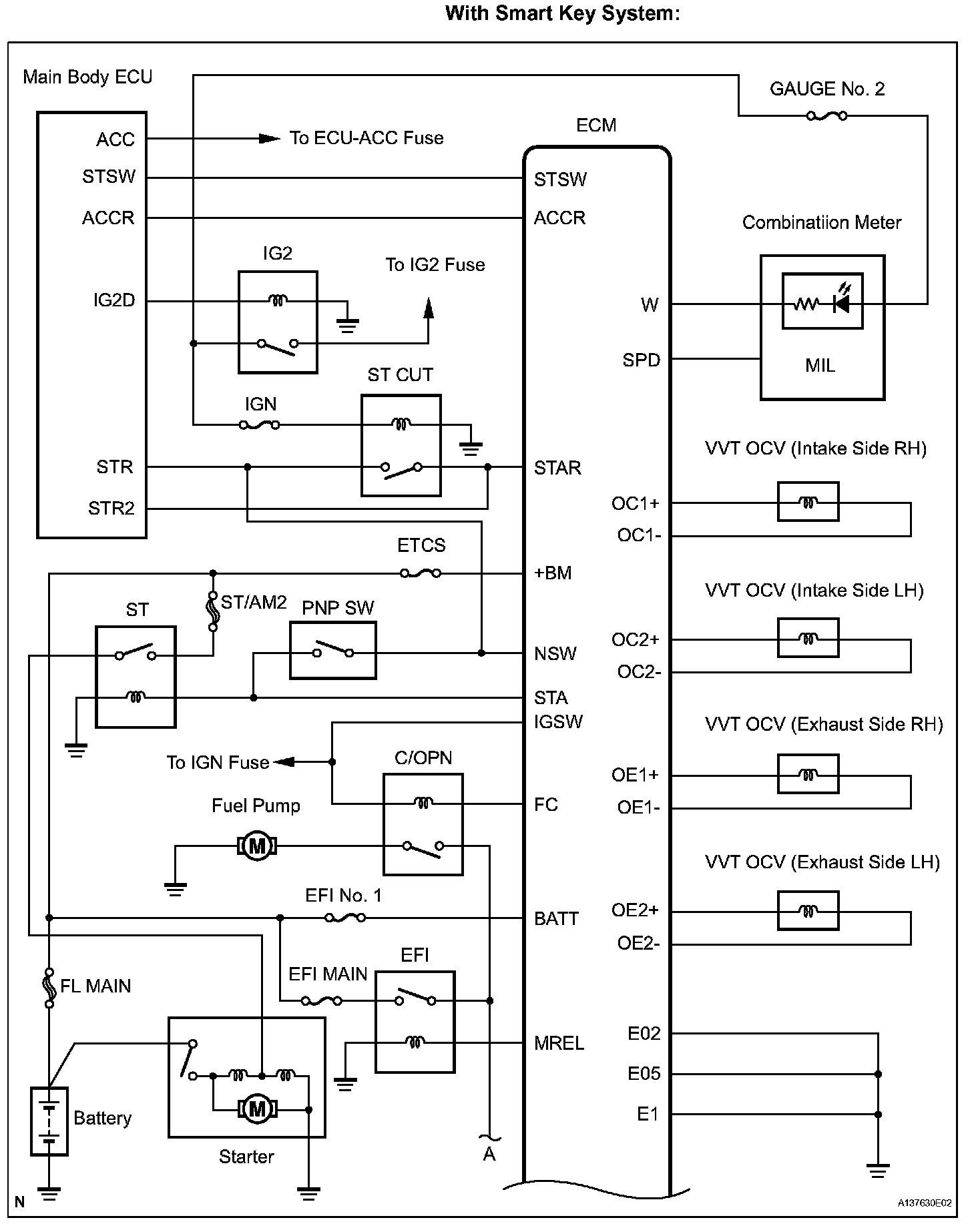

System Diagram-With Smart Key System (Part 1):

System Diagram-With Smart Key System (Part 2):

System Diagram-With Smart Key System (Part 3):

System Diagram-With Smart Key System (Part 4):

System Diagram-With Smart Key System (Part 5):
