Seat Belt Systems: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
2. REMOVE FRONT SEAT HEADREST ASSEMBLY
3. REMOVE SEAT TRACK COVER (for Manual Seat)
4. REMOVE INNER SEAT TRACK BRACKET COVER (for Manual Seat)
5. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)
6. REMOVE SEAT TRACK COVER (for Power Seat)
7. REMOVE INNER SEAT TRACK BRACKET COVER (for Power Seat)
8. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)
9. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)

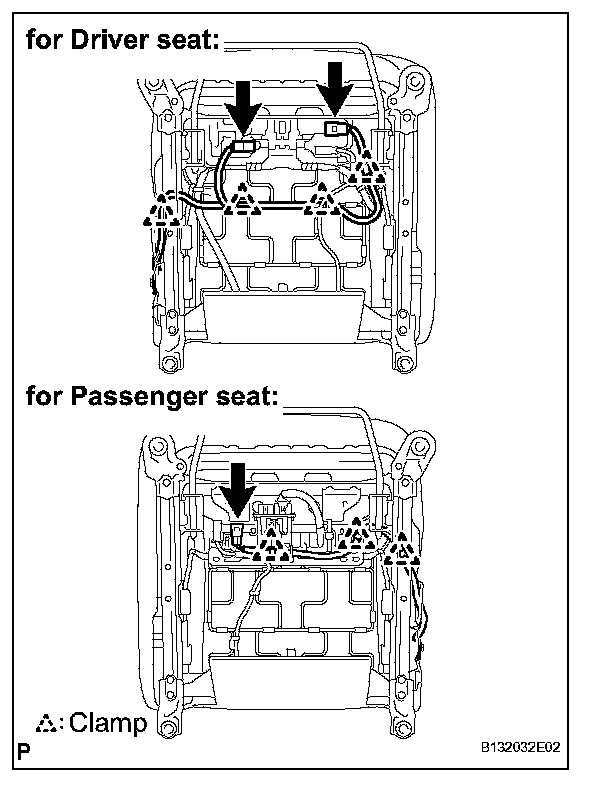

a. for Driver seat:
1. Disconnect the connectors and disengage the 4 clamps.
b. for Passenger seat:
1. Disconnect the connector and disengage the 3 clamps.

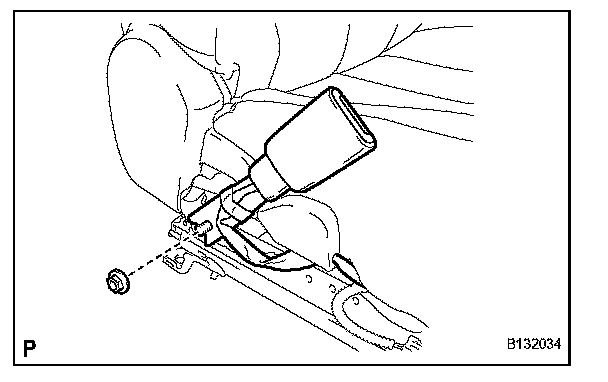

c. Remove the nut and front seat inner belt assembly.
10. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)
a. for Driver seat:
1. Disconnect the connectors and disengage the 4 clamps.
b. for Passenger seat:
1. Disconnect the connector and disengage the 3 clamps.
c. Remove the nut and front seat inner belt assembly.
INSTALLATION
1. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)
a. Install the front seat inner belt assembly with the nut.
Torque: 42 N.m (428 kgf. cm, 31 ft.lbf)

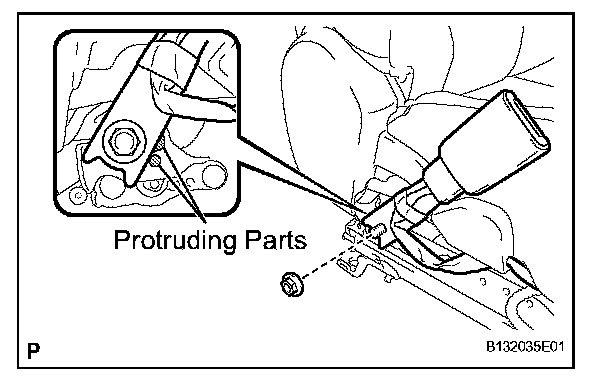

NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.
b. for Driver seat:
1. Connect the connectors and engage the 4 clamps.
c. for Passenger seat:
1. Connect the connector and engage the 3 clamps.
2. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)
a. Install the front seat inner belt assembly with the nut.
Torque: 42 N.m (428 kgf. cm, 31 ft.lbf)
NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.
b. for Driver seat:
1. Connect the connectors and engage the 4 clamps.
c. for Passenger seat:
1. Connect the connector and engage the 3 clamps.
3. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)
4. INSTALL INNER SEAT TRACK BRACKET COVER (for Manual Seat)
5. INSTALL SEAT TRACK COVER (for Manual Seat)
6. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
7. INSTALL INNER SEAT TRACK BRACKET COVER (for Power Seat)
8. INSTALL SEAT TRACK COVER (for Power Seat)
9. INSTALL FRONT SEAT HEADREST ASSEMBLY
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)
11. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)
12. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
13. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)
14. INSPECT SRS WARNING LIGHT
