Front

Front Wheel Alignment

VEHICLE HEIGHT

Vehicle height for USA and Canada:

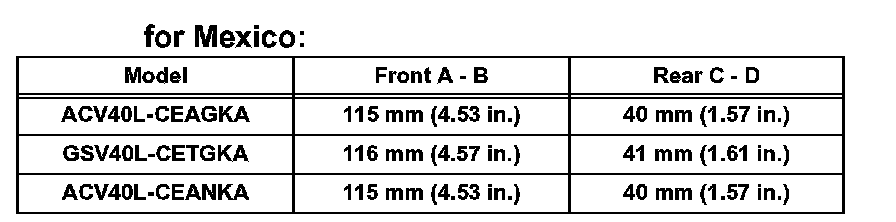

Vehicle height for Mexico:

TOE-IN

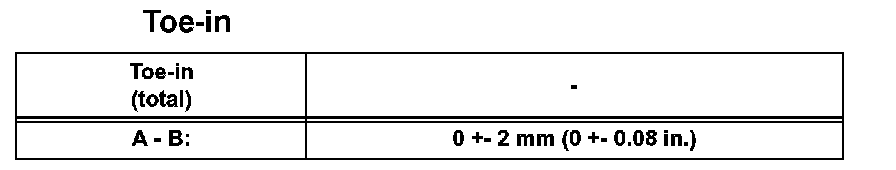

Toe-in:

WHEEL ANGLE

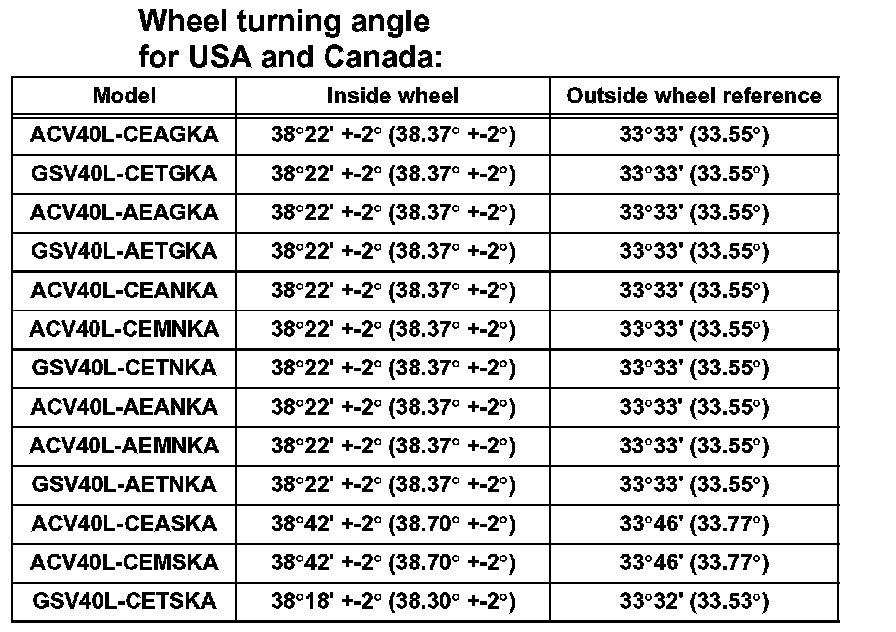

Wheel turning angle for USA and Canada:

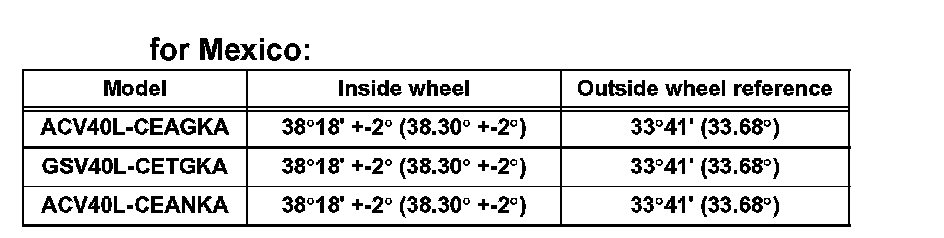

Wheel turning angle for Mexico:

CAMBER, CASTER AND STEERING AXIS INCLINATION

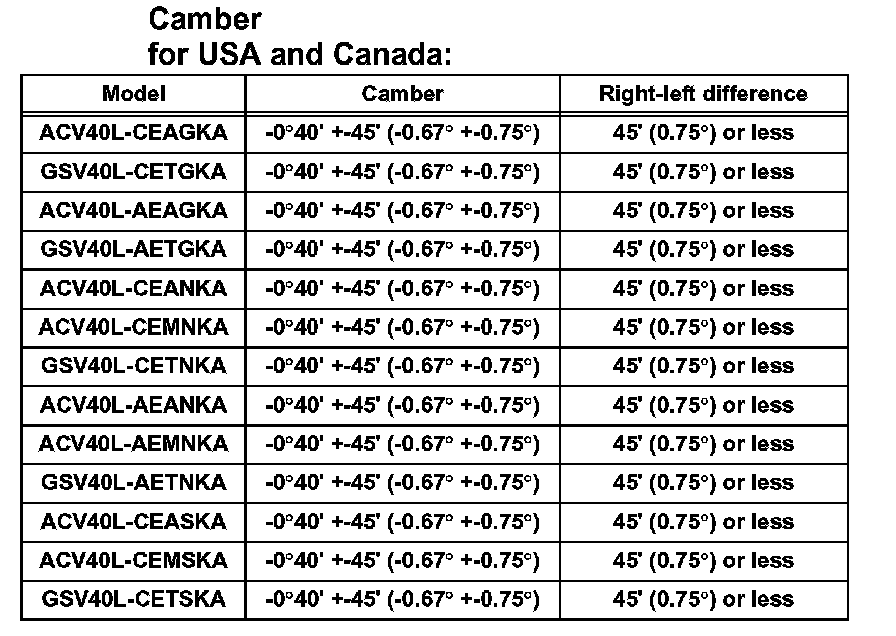

Camber for USA and Canada:

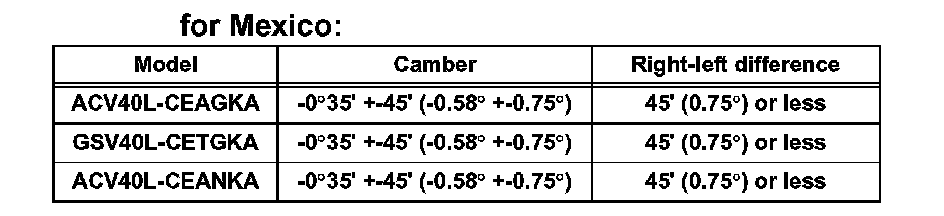

Camber for Mexico:

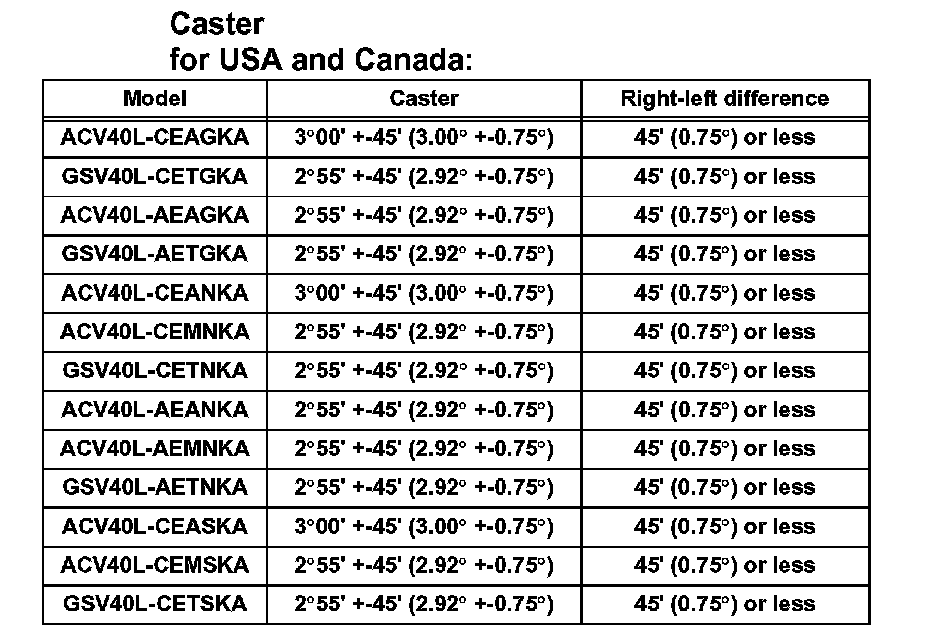

Caster for USA and Canada:

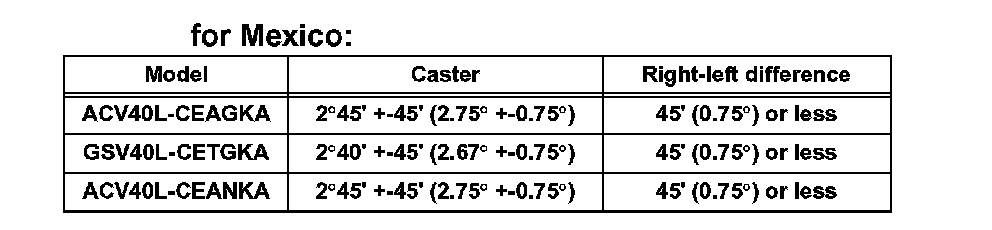

Caster for Mexico:

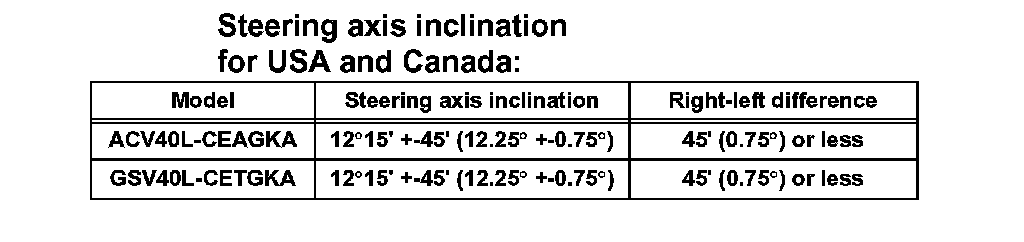

Steering axis inclination for USA and Canada (Part 1):

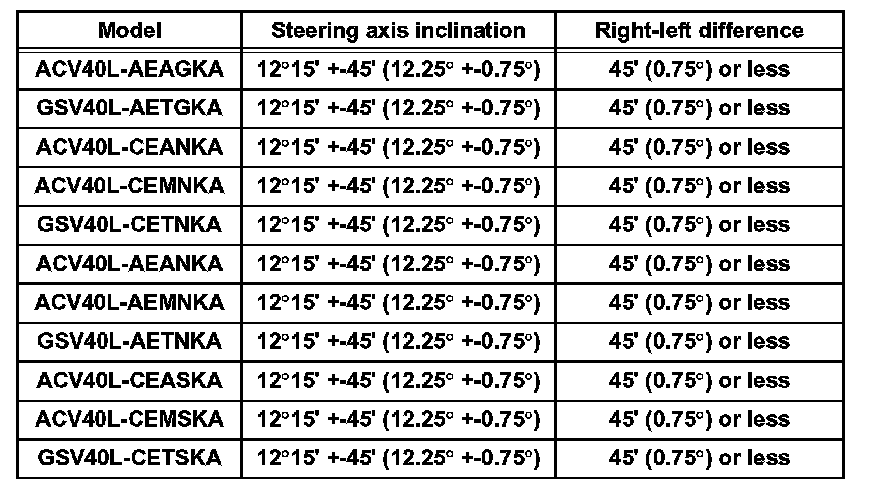

Steering axis inclination for USA and Canada (Part 1):

Steering axis inclination For Mexico:
