Pinout Values and Diagnostic Parameters

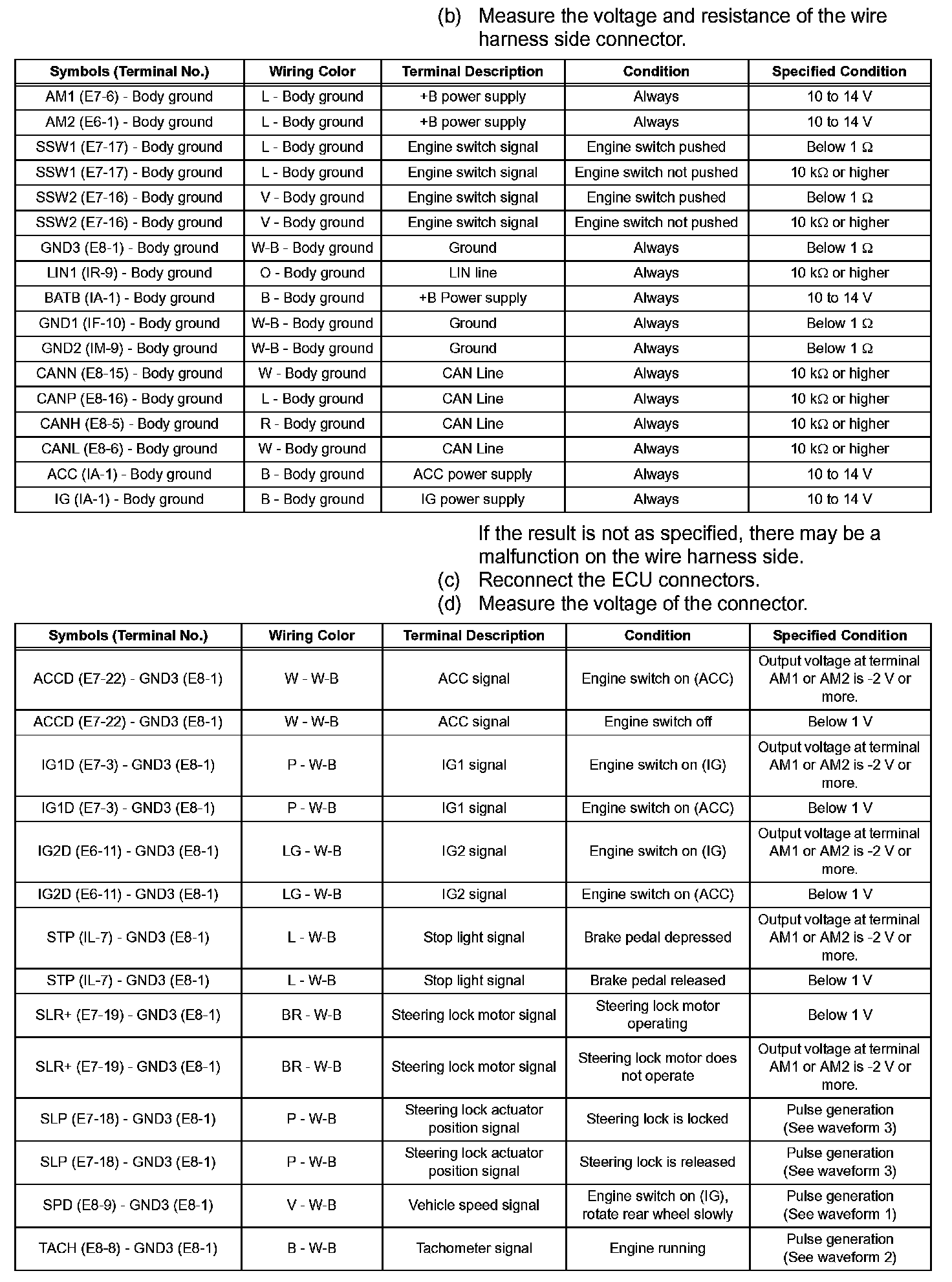

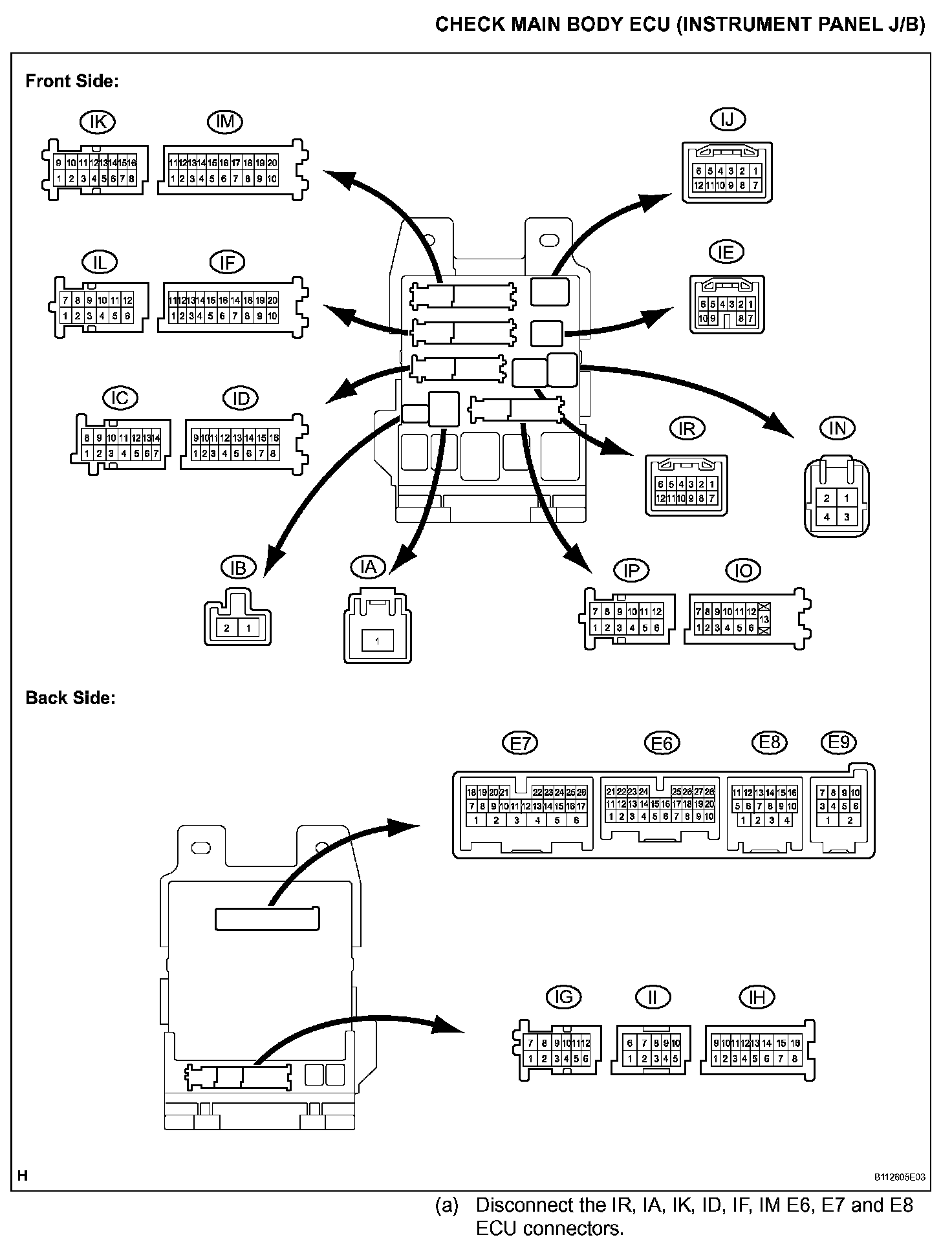

Terminals Of Control Module/Pinouts-Check Main Body ECU (Instrument Panel J/B) (Part 1):

Terminals Of Control Module/Pinouts-Check Main Body ECU (Instrument Panel J/B) (Part 2):

Oscilloscope Waveform (Part 1):

Oscilloscope Waveforms (Part 2):

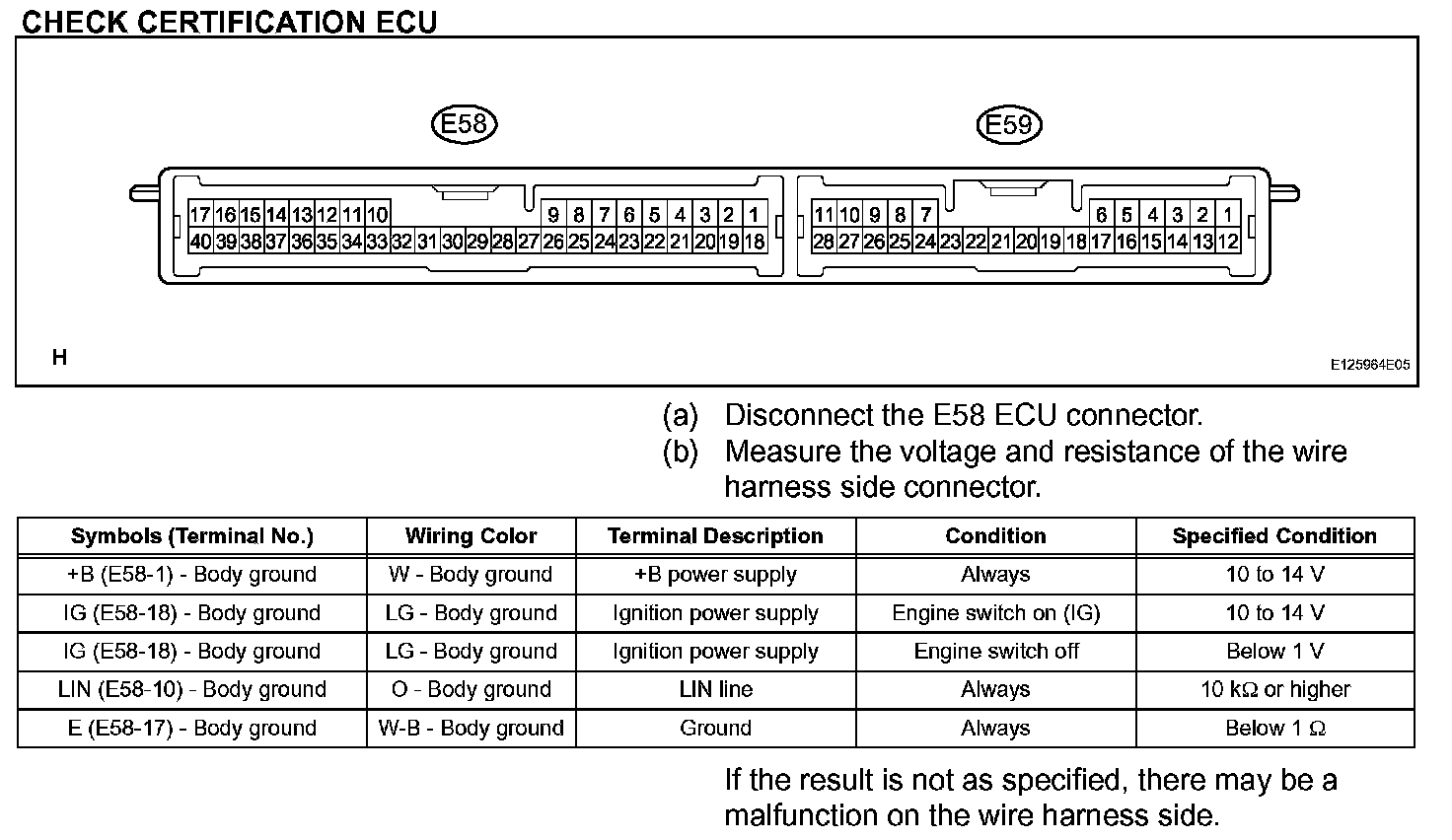

Terminals Of Control Module/Pinouts-Check Certification ECU:

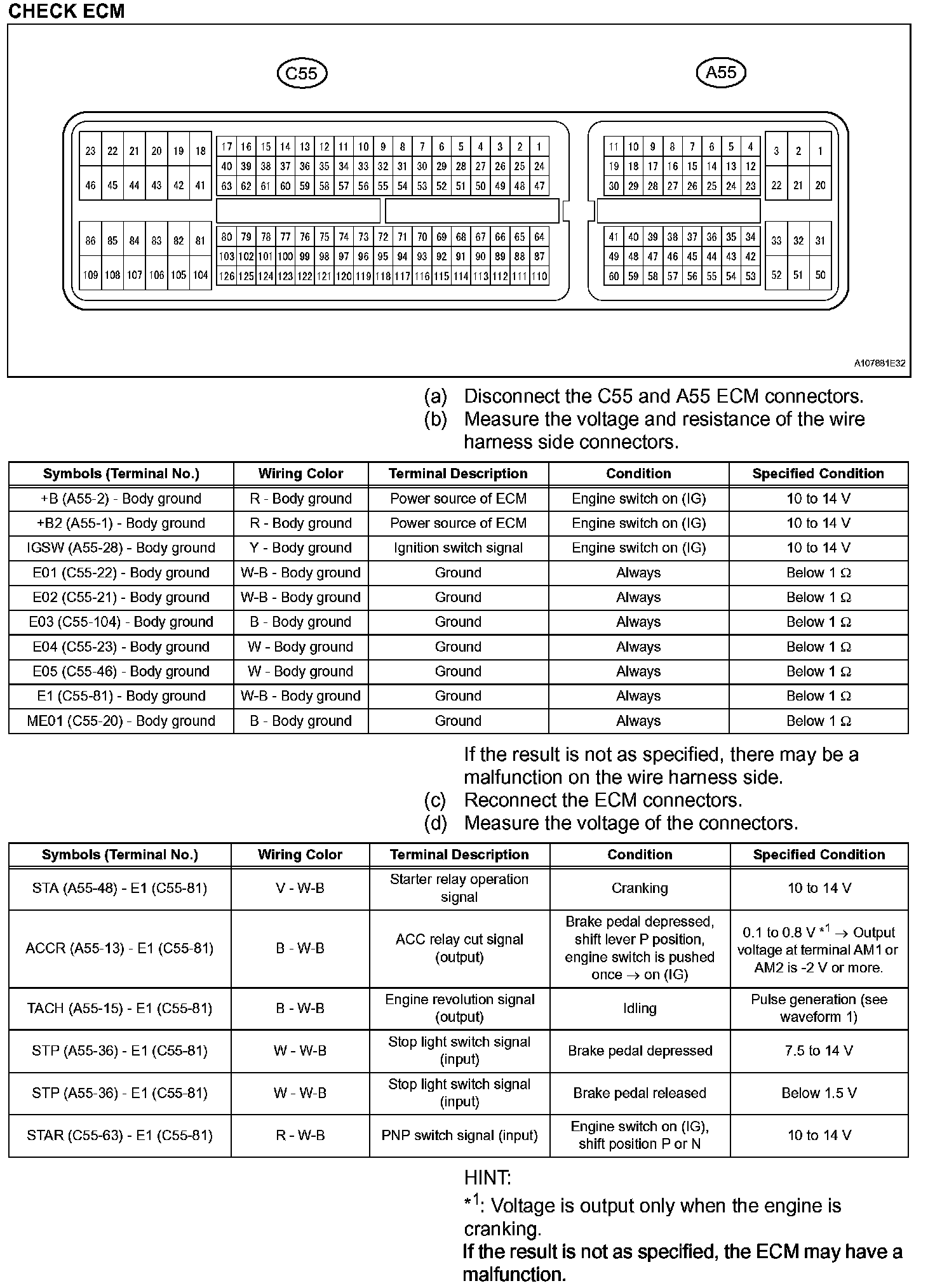

Terminals Of Control Module/Pinouts-Check ECM:

Oscilloscope Waveform:

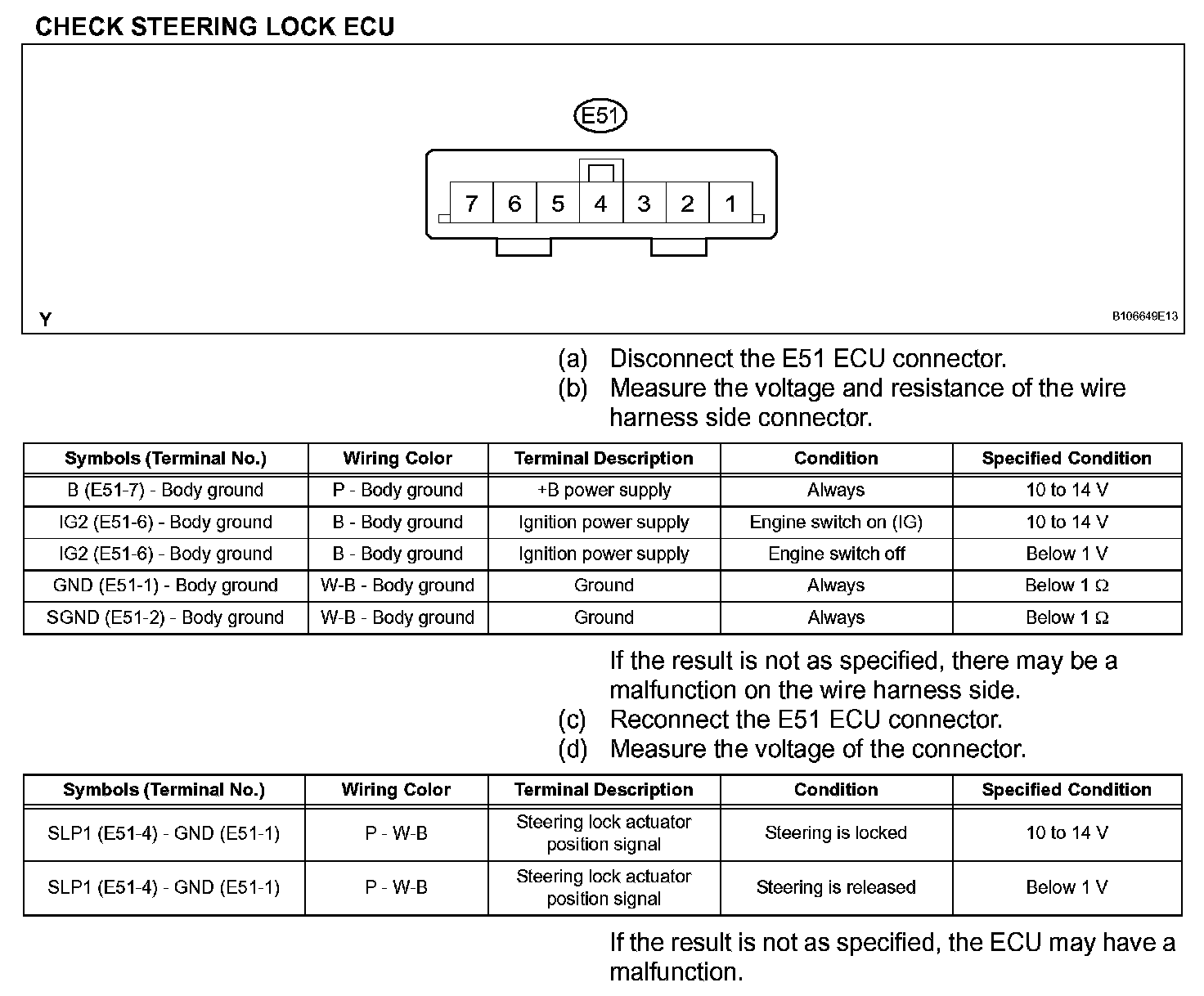

Terminals Of Control Module/Pinouts-Check Steering Lock ECU:
