ECU Power Source Circuit

ECU Power Source Circuit

DESCRIPTION
This is the power source for the tire pressure warning ECU.

WIRING DIAGRAM:





INSPECTION PROCEDURE

NOTICE: It is necessary to register an ID code after replacing the tire pressure warning valve and transmitter and/or the tire pressure warning ECU.

Step 1:

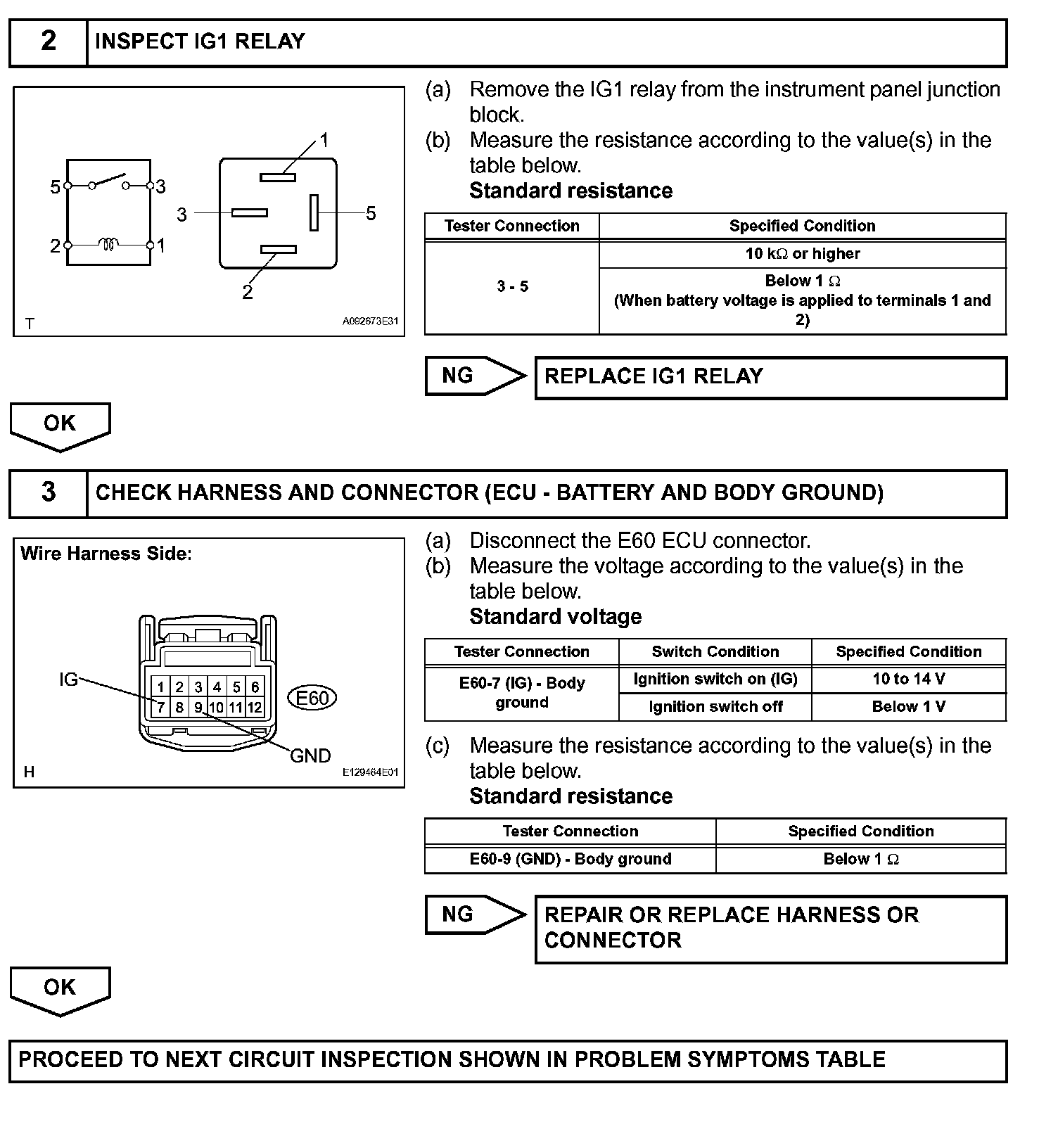

Step 2-3:
