Repair and Diagnosis: Testing and Inspection
CUSTOMIZE PARAMETERS

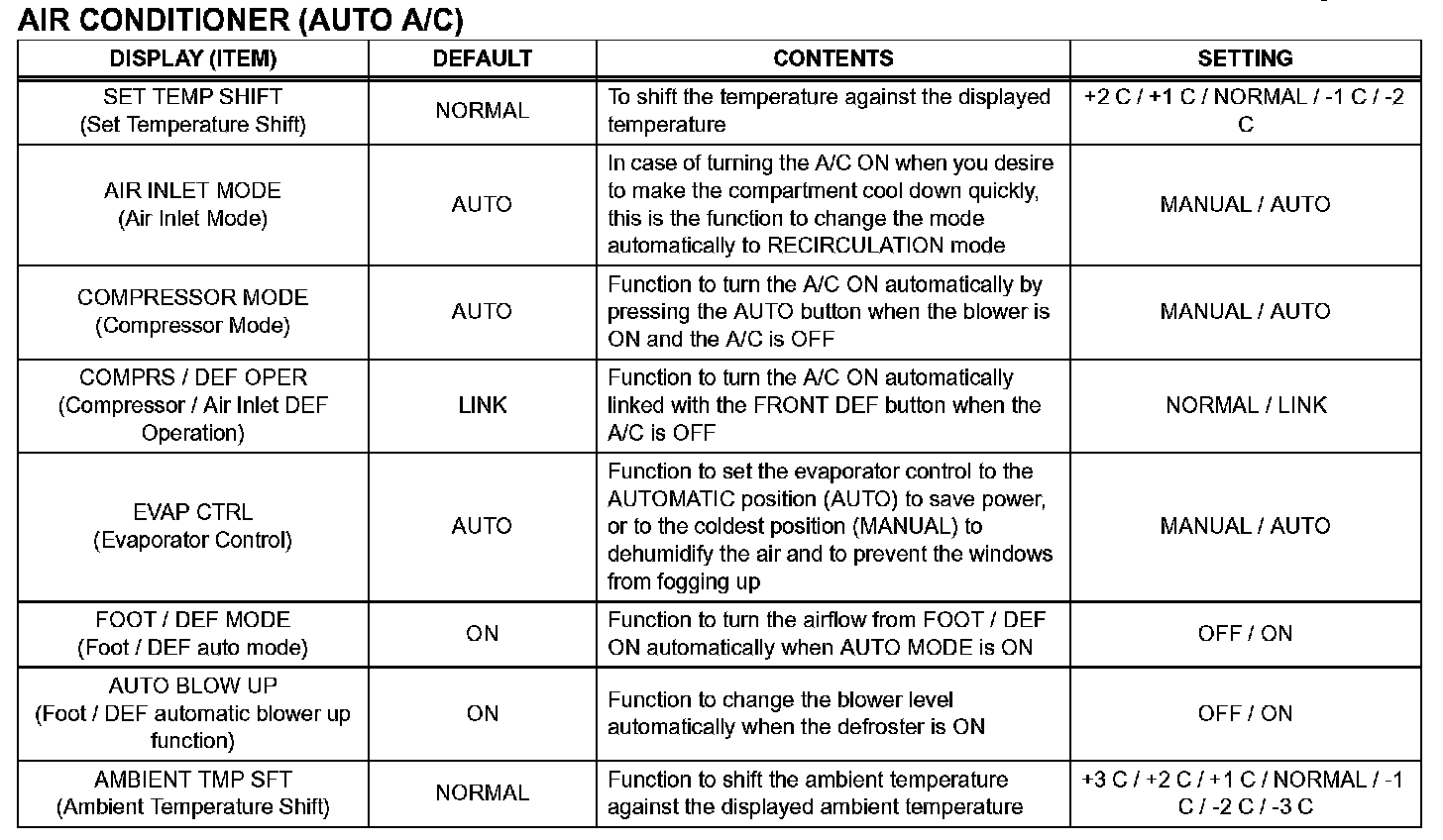

1. AIR CONDITIONING SYSTEM
HINT: The given items can be customized.
NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

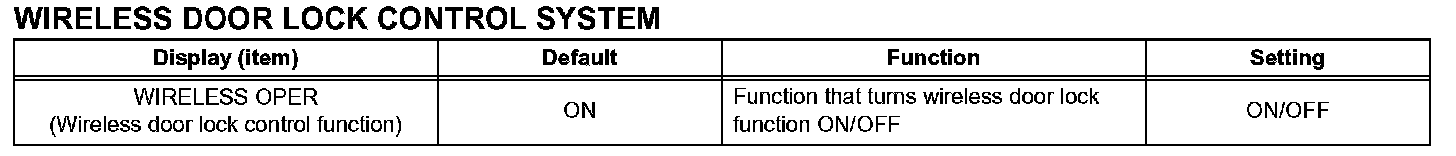

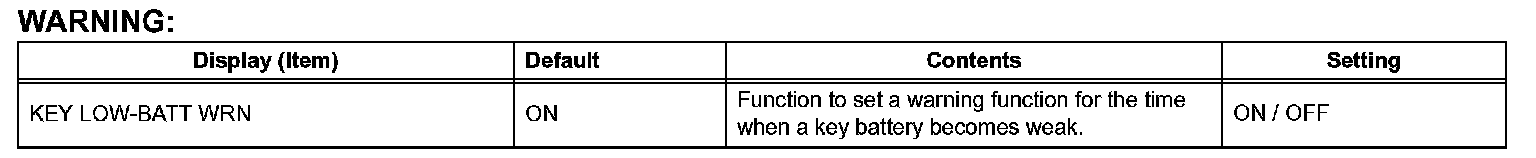

2. THEFT DETERRENT SYSTEM (w/o Smart Key System)
HINT: The given items can be customized.
NOTE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
- Be sure to record the current settings before customization.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).
3. THEFT DETERRENT SYSTEM (w/ Smart Key System)
HINT: The given items can be customized.
NOTE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
- Be sure to record the current settings before customization.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).

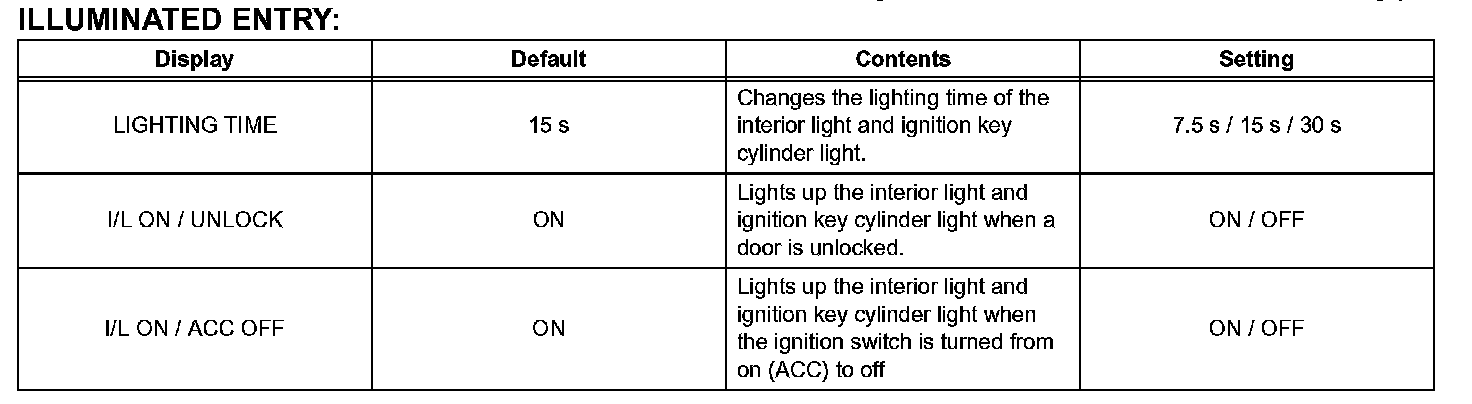

4. LIGHTING SYSTEM
HINT: The given are the possible items to be customized.
NOTE:
- Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention because there is a possibility that the function has been disabled by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation has not been disabled by customizing, then perform the troubleshooting.)
5. POWER DOOR LOCK CONTROL SYSTEM
CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER
HINT: The given items can be customized.
NOTE:
- Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
- Be sure to record the current settings before customizing.
- When troubleshooting, make sure that the item in question has not been disabled using the customizing function.
Part 1:
Part 2:
6. WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)
HINT: The given items can be customized.
NOTE:
- When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
- Be sure to record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is not set to OFF.
Part 1:
Part 2:
7. WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System)
HINT: The given items can be customized.
NOTE:
- When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
- Be sure to record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is not set to OFF.
8. SMART KEY SYSTEM (Door Lock)
a. CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER
HINT: The given items in the table can be customized.
NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current setting before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
HINT: The given functions' default settings are ON. Part of these functions can be customized.
b. Entry Unlock Mode Switching Function
1. To change the vehicle to entry unlock mode switching function, make sure the vehicle power is off and simultaneously press and hold the electrical key's LOCK switch and another electrical key switch for 4.5 seconds.
When the switches are pressed and held for 4.5 seconds, the entry door unlock mode changes in the following order: driver door mode, all door mode.
NOTE: After pressing and holding the switches for 4.5 seconds, wait 5 seconds before performing the same procedure again.
- Driver door unlock mode:
When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
- All door unlock mode:
When the touch sensor is touched, all doors unlock.
2. The certification ECU receives this signal from the entry door control receiver and changes the smart key system to the entry unlock mode.
3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.
HINT: The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.
c. Electrical Key Cancel
The electrical key cancel operation disables the following functions:
- Entry Ignition
- Entry Unlock/Lock
- Entry Luggage Compartment Open
- Electrical Key Lock-in Prevention
- Warning
- Memory Call
1. The operation procedures are as follows:
Precondition:
Engine switch off, driver side door closed and unlocked.
1. Unlock the driver side door once with the UNLOCK switch of the electrical key.
2. Open the driver door within 5 seconds.
3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
4. Repeat open -> close twice for the driver door within 30 seconds, and open again.
(Driver door: Open -> Close -> Open -> Close -> Open)
5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
6. Repeat open -> close once for the driver door within 30 seconds, and open again.
(Driver door: Open -> Close -> Open)
7. Close the driver door within 5 seconds. When electrical key cancel is activated, the wireless door lock buzzer sounds twice. To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
9. KEY REMINDER WARNING SYSTEM
PARAMETERS (USING INTELLIGENT TESTER)
HINT: The given items can be customized.
NOTE:
- Be sure to record current values before customizing.
- When performing troubleshooting, be aware that the functions may be set to OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not set to OFF by customizing, then perform the troubleshooting.)
10. METER/GAUGE SYSTEM
COMBINATION METER ASSEMBLY
NOTE: Be sure to record the current value before customizing.
HINT: The given items can be customized using intelligent tester.
HINT: This setting is only valid for the buzzer which sounds at the 5 km/h (3 mph) or more.
a. SEAT BELT BUZZER ON/OFF SETTING (Procedure "A")
The seat belt buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver and front passenger side seat belt buzzers.
NOTE:
- These buzzers should be on for safe driving. Perform these procedures only if it is necessary to set the buzzer off (disabled).
- When either the battery cable or the combination meter connector is disconnected, these buzzers are set on (enabled).
- Odometer returns to 0 after starting this procedure, although it is not displayed.
HINT: "b-oFF" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The seat belt buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that the buzzer ON/OFF setting is complete. If it is not complete, start from step 1 again.
1. Driver and front passenger side seat belt buzzers
1. Turn the ignition switch on (IG).
2. Press the ODO/TRIP switch until the odometer displays "ODO".
3. Ignition switch off.
4. Turn the ignition switch on (IG).
5. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
6. Continue holding down the ODO/TRIP switch and fasten the driver side seat belt.
7. Check that the odometer displays either "b-on" or "b-oFF".
8. Press the ODO/TRIP switch to change the display to "b-oFF".
9. Ignition switch off.
10. Turn the ignition switch on (IG).
11. Check that no buzzer sounds.
2. Front passenger side seat belt buzzer
1. Turn the ignition switch on (IG).
2. Press the ODO/TRIP switch until the odometer displays "ODO".
3. Ignition switch off.
4. Turn the ignition switch on (IG).
5. Sit in the front passenger seat. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
6. Sit in the front passenger seat. Continue holding down the ODO/TRIP switch and fasten the front passenger side seat belt.
7. Check that the odometer displays either "b-on" or "b-oFF".
8. Press the ODO/TRIP switch to change the display to "b-oFF".
9. Ignition switch off.
10. Turn the ignition switch on (IG).
11. Check that no buzzer sounds.
