Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2007
>>
Camry V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Description and Operation
>>

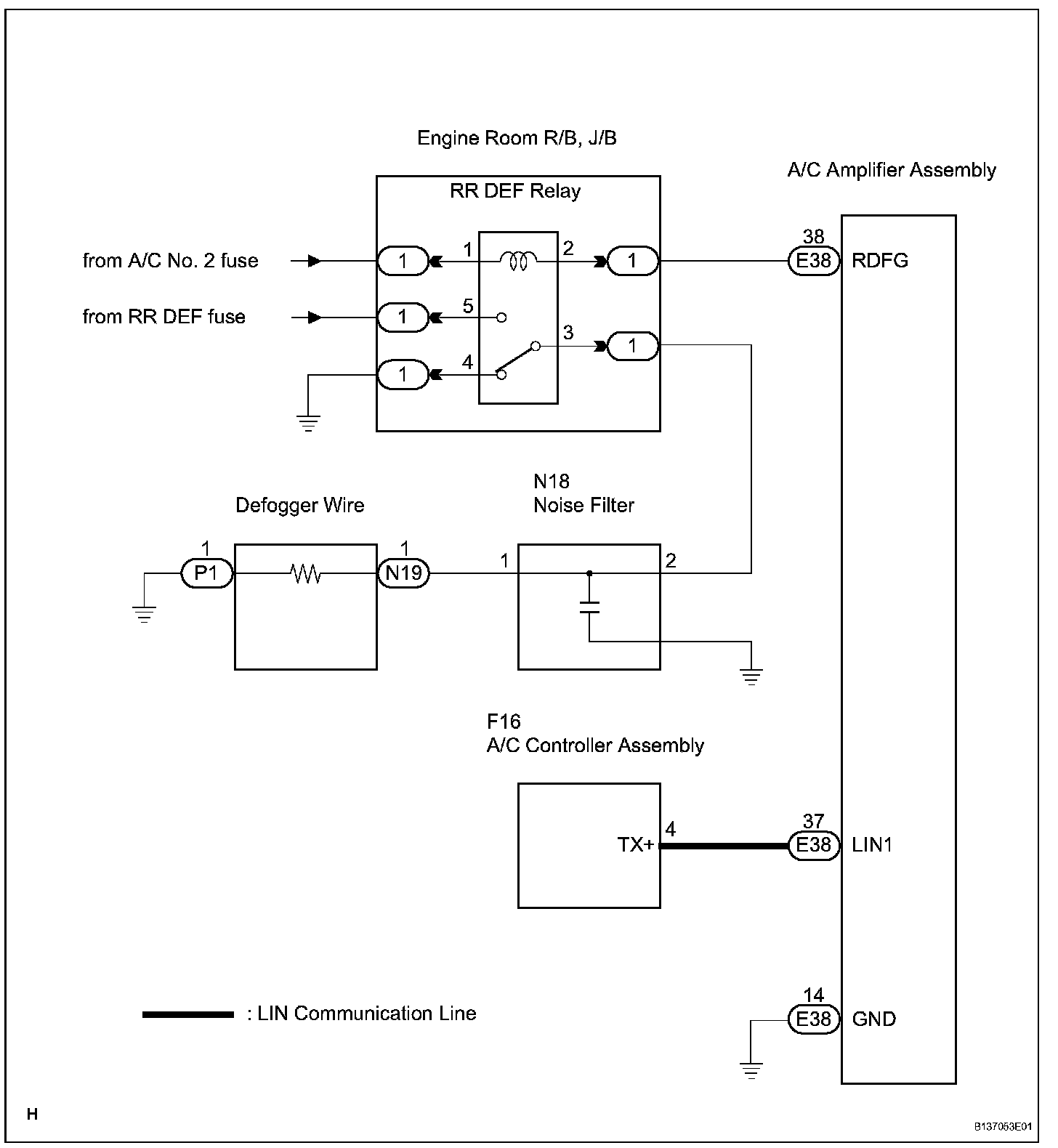

System Diagram
System Diagram
System Diagram:
