Power Window Motor: Testing and Inspection

INSPECTION

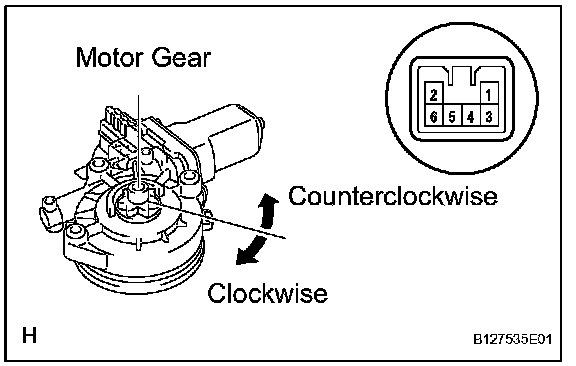

1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)

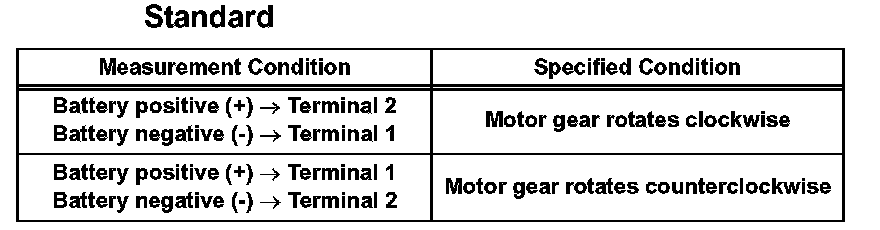

a. Apply battery voltage to the motor connector according to the table below.






NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

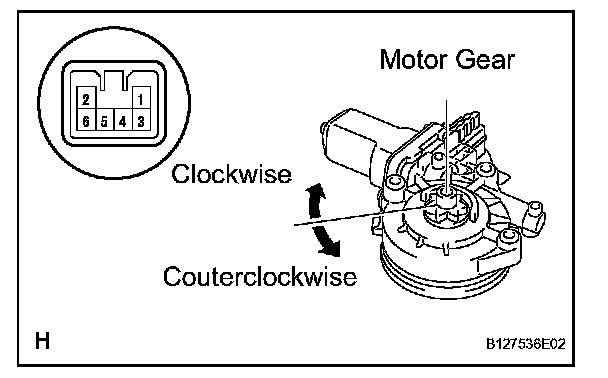

2. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT LH)






a. without Jam protection:
Apply battery voltage to the motor connector according to the table below.






NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

b. with Jam protection:
Apply battery voltage to the motor connector according to the table below.









NOTICE: Do not apply battery voltage to any terminals except terminals 1, 2, 4, 7 and 10.

3. INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)






a. Apply battery voltage to the motor connector according to the table below.






NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

4. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)






a. Apply battery voltage to the motor connector according to the table below.






NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.
