Garage Door Opener Transmitter: Description and Operation

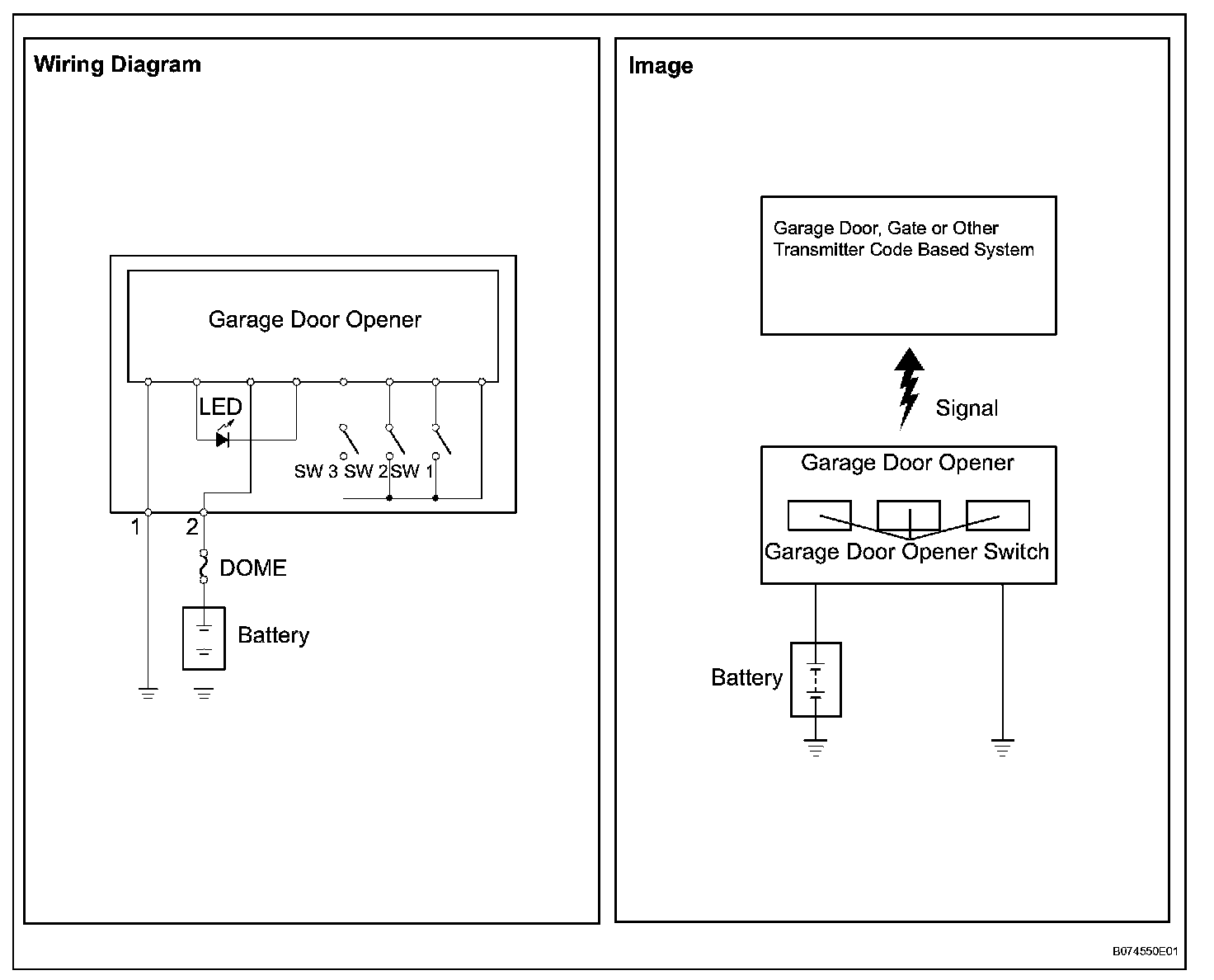

System Diagram:

GARAGE DOOR OPENER SYSTEM

DESCRIPTION

A maximum of 3 kinds of transmitter code based systems like garage doors, gates and entry gates can be registered with the vehicle's garage door opener that can activate the transmitter systems, and the original transmitters of each transmitter code based system are not needed.
