Navigation System: Service and Repair

Navigation Receiver:

Navigation Receiver:

Navigation Receiver

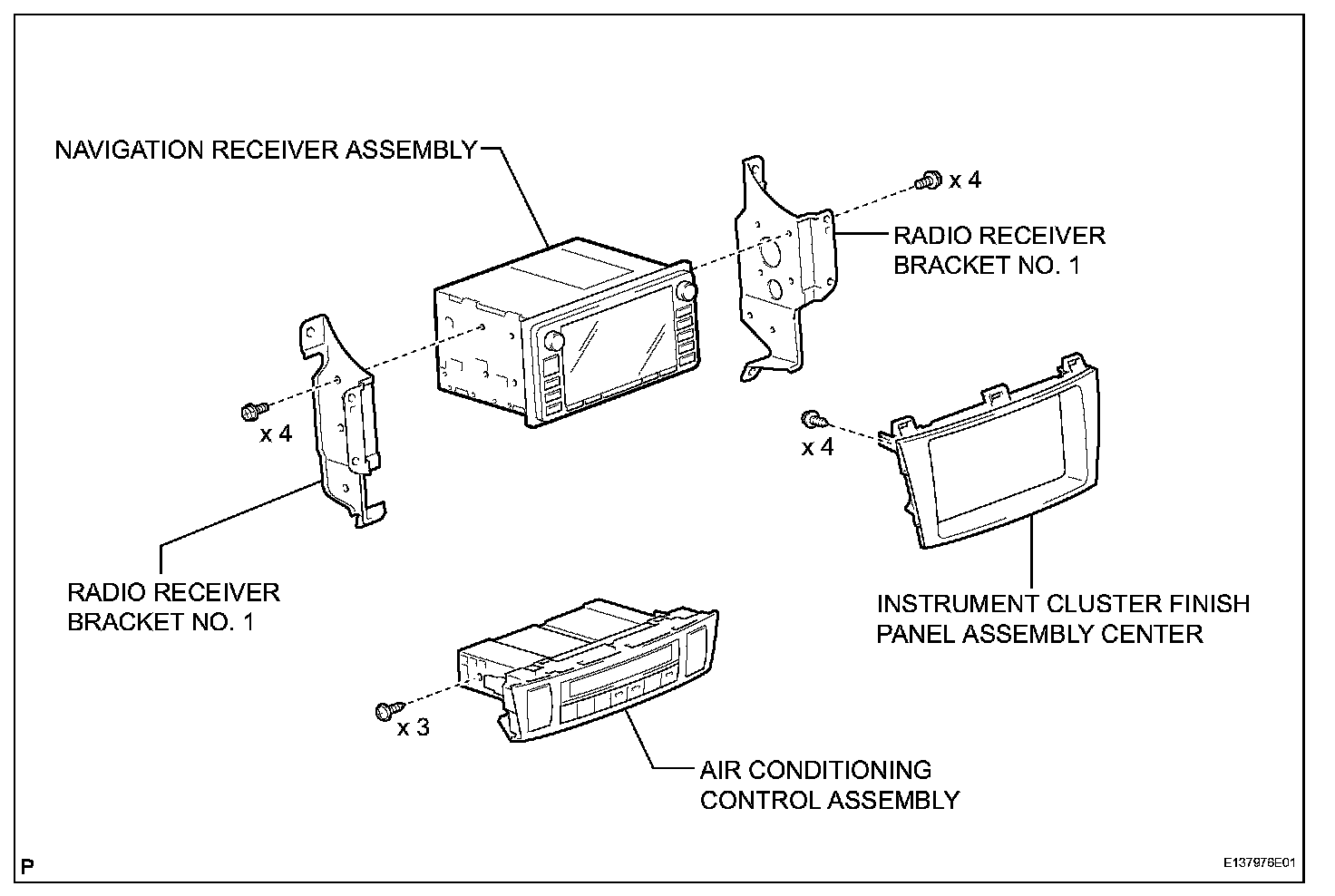

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
2. REMOVE REAR CONSOLE UPPER PANEL SUBASSEMBLY
3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
5. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSEMBLY

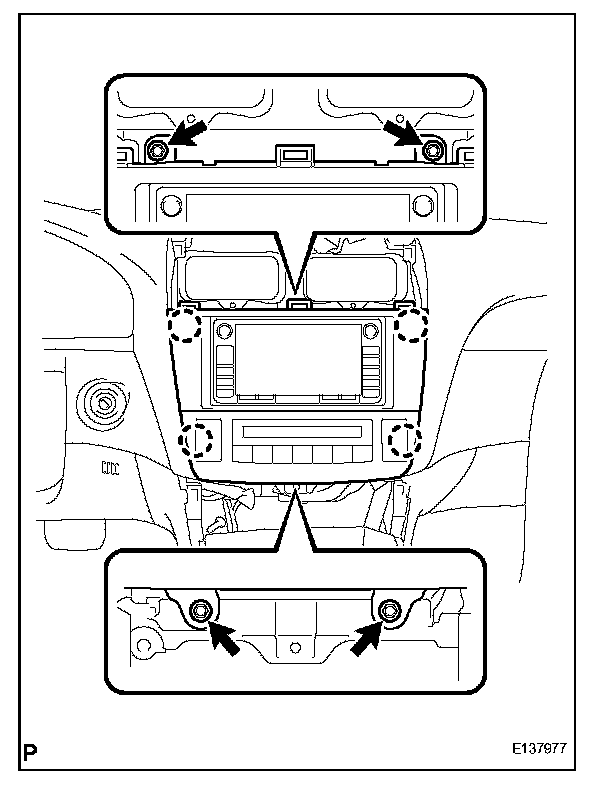

a. Remove the 4 bolts.
b. Disconnect the connector.
c. Disengage the 4 claws and remove the center cluster integration panel assembly.

6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER

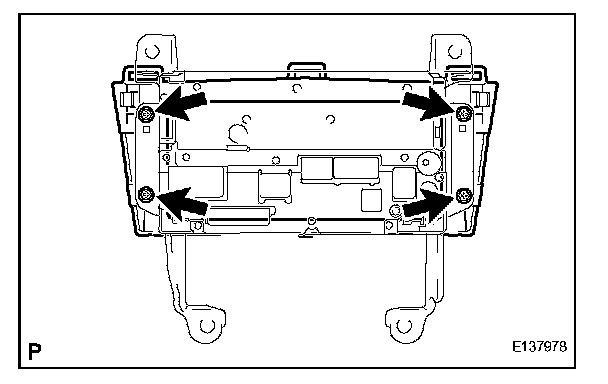

a. Remove the 4 bolts and instrument cluster finish panel assembly center.

8. REMOVE RADIO RECEIVER BRACKET NO. 1

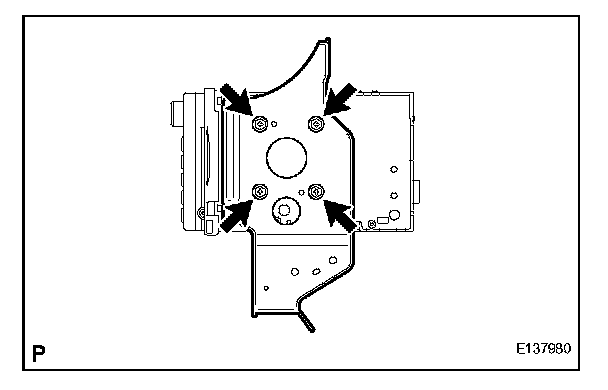

a. Remove the 4 screws and radio receiver bracket No. 1.

9. REMOVE RADIO RECEIVER BRACKET NO. 1




a. Remove the 4 screws and radio receiver bracket No. 1.

10. REMOVE NAVIGATION RECEIVER ASSEMBLY

INSTALLATION

1. INSTALL NAVIGATION RECEIVER ASSEMBLY
2. INSTALL RADIO RECEIVER BRACKET NO. 1
3. INSTALL RADIO RECEIVER BRACKET NO. 1
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
5. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
6. INSTALL CENTER CLUSTER INTEGRATION PANEL ASSEMBLY
7. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
8. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
9. INSTALL REAR CONSOLE UPPER PANEL SUBASSEMBLY
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
