Audio Terminal

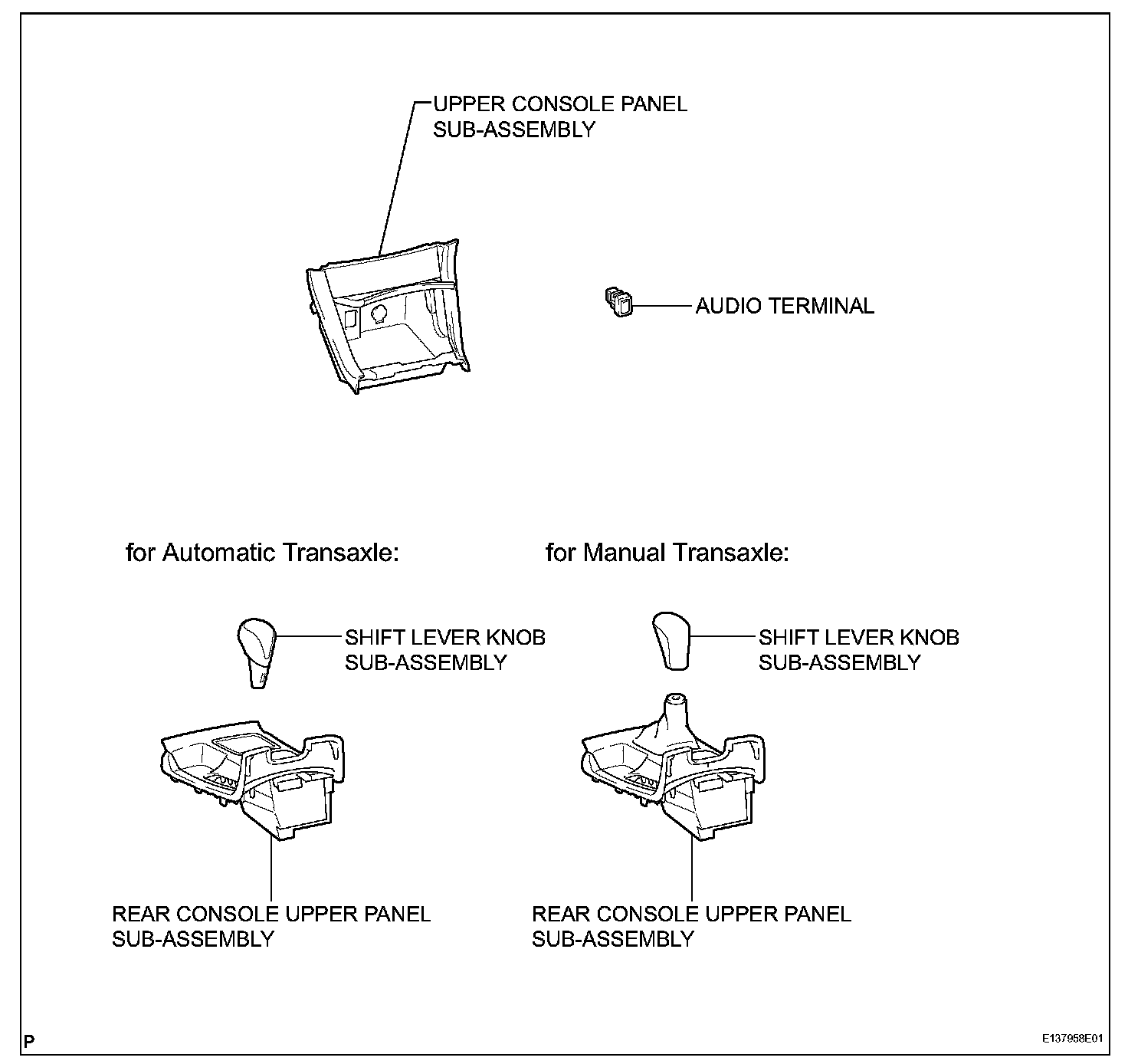

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
2. REMOVE REAR CONSOLE UPPER PANEL SUBASSEMBLY (for Manual Transaxle)
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
4. REMOVE REAR CONSOLE UPPER PANEL SUBASSEMBLY (for Automatic Transaxle)
5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
6. REMOVE AUDIO TERMINAL

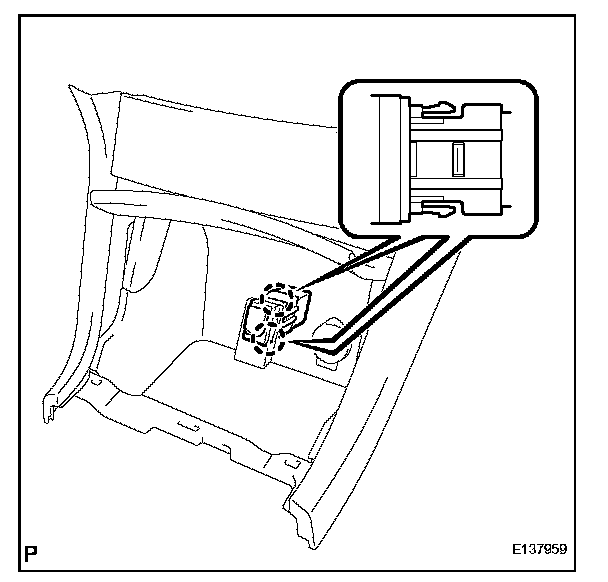

a. Disengage the 2 claws and remove the audio terminal.

INSTALLATION

1. INSTALL AUDIO TERMINAL

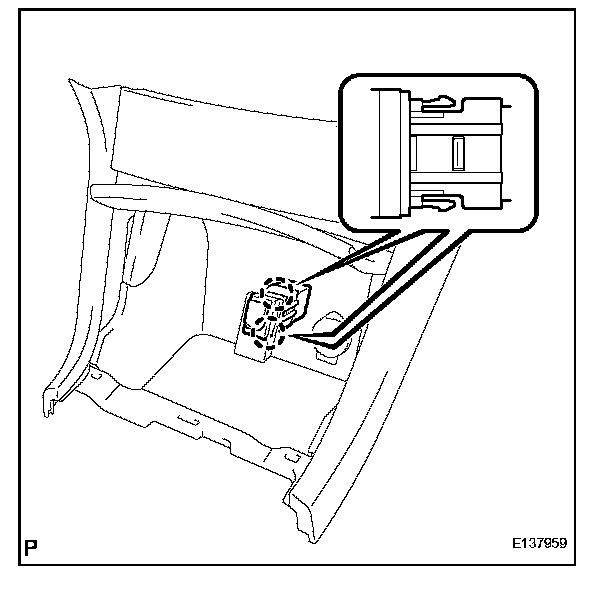

a. Engage the 2 claws and install the audio terminal.

2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
3. INSTALL REAR CONSOLE UPPER PANEL SUBASSEMBLY (for Manual Transaxle)
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
5. INSTALL REAR CONSOLE UPPER PANEL SUBASSEMBLY (for Automatic Transaxle)
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
