Steering Mounted Controls Transmitter: Testing and Inspection
INSPECTION1. INSPECT STEERING PAD SWITCH

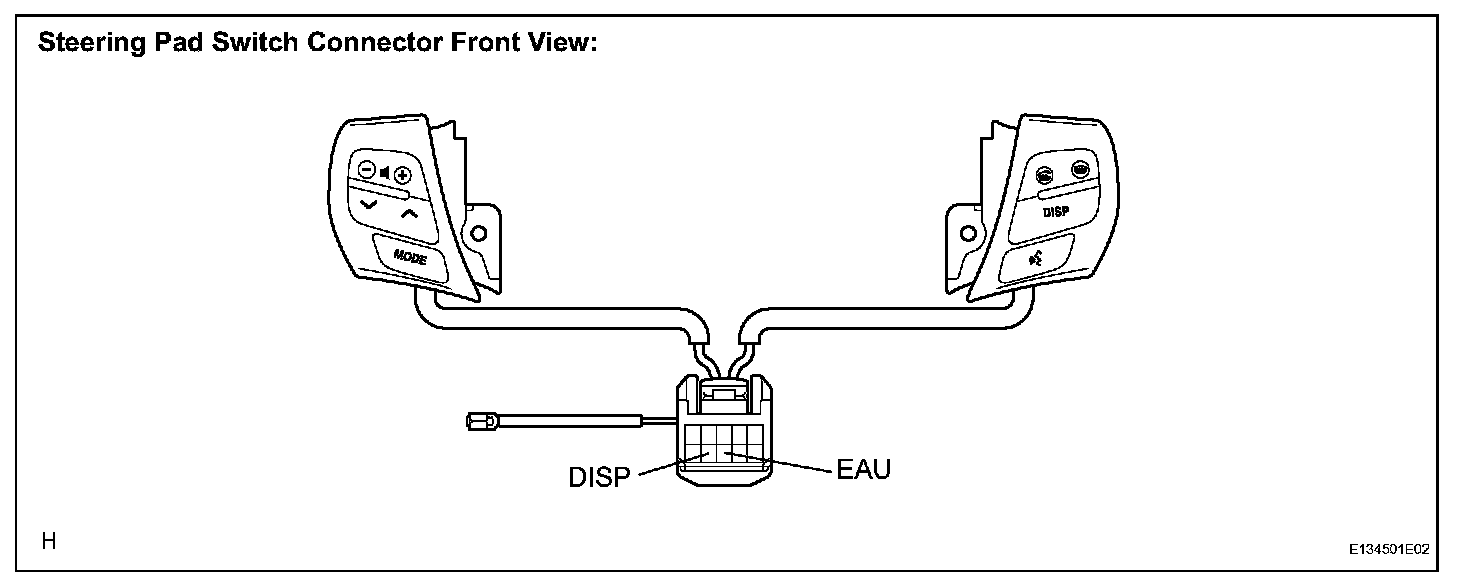

a. Disconnect the steering pad switch connector.

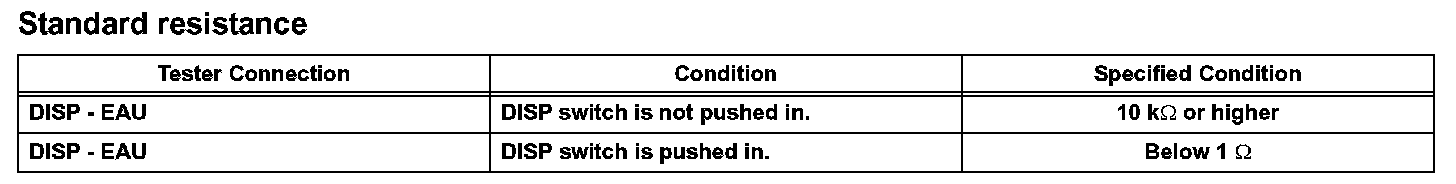

b. Measure the resistance according to the value(s) in the table.
HINT: If the value is not as specified, replace the steering pad switch.
