Clutch Switch

REMOVAL

HINT: Installation is in the reverse order of removal.

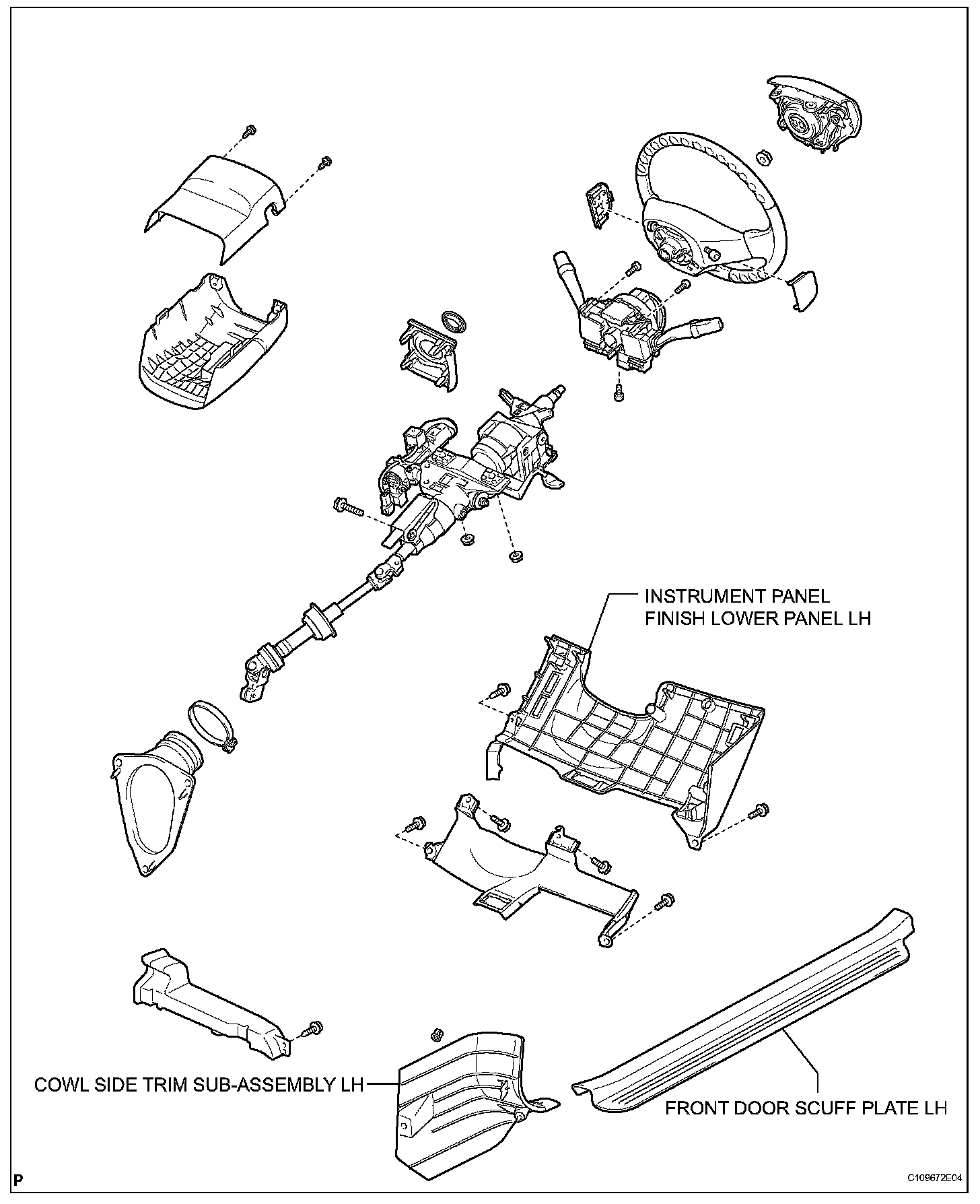

1. REMOVE FRONT DOOR SCUFF PLATE L
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
3. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH
4. REMOVE CLUTCH SWITCH ASSEMBLY




a. Disconnect the connector.

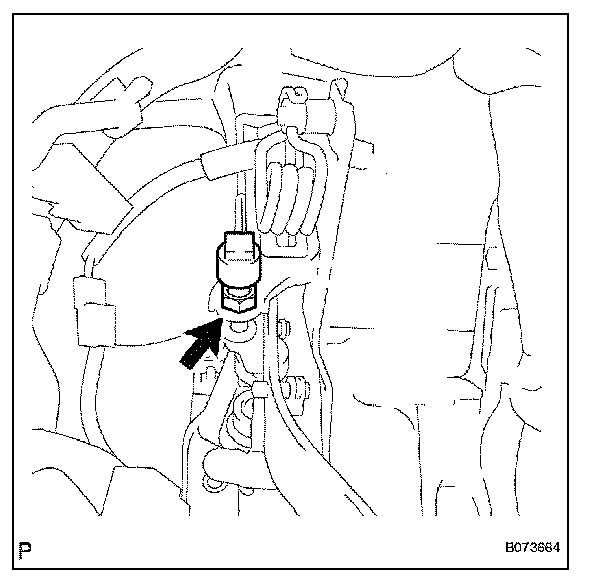

b. Loosen the nut and remove the clutch switch assembly.

INSTALLATION

1. INSTALL CLUTCH SWITCH ASSEMBLY




a. Insert the clutch switch assembly by turning it until the bolt touches the cushion of the clutch pedal.
b. Adjust the clutch switch assembly to the specified value between the cushion and the bracket as shown in the illustration.
c. Tighten the lock nut to fix the clutch switch assembly.

2. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
4. INSTALL FRONT DOOR SCUFF PLATE LH
