Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

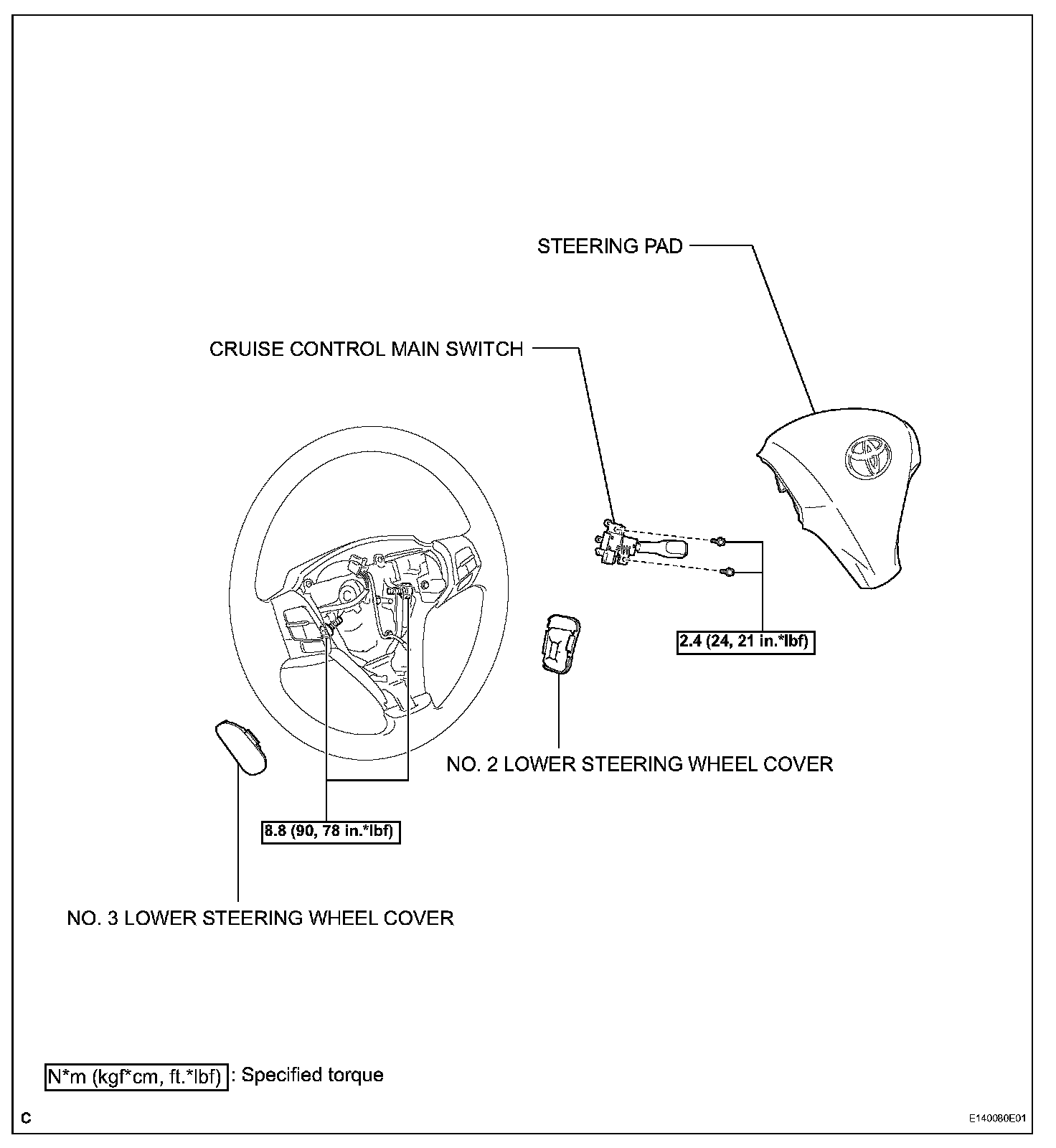

Cruise Control Main Switch

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE NO. 2 LOWER STEERING WHEEL COVER
3. REMOVE NO. 3 LOWER STEERING WHEEL COVER
4. REMOVE STEERING PAD
5. REMOVE CRUISE CONTROL MAIN SWITCH

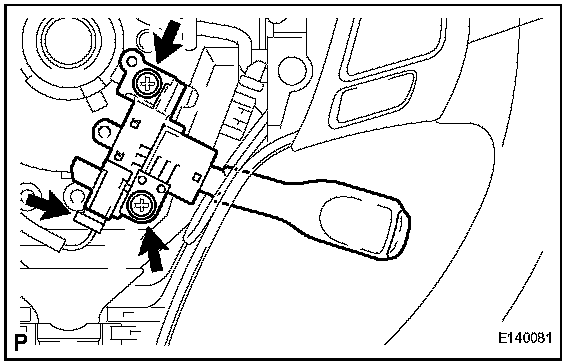

a. Disconnect the connector.
b. Remove the 2 screws.

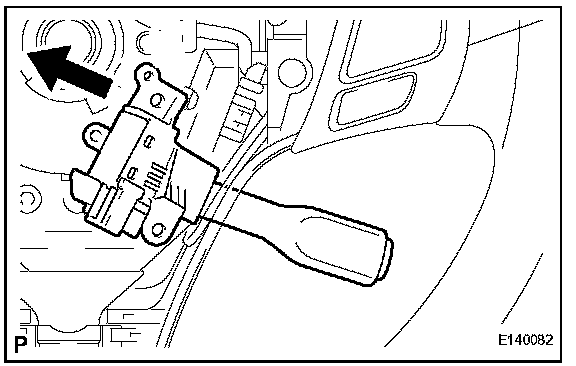

c. Pull the cruise control main switch in the arrow direction to remove it.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH




a. Install the cruise control main switch with the 2 screws.

Torque: 2.4 N.m (24 kgf.cm, 21 in.lbf)

b. Connect the connector.

2. INSTALL STEERING PAD
3. INSTALL NO. 3 LOWER STEERING WHEEL COVER
4. INSTALL NO. 2 LOWER STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION

NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.

7. INSPECT STEERING PAD
8. INSPECT SRS WARNING LIGHT
