Home >> Toyota >> 2007 >> Solara Convertible V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

Fuse Block

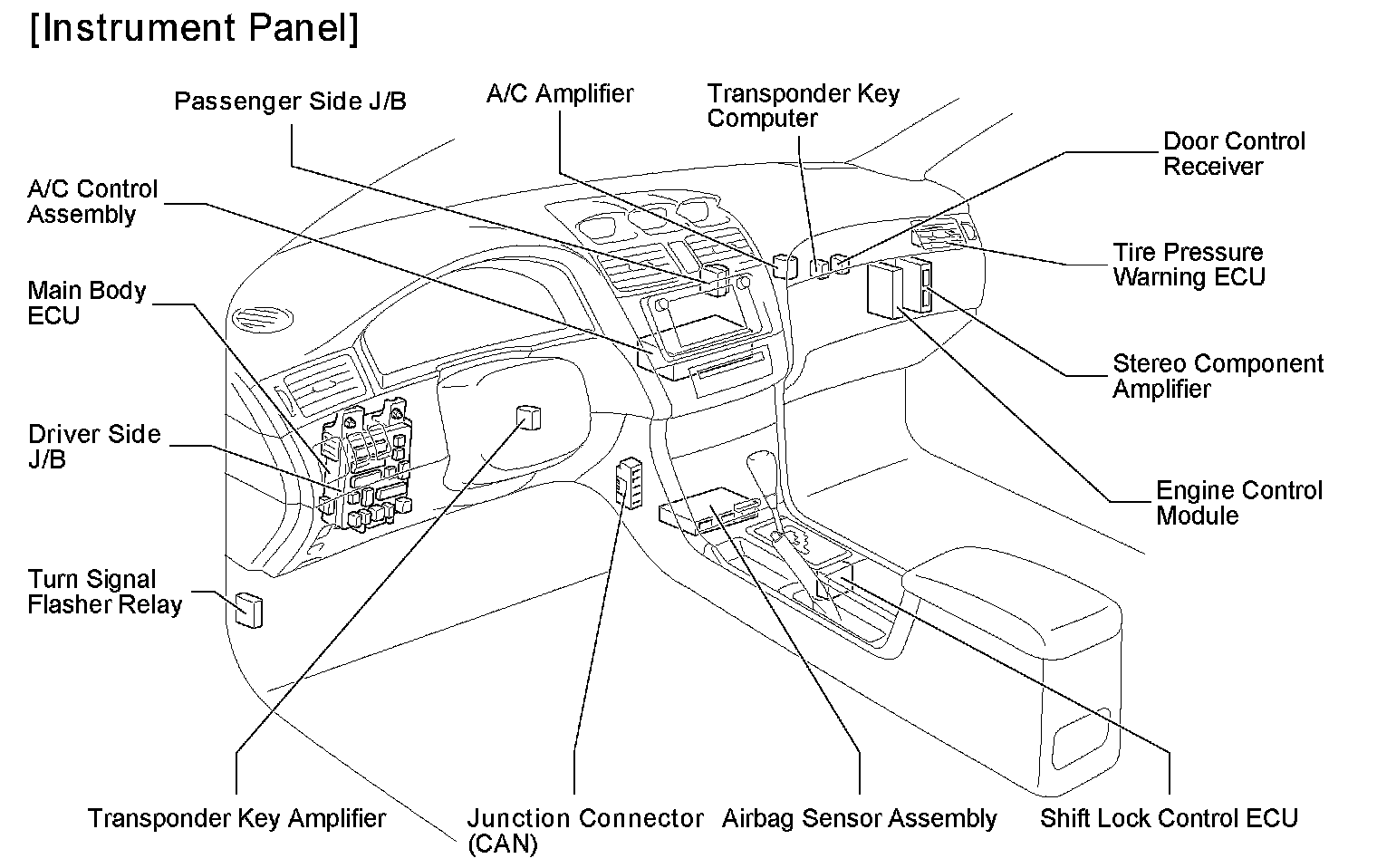

Instrument Panel:
