Seat Belt

Front Seat Inner Belt Assembly (for Convertible):



Front Seat Outer Belt Assembly:



Front Seat Outer Belt Assembly:

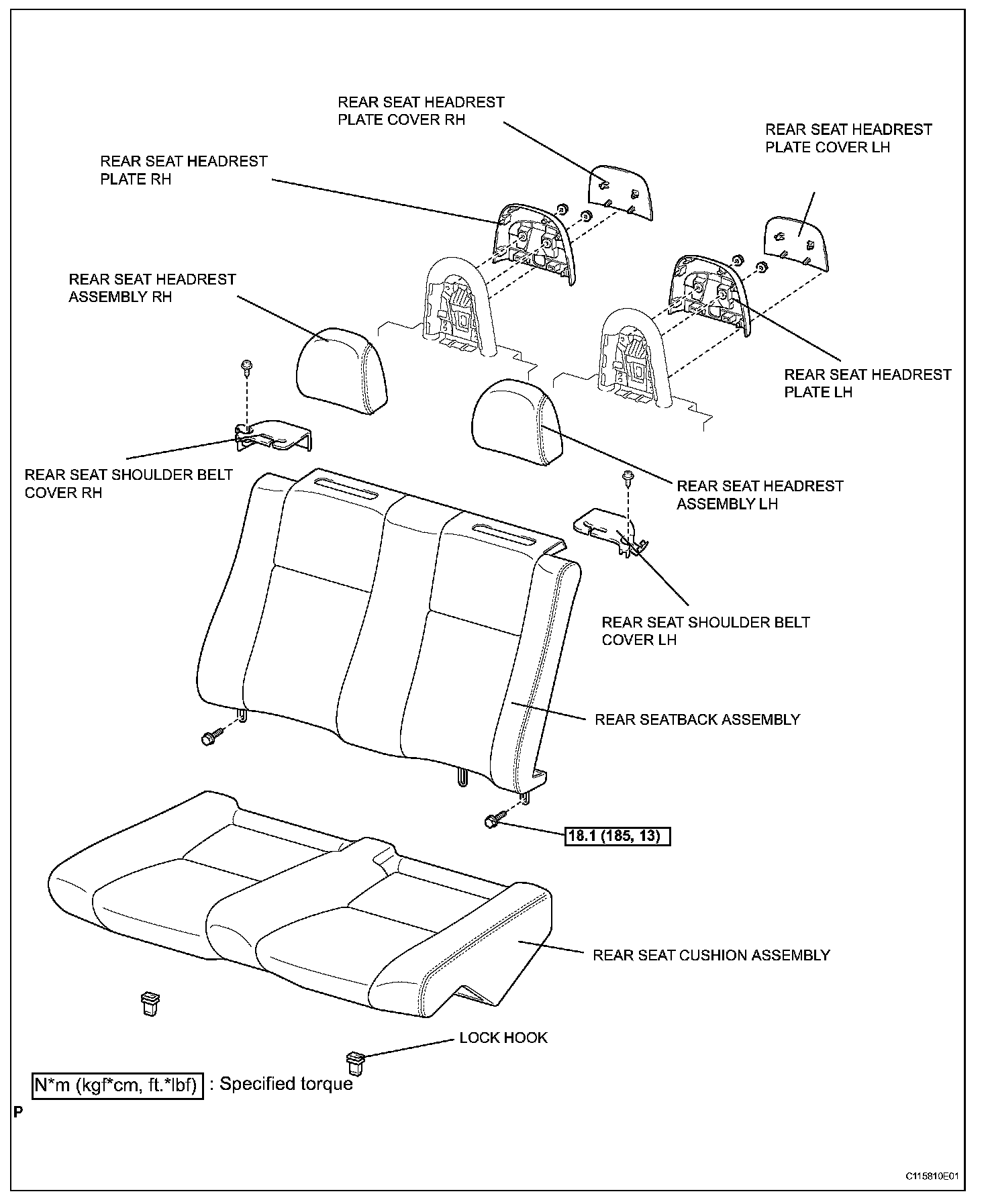

Rear Seat Inner Belt Assembly:

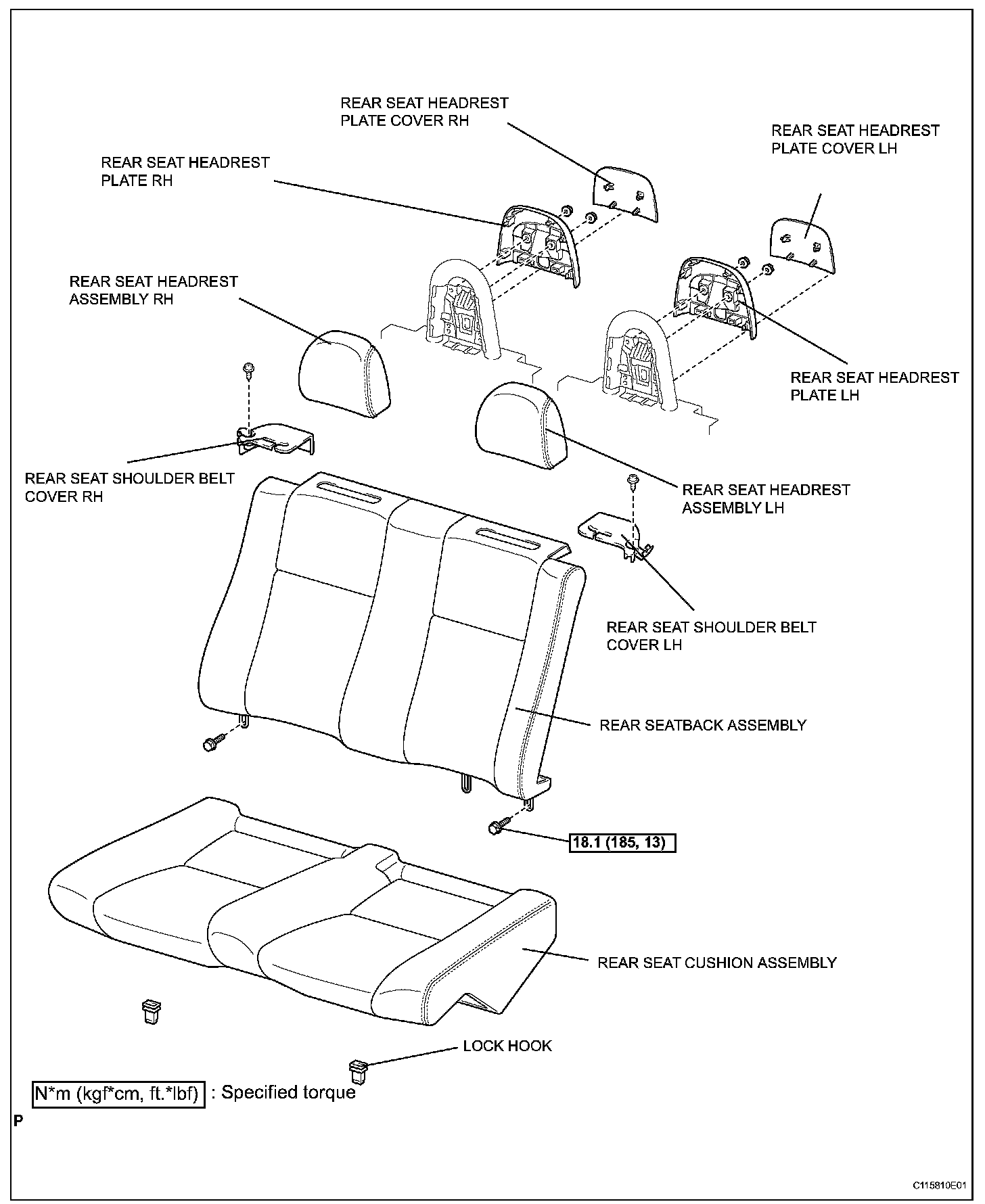

Rear Seat Inner Belt Assembly:

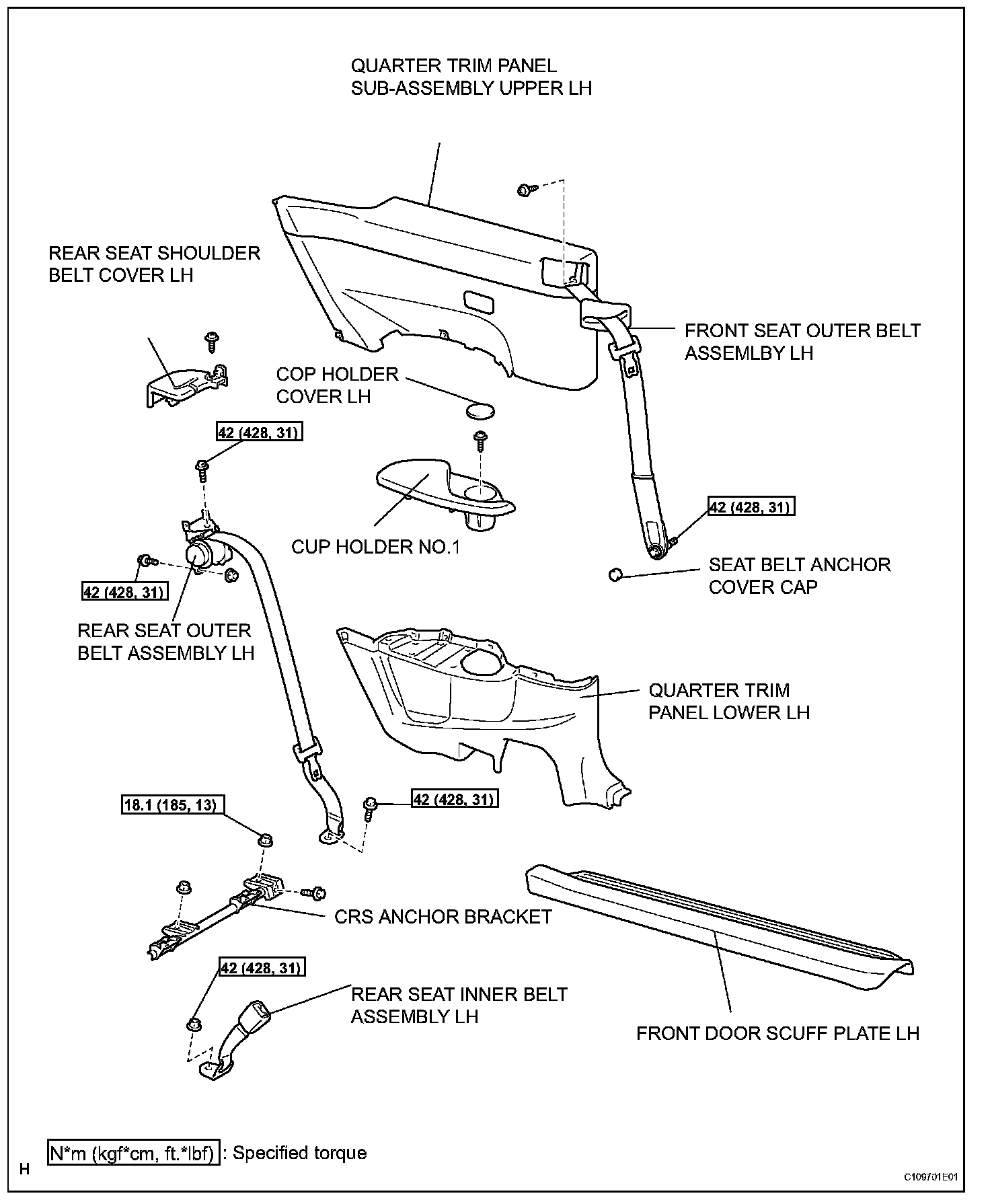

Rear Seat Outer Belt Assembly:



Rear Seat Outer Belt Assembly:
