Compressor Clutch Relay: Testing and Inspection

INSPECTION

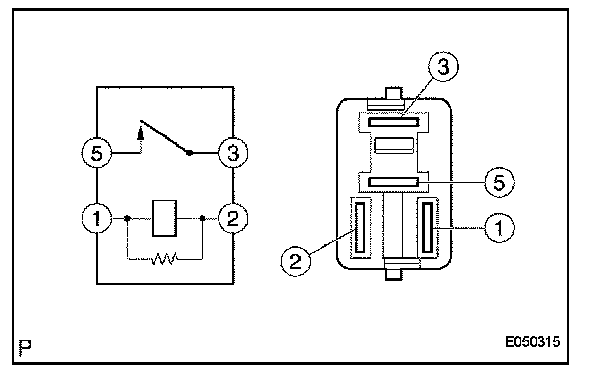

1. INSPECT MAGNET-CLUTCH RELAY




a. Remove the relay (magnet clutch relay) from the engine room R/B.

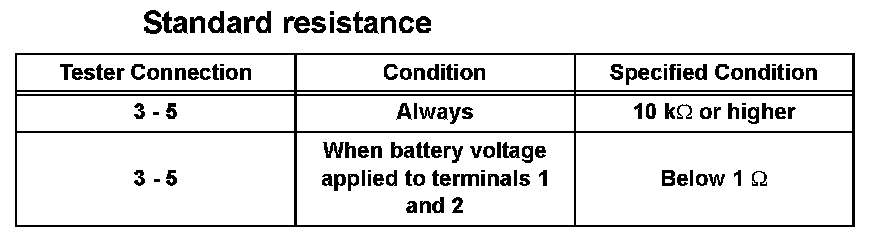

b. Measure the resistance according to the value(s) in the table.

If the resistance is not as specified, replace the magnet clutch relay.
