Control Module HVAC: Service and Repair

Air Conditioning Amplifier (for Manual Air Conditioning System):

Air Conditioning Amplifier (for Manual Air Conditioning System)

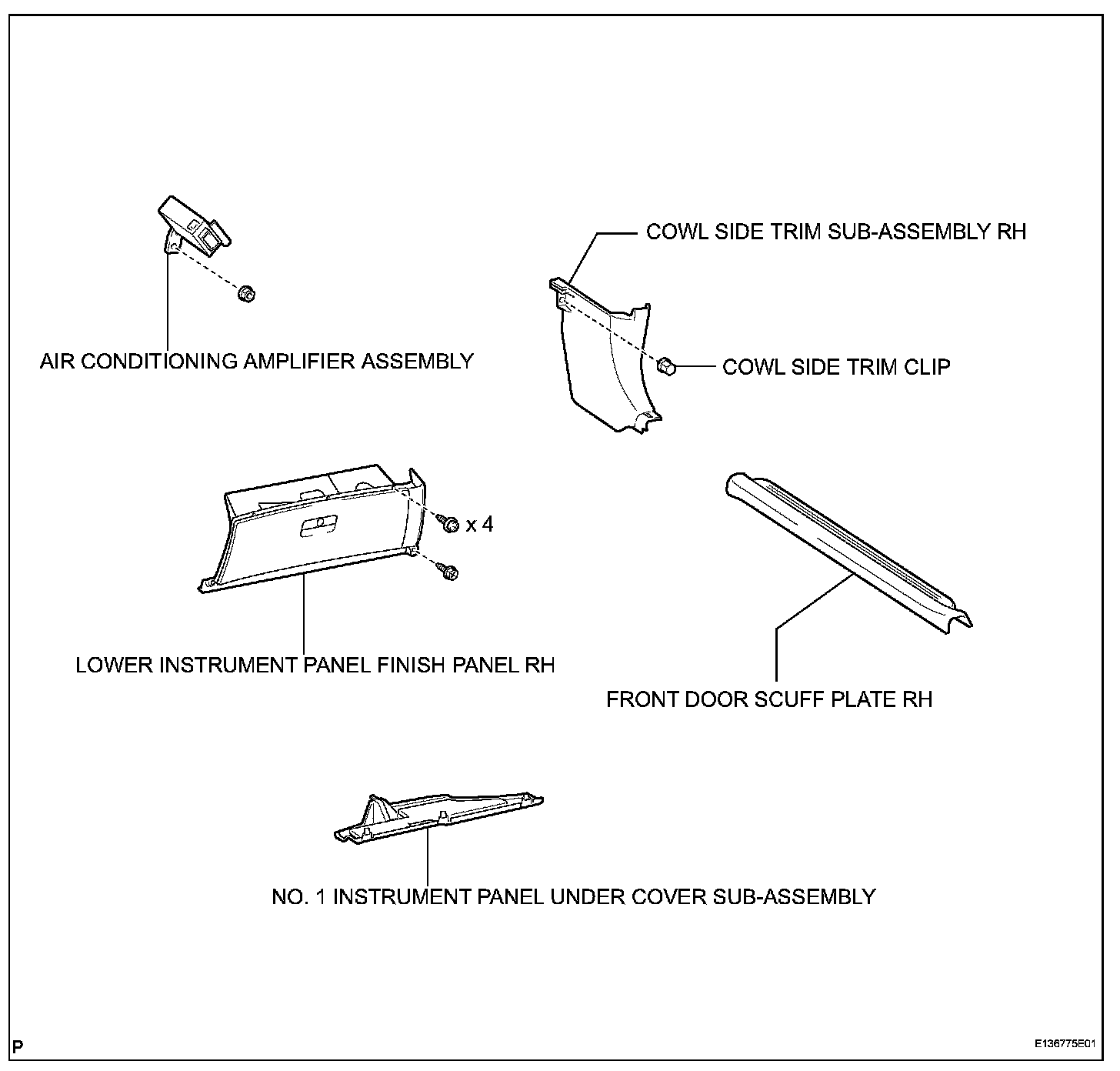

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE RH (for Coupe)
2. REMOVE FRONT DOOR SCUFF PLATE RH (for Convertible)
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (for Coupe)
4. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (for Convertible)
5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH
7. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY




a. Disconnect the connector.
b. Remove the nut and the air conditioning amplifier assembly.

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY




a. Install the air conditioning amplifier assembly with the nut.
b. Connect the connector.

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH
3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (for Coupe)
5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (for Convertible)
6. INSTALL FRONT DOOR SCUFF PLATE RH (for Coupe)
7. INSTALL FRONT DOOR SCUFF PLATE RH (for Convertible)
