Instrument Panel, Gauges and Warning Indicators: Description and Operation

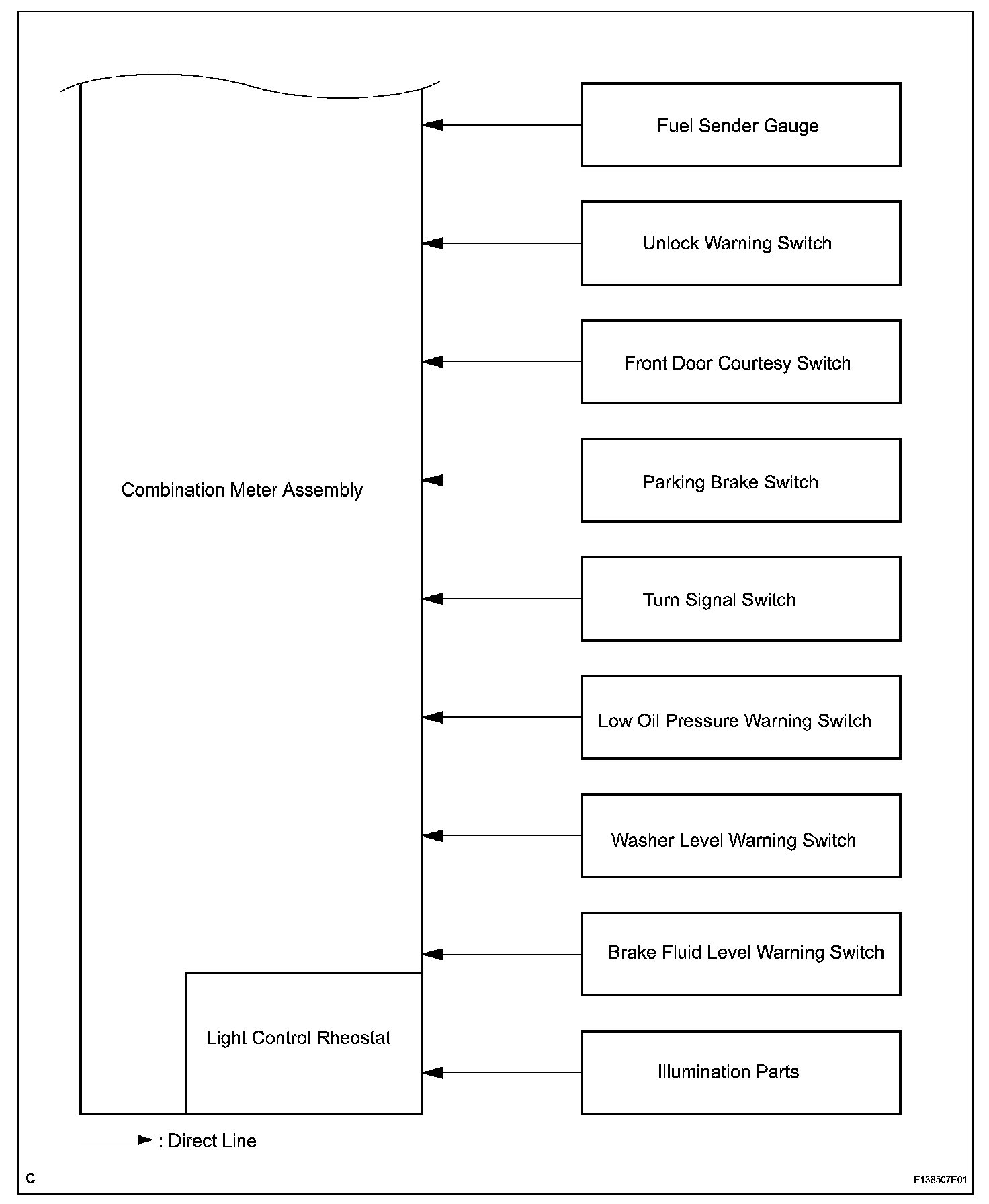

System Diagram (Part 1):

System Diagram (Part 2):

System Diagram (Part 3):

System Diagram (Part 4):

SYSTEM DIAGRAM

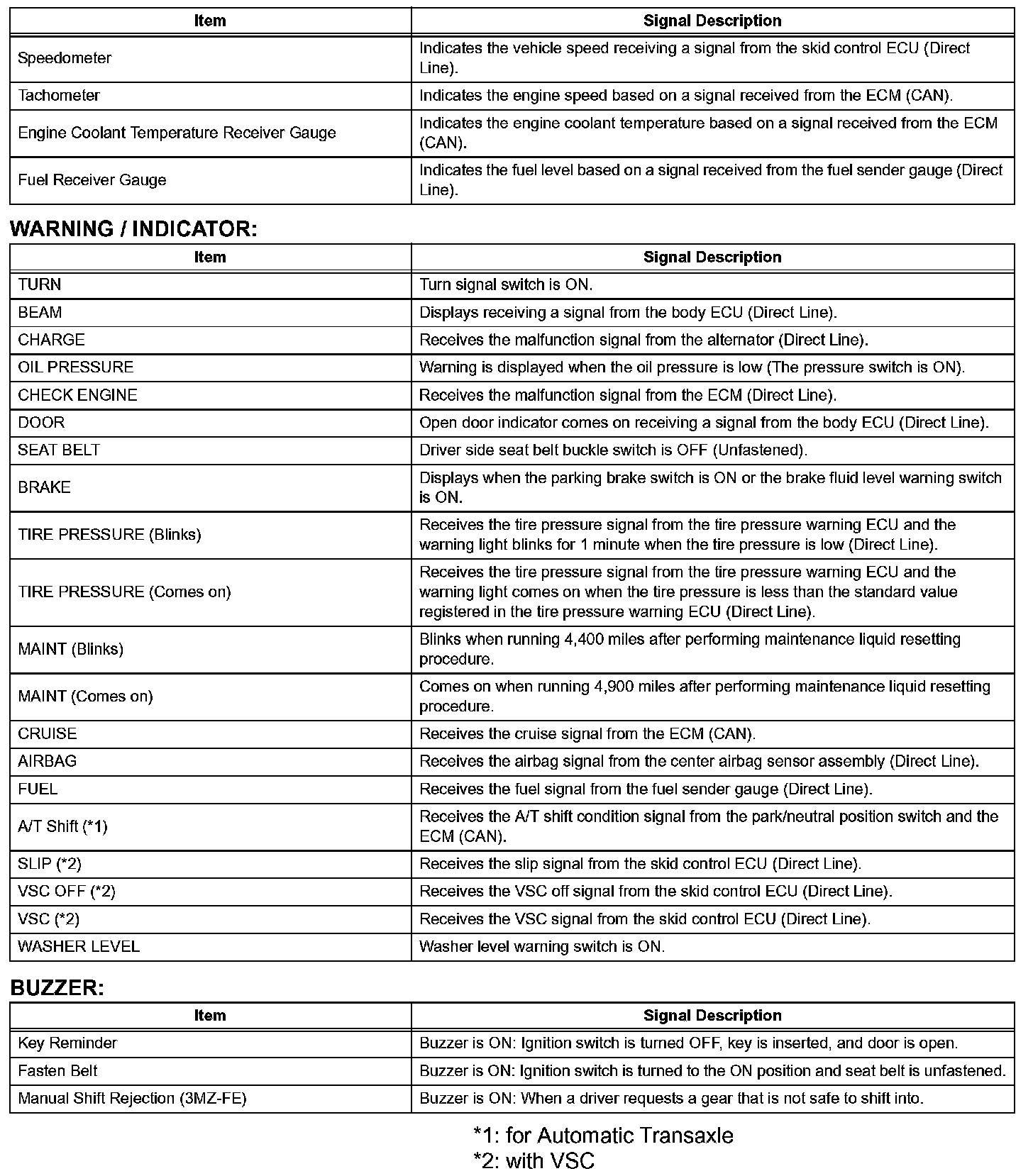

SYSTEM DESCRIPTION




1. METER GAUGE:
2. THE COMBINATION METER IN CAMRY SOLARA HAS THE FOLLOWING FEATURES:

a. Built-in buzzer for the reminder system (light, key, and seat belt)
b. Integrated rheostat, trip and odometer knobs.

- Rotate knob to adjust interior illumination.
- Press and release knob to scroll through trip "A", trip "B", and odometer features.
- Press and hold the trip knob to reset trip meter functions.

c. Oil maintenance indicator

- 4,500 miles after performing maintenance liquid resetting procedure, the maintenance indicator begins to blink for 15 seconds after the ignition switch is turned to the ON position.
- 5,000 miles after performing maintenance liquid resetting procedure, the maintenance indicator comes on.
- Press and hold the trip knob to reset the oil maintenance indicator.

d. Clock (Multifunction display

- The followings are the features: Instant fuel consumption, Average fuel consumption, Distance to empty, Average speed, Elapsed time, Clock, Outside temperature.
- Press "H" and "M" buttons at the same time (within 240 ms of each other) to switch between Fahrenheit/mph and Celsius/km/h.
- Press and release the "DISP" switch on the steering wheel to scroll through trip computer functions.
- Press and hold the "DISP" switch on the steering wheel for 0.6 seconds or more to reset the stored values.
