Instrument Cluster / Carrier: Service and Repair

Combination Meter:

Combination Meter

REMOVAL

1. REMOVE LOWER INSTRUMENT CLUSTER FINISH PANEL
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
4. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
6. REMOVE COMBINATION METER ASSEMBLY

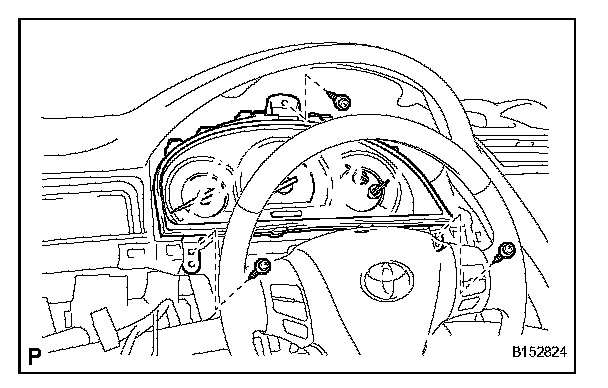

a. Remove the 3 screws.
b. Pull out the combination meter assembly, then disconnect the connectors.

7. REMOVE COMBINATION METER GLASS




a. Disengage the 8 claws and remove the combination meter glass.

INSTALLATION

1. INSTALL COMBINATION METER GLASS
2. INSTALL COMBINATION METER ASSEMBLY
3. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
4. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
6. INSTALL INSTRUMENT PANEL FINISH PLATE
7. INSTALL LOWER INSTRUMENT CLUSTER FINISH PANEL
