License Plate Lamp: Service and Repair

Licence Plate Light Assembly:

Licence Plate Light Assembly:

Licence Plate Light Assembly

REMOVAL

HINT: Installation is in the reverse order of removal.

1. REMOVE REAR FLOOR FINISH PLATE
2. REMOVE LICENSE PLATE LIGHT ASSEMBLY




a. Disconnect the connector and grommet.




b. Using a screwdriver, disconnect the 2 license plate light assembly.

HINT: Tape the screwdriver tip before use.

3. REMOVE LICENSE PLATE LIGHT LENS




a. Remove the 2 license plate light lenses as shown in the illustration.

4. REMOVE LICENSE PLATE LIGHT BULB

a. Remove the 2 license plate light bulbs.

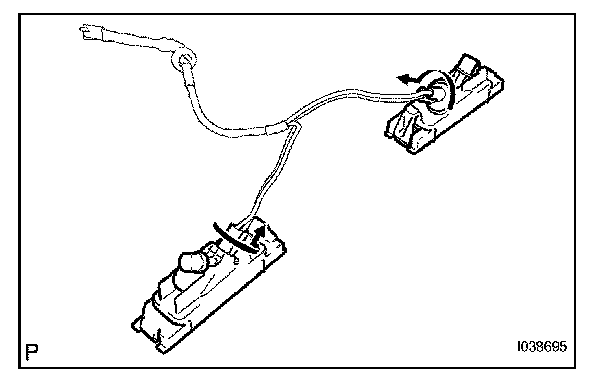

5. REMOVE LICENSE PLATE LIGHT SOCKET AND WIRE

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT SOCKET AND WIRE
2. INSTALL LICENSE PLATE LIGHT BULB
3. INSTALL LICENSE PLATE LIGHT LENS
4. INSTALL LICENSE PLATE LIGHT ASSEMBLY
5. INSTALL REAR FLOOR FINISH PLATE
