Drive Belt: Service and Repair

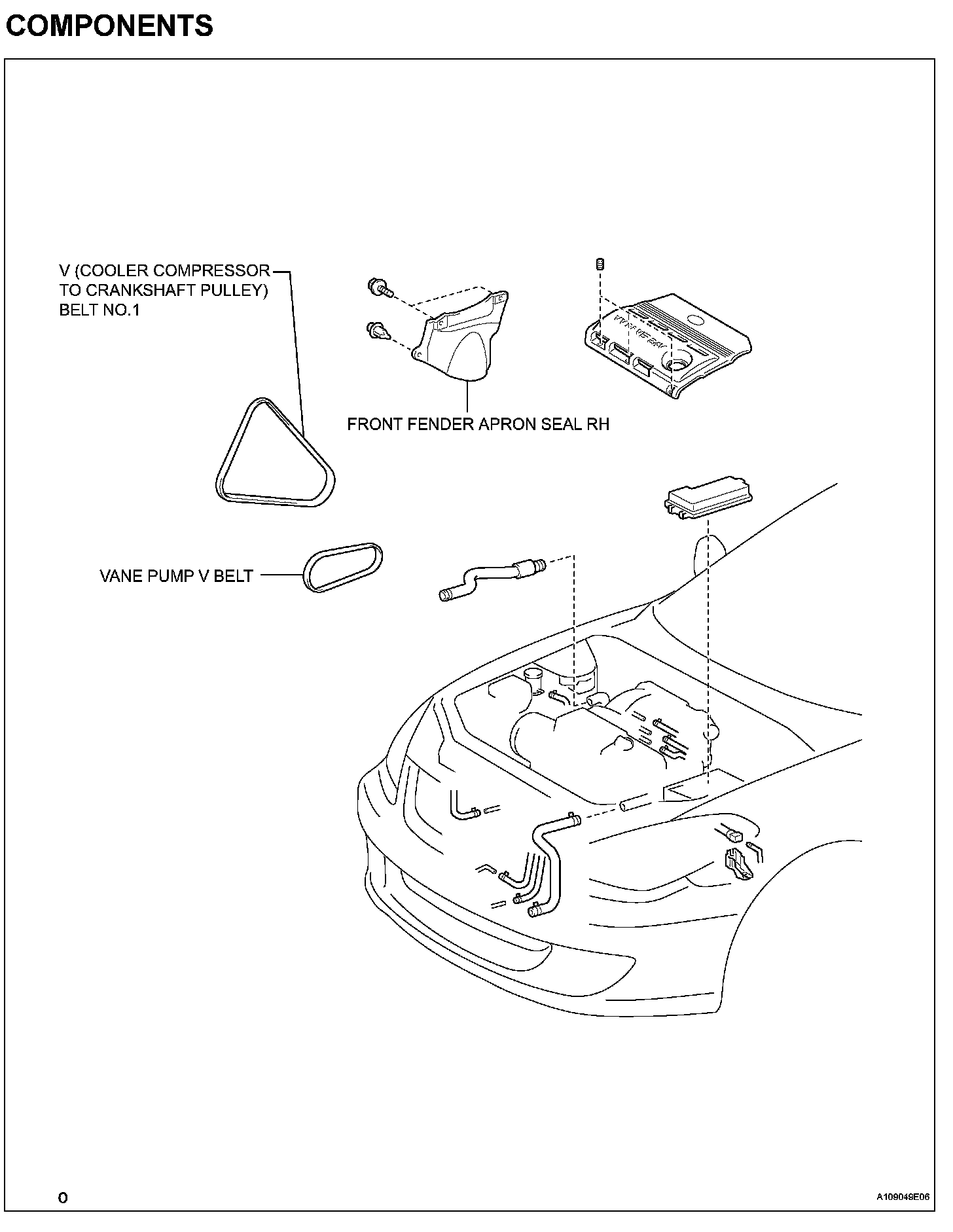

DRIVE BELTCOMPONENTS:
REMOVAL
1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER APRON SEAL RH

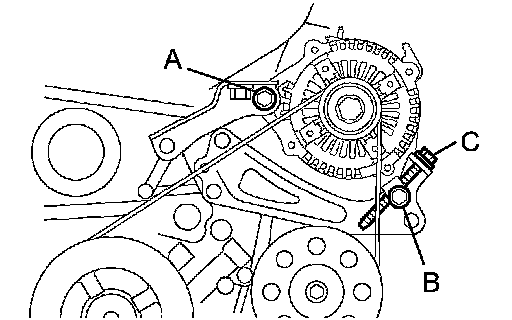

3. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(a) Loosen bolts A and B.
(b) Loosen adjusting bolt C and remove the belt.

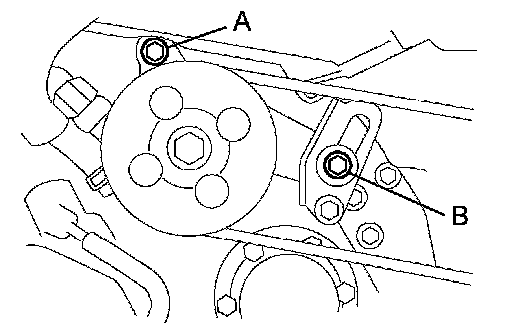

4. REMOVE VANE PUMP V BELT
(a) Loosen bolts A and B, and remove the belt.
INSTALLATION
1. INSTALL VANE PUMP V BELT
(a) Install the belt on each pulley.
(b) Using a bar, adjust the belt tension and tighten bolt B.
Torque: 43 Nm (439 kgf-cm, 32 ft. lbs.)
(c) Tighten bolt A.
Torque: 43 Nm (439 kgf-cm, 32 ft. lbs.)
2. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(a) Install the belt on each pulley.
(b) Tighten adjusting bolt C, and adjust the belt tension.
(c) First tighten bolt A, then bolt B.
Torque:
Bolt A
58 Nm (591 kgf-cm, 43 ft. lbs.)
Bolt B
18 Nm (184 kgf-cm, 13 ft. lbs.)
3. INSTALL FRONT FENDER APRON SEAL RH
4. INSTALL FRONT WHEEL RH
