Alignment

FRONT WHEEL ALIGNMENT

Vehicle Height

Vehicle Height:

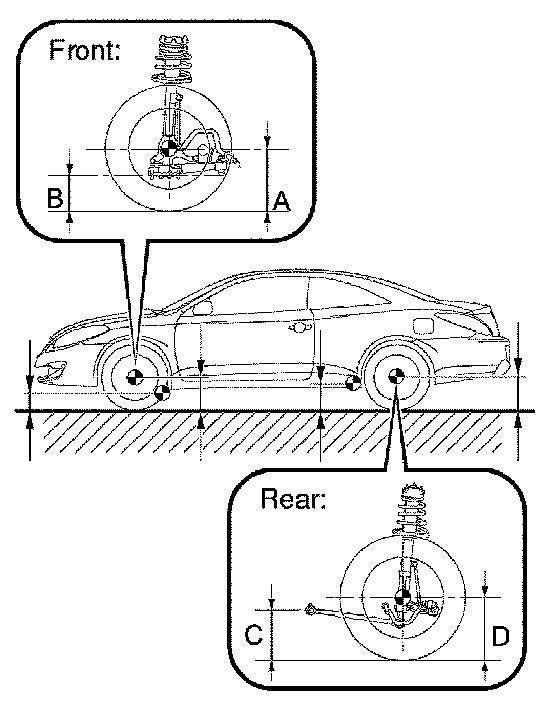

Measuring points:
A: Ground clearance of front wheel center
B: Ground clearance of front suspension arm subassembly lower No. 2 set bolt head center
C: Ground clearance of strut rod set bolt center
D: Ground clearance of rear wheel center

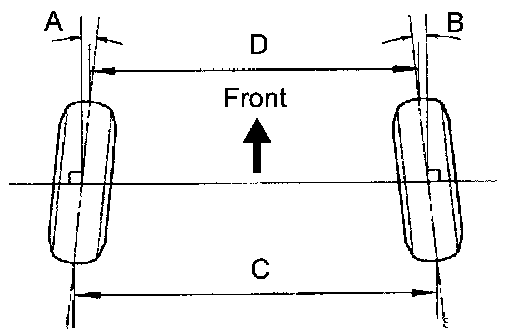

Toe-In

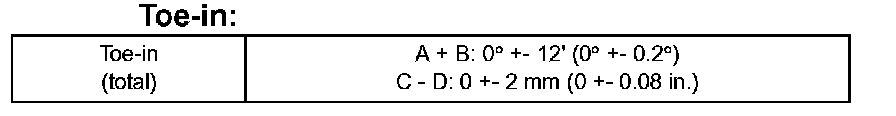

Toe-in:

HINT:
- Measure "C - D" only when "A + B" cannot be measured.
- If toe-in is not within the specified range, adjust it at the rack ends.

Wheel Angle

Wheel Turning Angle (Part 1):

Wheel Turning Angle (Part 2):

Wheel Turning Angle (Part 3):

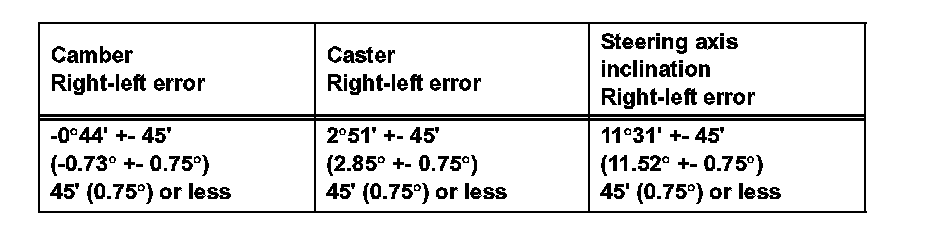

Camber, Caster And Steering Axis Inclination

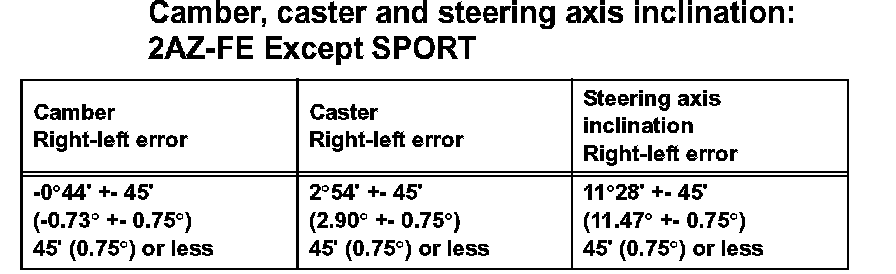

Camber, Caster and Steering Axis Inclination - 2AZ-FE Except SPORT:

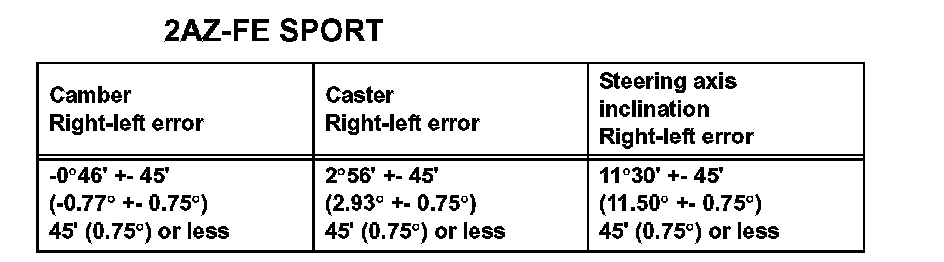

Camber, Caster and Steering Axis Inclination - 2AZ-FE SPORT:

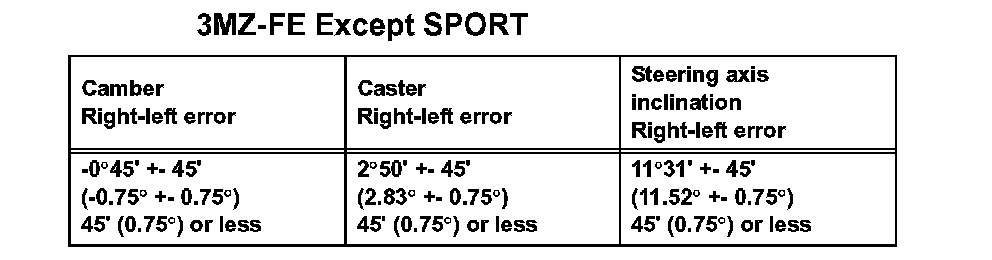

Camber, Caster and Steering Axis Inclination - 3MZ-FE Except SPORT:

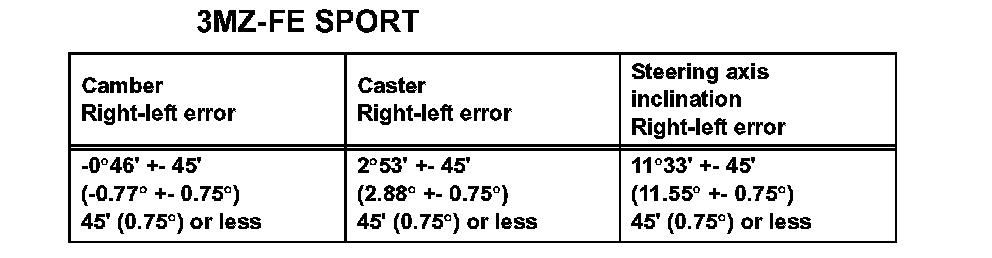

Camber, Caster and Steering Axis Inclination - 3MZ-FE SPORT:

Camber, Caster and Steering Axis Inclination - CONVERTIBLE:

REAR WHEEL ALIGNMENT

Toe-In

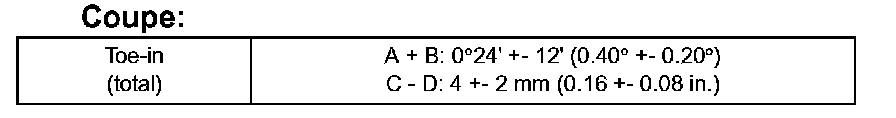

Coupe:

Convertible:

HINT:
- Measure "C - D" only when "A + B" cannot be measured.
- If toe-in is not within the specified range, inspect the suspension parts and replace them if necessary.

Camber

Coupe (Sport Pack):

Coupe (Except Sport Pack):

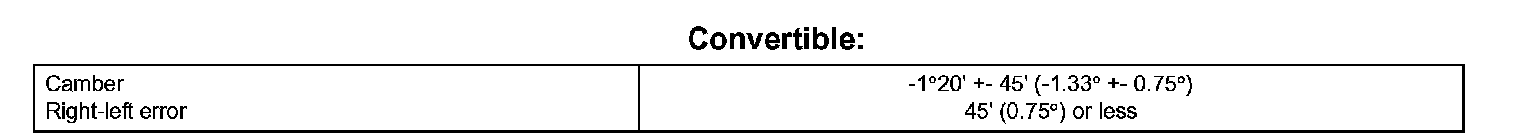

Convertible:

HINT: Camber is not adjustable. If the measurement is not within the specification, inspect the suspension parts for damage and/or wear, and replace them if necessary.
