Canada - A/T - Reman A/T Serial Number Location

Bulletin
2643

Issue Date
January 12, 2007

Market
Canada

Title:
REMANUFACTURED AUTOMATIC TRANSMISSION SERIAL NUMBER LOCATION

Component
AUTOMATIC TRANSMISSION

Models
All '06 - '07 Toyota

INTRODUCTION:
The purpose of this TSB is to assist in the identification and location of serial numbers on 2006 - 2007 model year remanufactured automatic transmissions.

APPLICABLE VEHICLES:
- 2006 - 2007 model year vehicles.







WARRANTY INFORMATION:

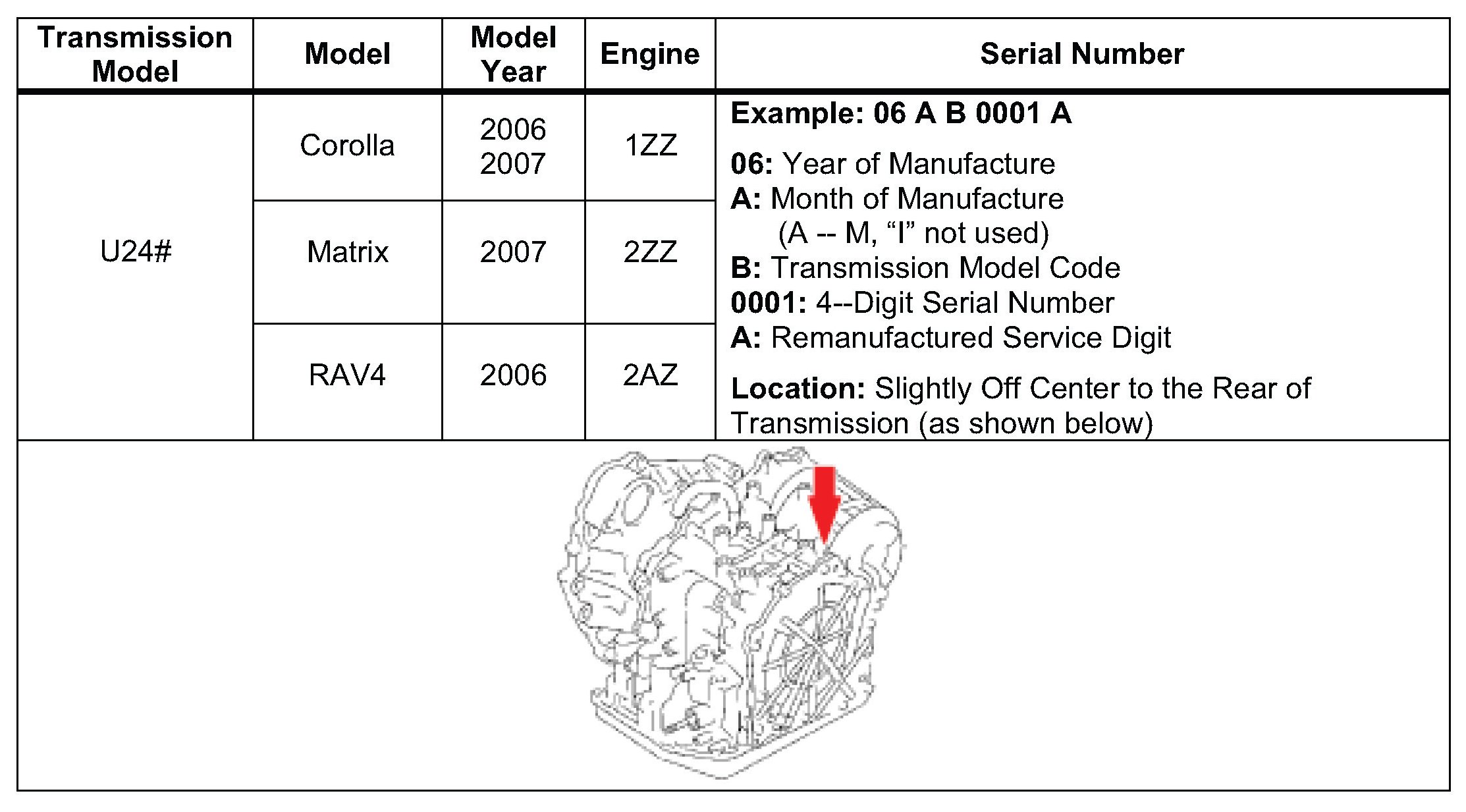

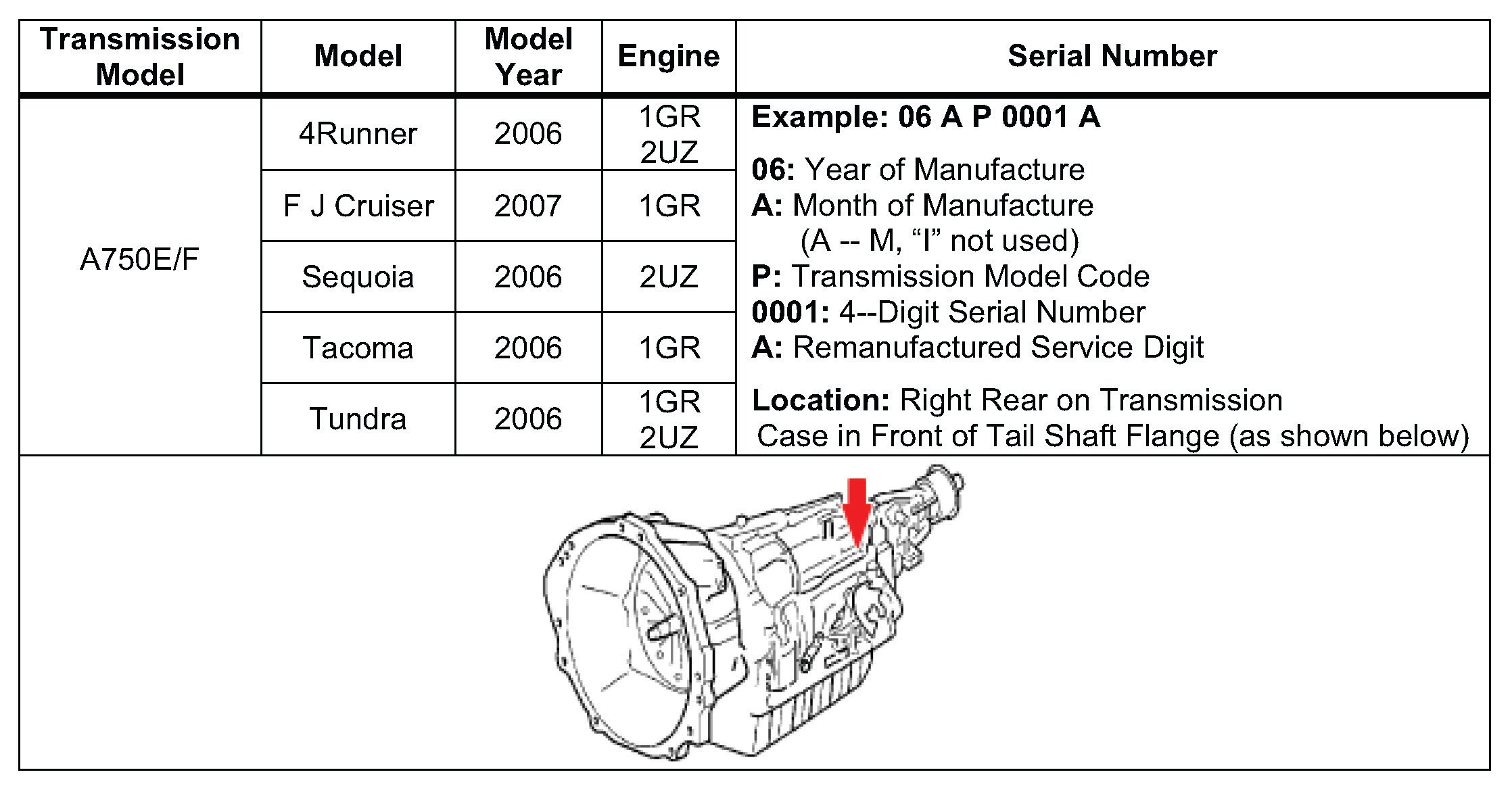

IDENTIFICATION PROCEDURE:























NOTE:
Serial numbers on remanufactured transmissions are highlighted with paint.
