Canada - Navigation System - Shows Vehicle in Wrong Location

Bulletin
TSB2672R

Issue Date
November 23, 2006

Market
Canada

Title
NAVIGATION SYSTEM SHOWS VEHICLE IN WRONG LOCATION

Component
BODY ELECTRICAL

Models
'06 -- '07 Sienna & '07 Camry, Camry HV, & Solara

TSB REVISION NOTICE:
- January 03, 2007: A note has been added to the Parts Information table.
Previous versions of this TSB should be discarded.

INTRODUCTION:

Some customers may experience a condition with their navigation system, where the vehicle icon is intermittently shown on the map in the wrong location. A special DVD map disc with a revised operating system has been developed to remedy this condition.

NOTE:
If the customer has purchased a Gen 5 update disc after November 1, 2006, then this TSB is NOT applicable.

APPLICABLE VEHICLES:
- 2006 -- 2007 model year Sienna vehicles equipped with the Toyota Navigation System produced BEFORE the Production Change Effective VINs in this TSB.
- 2007 model year Camry, Camry HV, and Solara vehicles equipped with the Toyota Navigation System produced BEFORE the Production Change Effective VINs in this TSB.

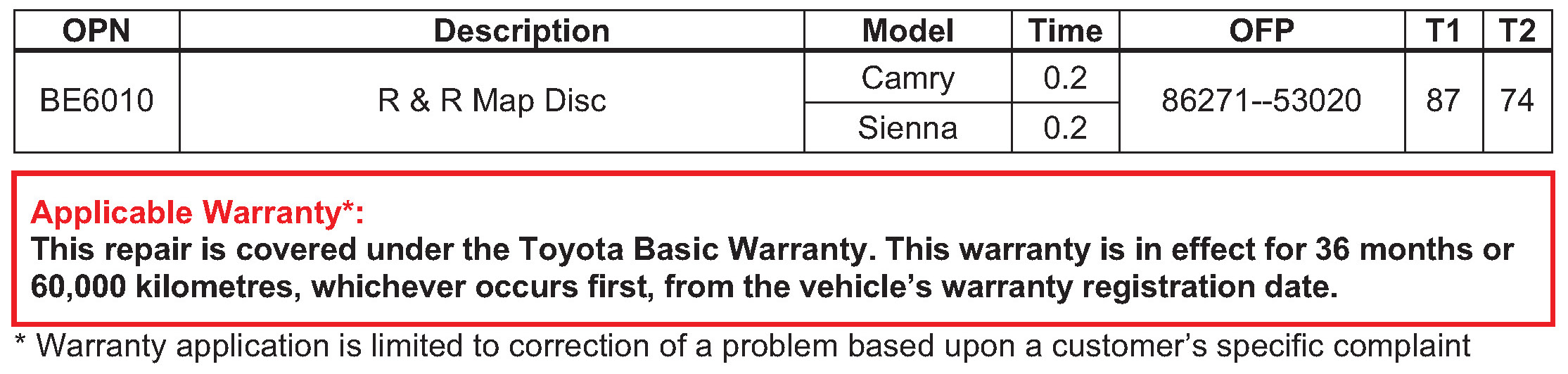

WARRANTY INFORMATION:






PRODUCTION CHANGE INFORMATION:






PARTS INFORMATION:

NOTE:
The navigation map disc MUST be ordered through the Denso Exchange Program to qualify for warranty coverage.

IDENTIFICATION METHOD:

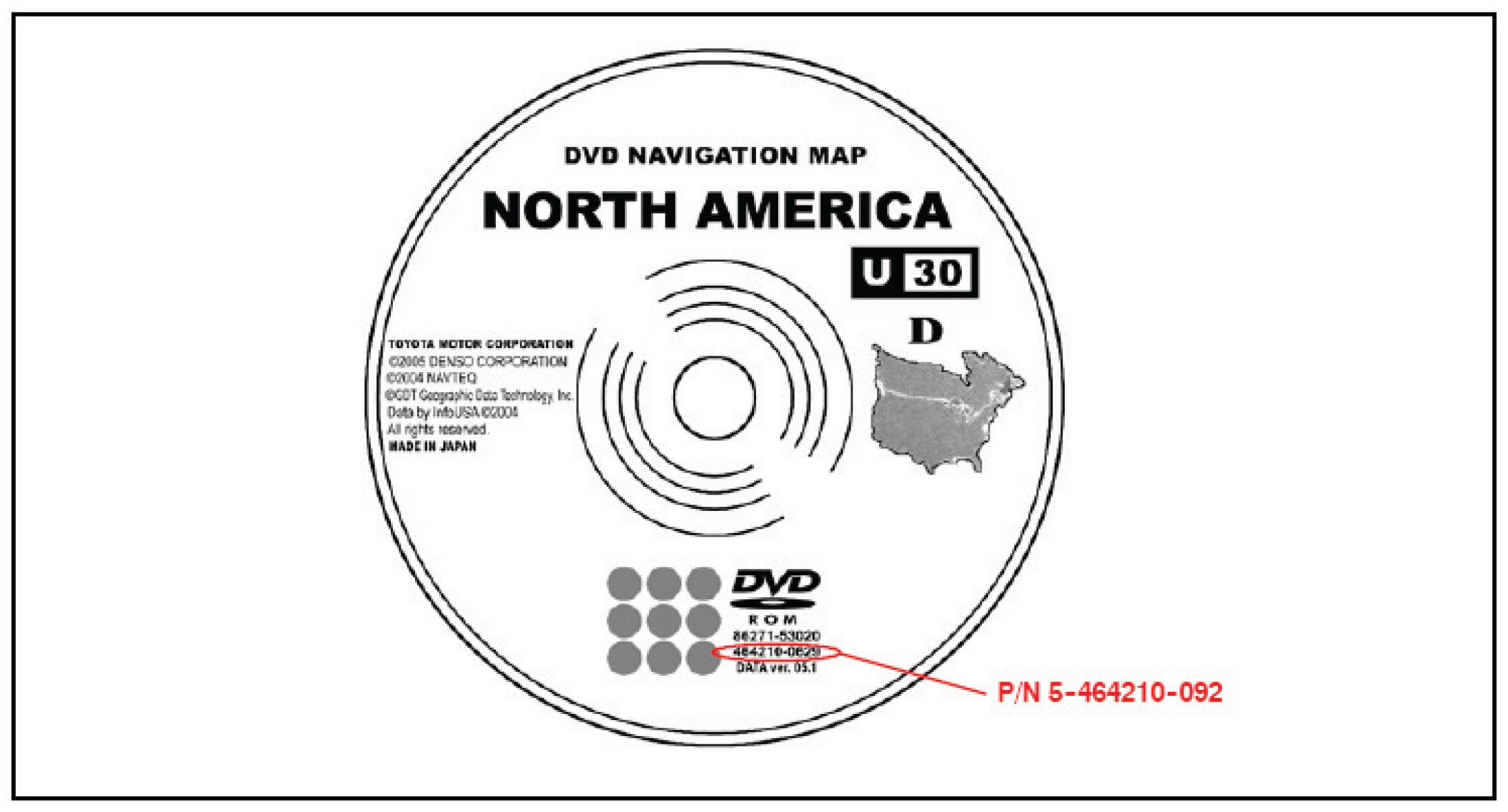

The map disc supplier part number changed to 5--464210--092. Refer to the illustration to locate the supplier's part number (directly below the OEM part number):

REPAIR PROCEDURE:

1. Order a map disc through DENSO by faxing the Navigation System Information Form located to 905-890-8474.
When ordering this special map disc make sure to provide DENSO with the TSB number of this bulletin, the vehicle information and your dealer code.

2. Replace the navigation map disc.
Refer to ETAS, 2006 or 2007 model year applicable vehicle Owner's Manual: Navigation: Appendix.







3. Cut the original navigation map disc in half and dispose of it.
